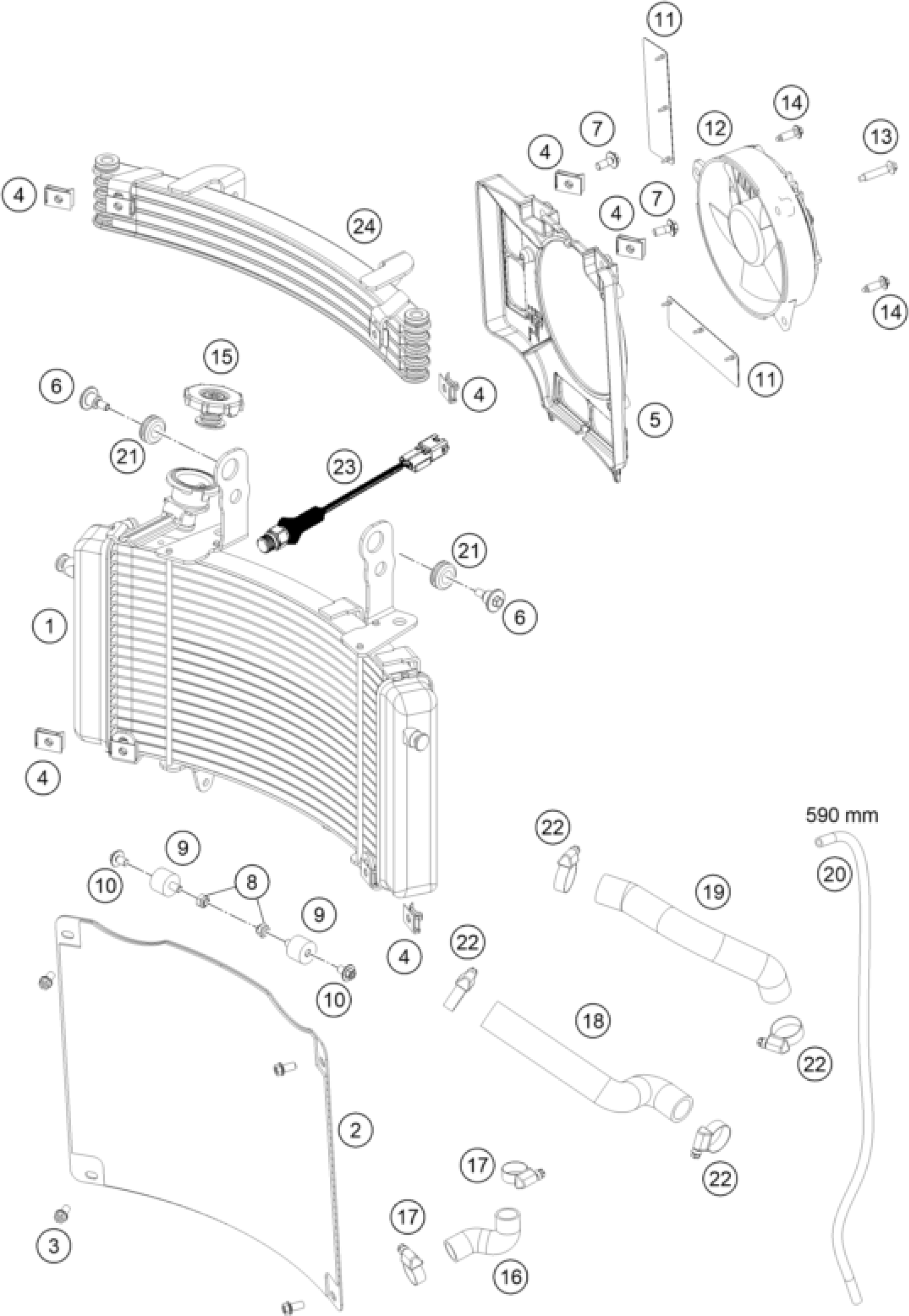

KTM 450 RALLY FACTORY REPLICA 2015 COOLING SYSTEM Diagram

#

Description
Price

13

Special screw K60X30 WS=6

0017060305

$2.05

14

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

16

RADIATOR HOSE

76435026002

Unavailable

17

HOSE CLAMP NORMA 14/24

42013037400

$2.05

18

RADIATOR HOSE

76435026000

Unavailable

19

RADIATOR HOSE

76435026001

Unavailable

20

Hose 5x8mm

58507007001

$83.11

7

HH collar screw M6x15 TX30

0024060156

$3.08

8

Self lock. nut DIN985-M6-A2

0985060003

$2.05

9

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

11

FAN CLACK RUBBER 08

62635044050

$8.03

12

FAN L/S 03

60035041000

$164.83

10

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

23

THERMOSWITCH 80-85 DG

76435045000

Unavailable

15

RADIATOTR CAP

76435009000

Unavailable

21

RUBBER SLEEVE D=12MM

41001052000

$4.11

22

HOSE CLAMP GEMI 18-29

10001020000

$2.05

6

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

24

OIL RADIATOR

76438051000

Unavailable

1

WATER RADIATOR

76435010000

Unavailable

2

RADIATOR PROTECTION CPL.

76435034044

Unavailable

3

HH collar screw M6x12 TX30

0025060126

$3.08

4

clip nut M6

54603048100

$4.11

5

FAN COVER

76435044000

Unavailable
