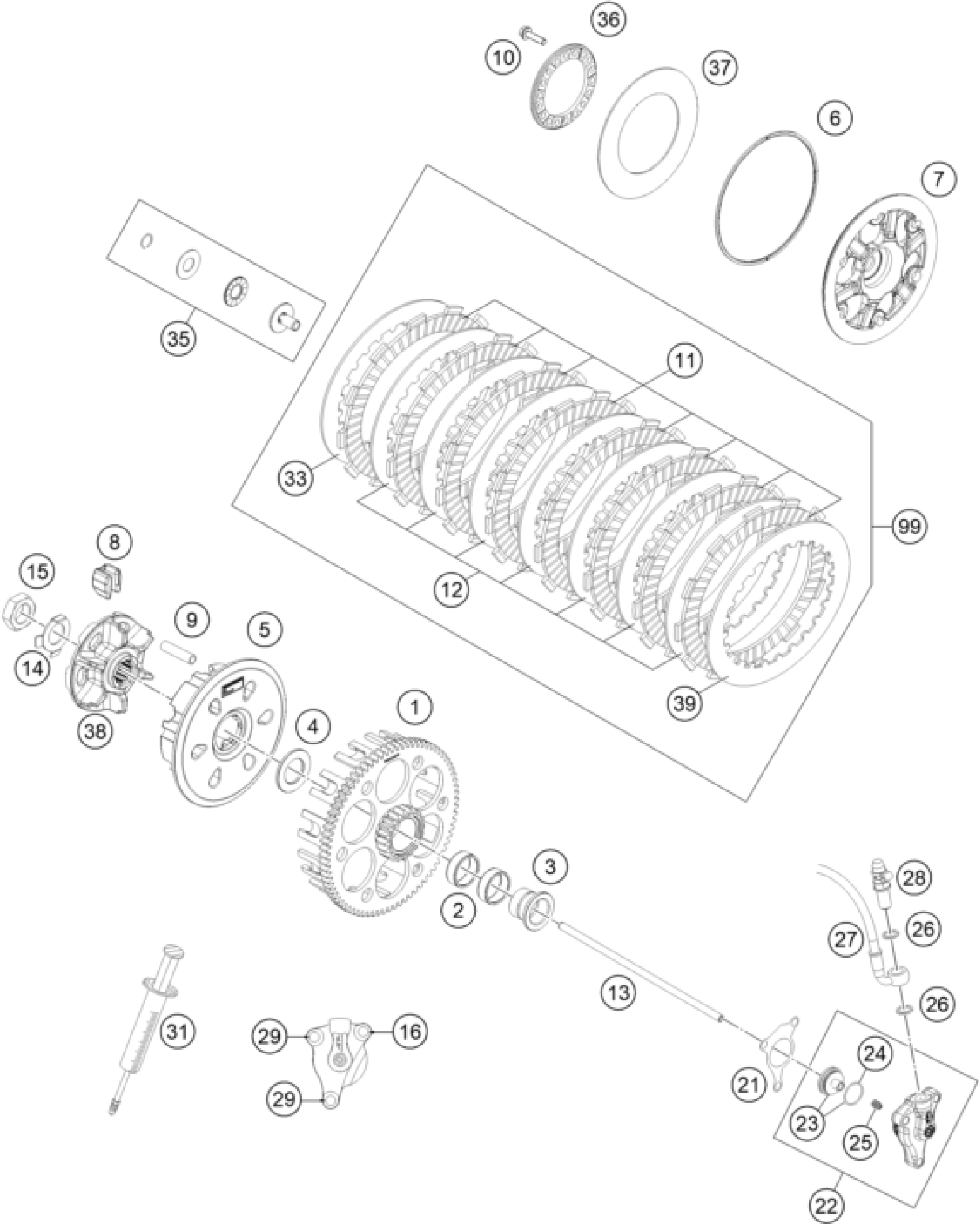

KTM 450 RALLY FACTORY REPLICA 2015 CLUTCH Diagram

#

Description
Price

3

COLLARSLEEVE

78132015100

$26.92

4

WASHER 22 X 36,5 X 3

78932009000

$7.75

5

CLUTCH HUB

78132002300

$134.72

6

WASHER 112X118X1.5

78132013000

$10.84

7

CLUTCH PRESSURE CAP

79432003000

$23.74

8

DAMPING RUBBER

78132025100

$4.11

9

DRIVING SLEEVE D=7,95 L=38

77232004000

$3.08

10

HH collar screw M5x20 TX30

0025050206

$2.05

11

LINING DISC 2MM 04

59032011100

$22.43

12

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

13

PUSH ROD

78132054100

$11.59

14

TAB WASHER

78132018000

$5.88

15

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

16

HH collar screw M6x30 TX30

0025060306

$3.08

21

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

22

OUTPUT CYLINDER CPL. 06

54832061044

$137.44

23

PISTON CPL.

54832066000

$68.43

24

O-RING

54832067000

$3.08

25

PRESSURE SPRING

54832069000

$12.05

26

sealing ring DIN 7603 10x14x1

0603100141

$2.05

27

CLUTCH PIPE

78132063000

$107.14

28

BLEEDER SCREW CPL. 05

62513020000

$27.48

29

HH collar screw M6x20 TX30

0025060206

$3.08

31

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

33

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

35

PRESSURE PIECE CPL.

78132057144

$30.75

36

SPRING RING

78132006100

$10.84

37

CLUTCH SPRING ''300Nm''

76432005000

$76.10

38

HUB

78132002111

$134.72

39

INTERMEDIATE DISC 1MM

78932010000

$12.05

99

CLUTCH DISC KIT

78932010033

$209.15

1

CLUTCH CAGE

78132001076

$353.23

2

NEEDLE BEAR K 25X29X10

0405252910

$8.87
