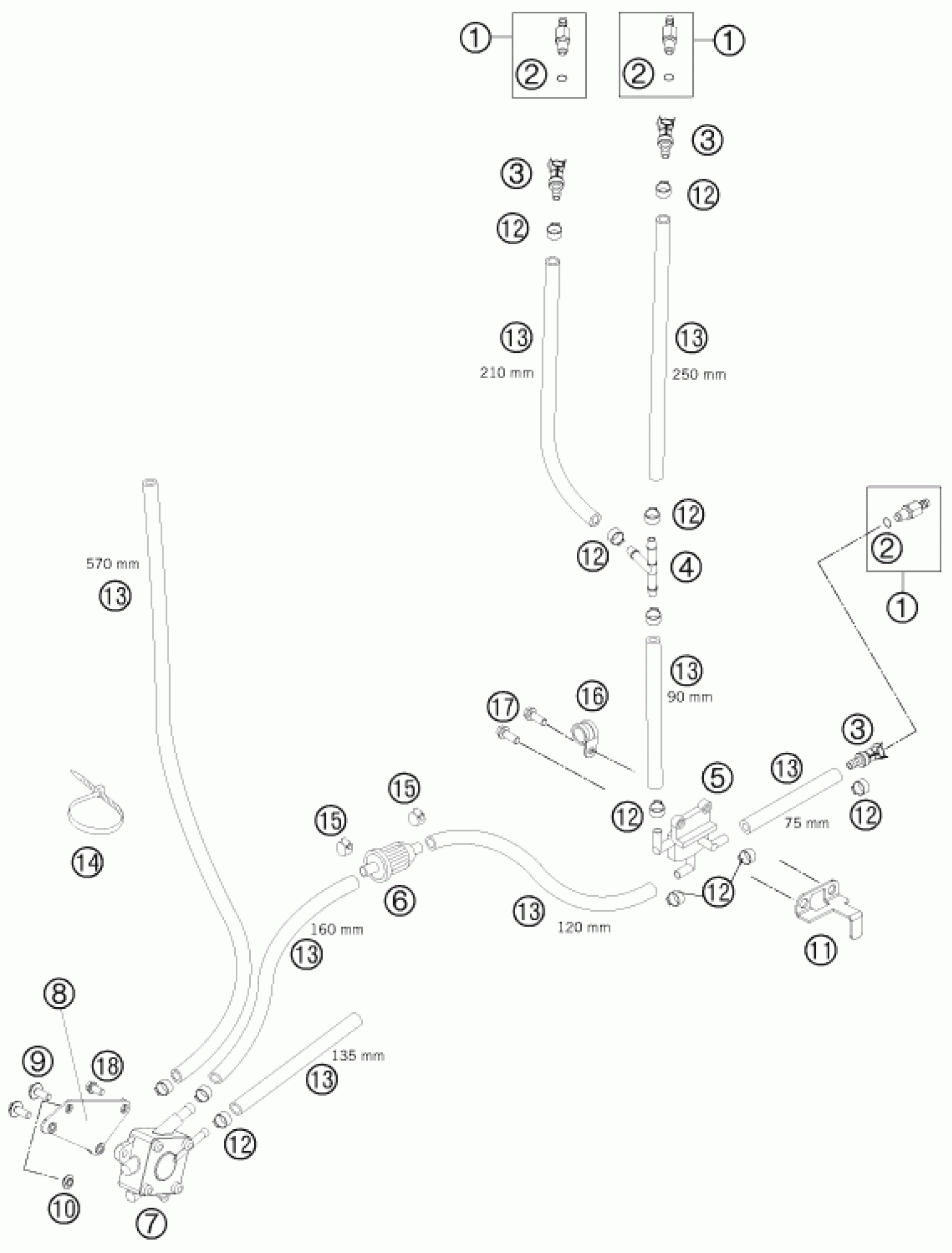

KTM 450 RALLY FACTORY REPLICA 2014 FUEL PUMP Diagram

#

Description
Price

1

Plug CPC black 05

5850701030030

$43.28

2

O-ring VITON f. plug CPC 0

58507012000

$6.26

3

Clutch CPC PLCD17005, black

5850701050030

$55.90

4

T-CONNECTOR FOR FUEL LINE

58007015000

$1.49

5

COLLECTOR FUEL TAP RALLYE 2001

58507003100

Unavailable

6

FUEL FILTER ELEMENT RALLY

76207099050

Unavailable

7

FUEL PUMP MIKUNI DF52-601 01

58512087000

$136.97

8

PLATE FOR FUEL PUMP CPL.

76307013011

Unavailable

9

HH collar screw M6x15 TX30

0024060156

$3.08

10

SPACER BUSHING

76307013012

Unavailable

11

LOCK PLATE COLLECTOR FUEL TAP

76307003060

Unavailable

12

OETIKER HOSE CLAMP 13,3MM

58007117200

$3.08

13

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

14

Cable tie 200/4.6mm black

44011076200

$1.49

15

CLAMP MINI

76207037000

Unavailable

16

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

17

HH collar screw M6x13 TX30

0024060136

$3.08

18

HH collar screw M6x12 TX30

0025060126

$3.08
