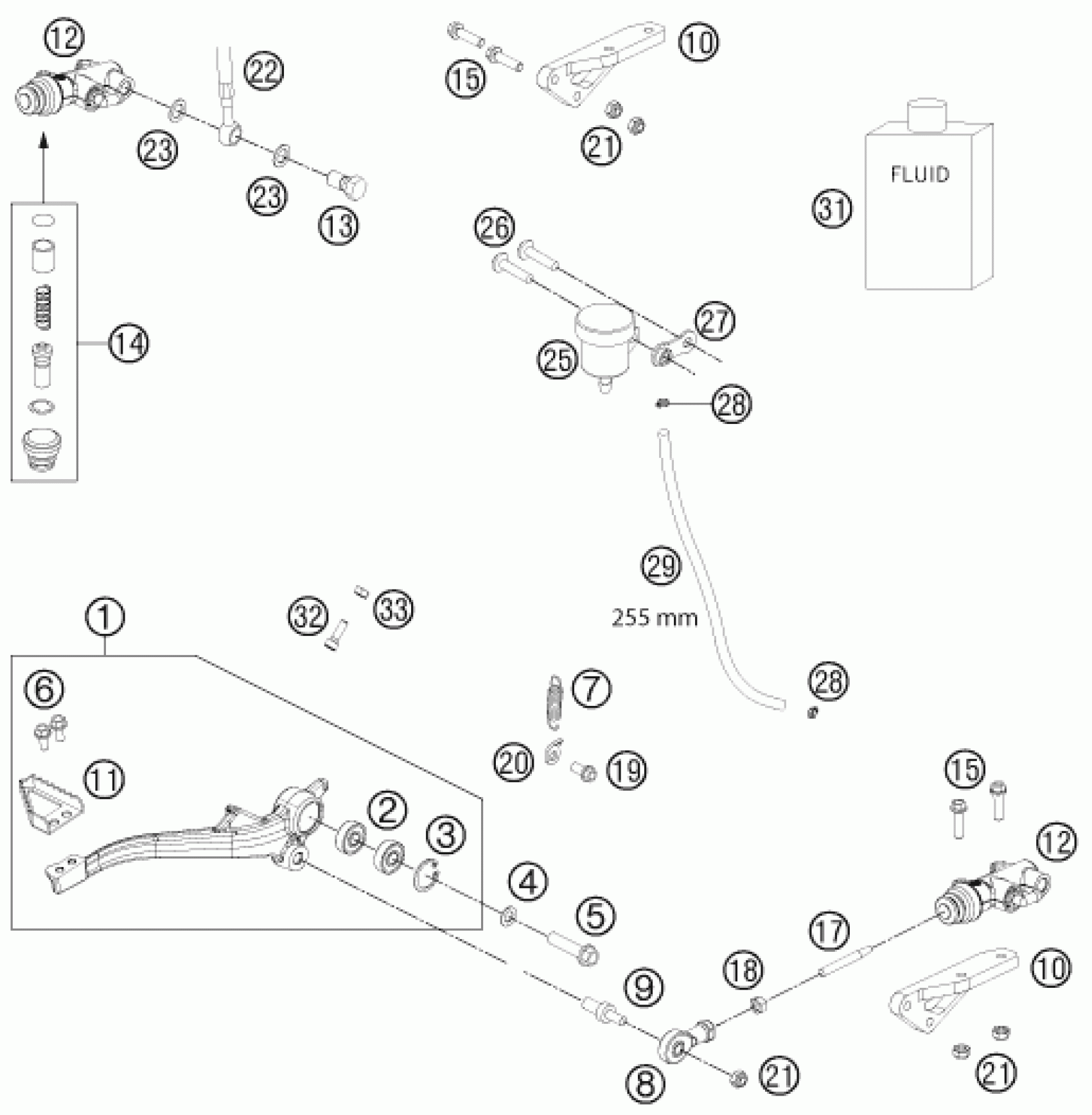

KTM 450 RALLY FACTORY REPLICA <2011> REAR BRAKE CONTROL Diagram

#

Description
Price

1

FOOT BRAKE LEVER CPL. 08

76213050044

Unavailable

2

Grooved ball bearing 608 2RS C

0625006087

$21.40

3

CIRCLIP DIN0472-22X1

0472022100

$2.05

4

LOCK WASHER 8MM

36003014000

$2.05

5

HH collar screw M8x25

0025080256

$2.05

6

HH collar screw M5x12 TX30

0025050126

$3.08

7

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

8

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

9

BRAKE LEVER AXLE RALLY 2001

58503060050

Unavailable

10

ADAPTER REAR MAIN BRAKE CYL.

76203045000

Unavailable

11

BRAKE LEVER PEDAL LARGE RALLY

76213051010

Unavailable

12

FOOT BRAKE CYLINDER REAR

76213060000

Unavailable

13

banjo bolt M10x1x19 black

54813020100

$9.90

14

REPAIR KIT PISTON 13MM

54513150000

$46.46

15

HH collar screw M6x25 TX30

0025060256

$3.08

17

PUSH ROD MAIN BRAKE CYLINDER

76203068000

Unavailable

18

Hex. nut DIN 934 M6

0934060003

$1.49

19

HH collar screw M6x10 TX30

0025060106

$3.08

20

RETAINING PLATE

51005074000

$3.08

21

Self lock. nut DIN985-M6-A2

0985060003

$2.05

22

BRAKE HOSE REAR

76213070000

Unavailable

23

sealing ring DIN 7603 10x14x1

0603100141

$2.05

25

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

26

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

27

RETAINING PLATE F. NUMBER PL.

45208007050

$5.23

28

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

29

HOSE FOR BRAKE FLUID RESERVOIR

76213061000

Unavailable

31

Brake fluid DOT5.1 0,25L

00062030000

$12.52

32

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

33

HEXAGON NUT DIN0934-M 5

0934050003

$2.05
