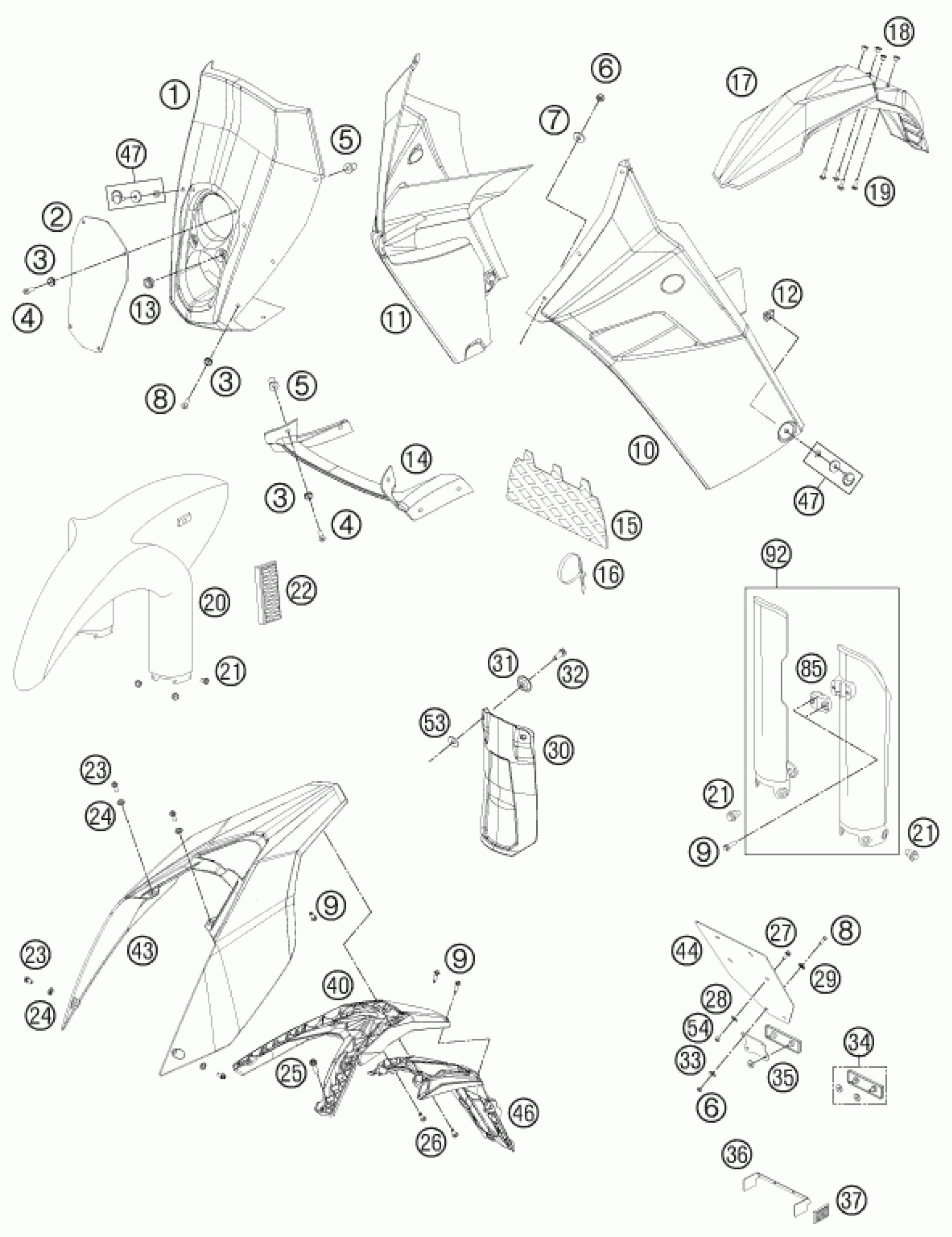

KTM 450 RALLY FACTORY REPLICA <2011> MASK, FENDERS Diagram

#

Description
Price

53

Washer DIN9021-A 6.4

0021060003

$2.05

23

HH collar screw M6x12 TX30

0025060126

$3.08

24

COLLAR BUSHING

76508043050

$5.23

25

HH collar screw M8x25

0025080256

$2.05

26

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

27

HH collar screw M6x15 TX30

0024060156

$3.08

28

WASHER DIN0125-A 6,4

0125060003

$1.49

29

WASHER 6MM

40006006000

$1.49

33

WASHER DIN0125-A 5,3

0125050003

$1.49

34

REFLECTOR RED

58412080000

$5.23

35

BRACKET FOR REFLECTOR

58412080050

$6.07

36

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

37

SIDE REFLECTOR RED REAR

16512180100

$7.10

16

CABLE TIE 200MM

76311093200

Unavailable

1

HEADLIGHT MASK WHITE 12

7621100400028A

Unavailable

2

HEADLIGHT PANE FRONT MASK

76214010020

Unavailable

3

SPECIAL WASHER D=12MM 03

60008046000

$4.11

4

O.H.SCREW DIN0966-M 5X20 BLACK

0966050208

$2.05

5

blind plug nut M5 WN16A

60008008050

$3.73

6

Self locking nut DIN 985 M5

0985050003

$2.05

7

washer DIN 9021 A - 5.3

0021050003

$1.49

8

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

9

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

10

FRONT MASK L/S WHITE 12

7631100300028A

Unavailable

11

FRONT MASK R/S WHITE 12

7631100200028A

Unavailable

12

Clip

45007040052

Unavailable

13

rubber grommet D=8mm open

31008060000

$2.05

14

AIR BAFFLE RALLY 11

7631100402028A

Unavailable

15

OIL RADIATOR GRID

76211004030

Unavailable

16

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

17

FENDER FRONT ORANGE 06

6300801000004

$33.17

18

COLLAR BUSHING

50213161000

$3.08

19

HH collar screw M6x20 TX30

0024060206

$3.08

20

FENDER FRONT BLACK

5850801020030

Unavailable

21

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

30

SPLASHBACK 08

76506010000

$10.46

31

BUCKET

72210079000

$3.00

32

HH collar screw M6x16 TX30

0025060166

$3.08

40

NUMBER PLATE CARRIER TOP 08

76508016000

Unavailable

44

license plate mouning plate

60012081200

$8.41

46

NUMBER PLATE LO. PART 08

76508016050

$13.08

47

Quick lock

45007040051

$20.19

54

Self lock. nut DIN985-M6-A2

0985060003

$2.05

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

$3.08

92

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20

22

REFLECTOR YELLOW '99

58412080100

$7.75

43

REAR PART WHITE

7650801300028

$93.12
