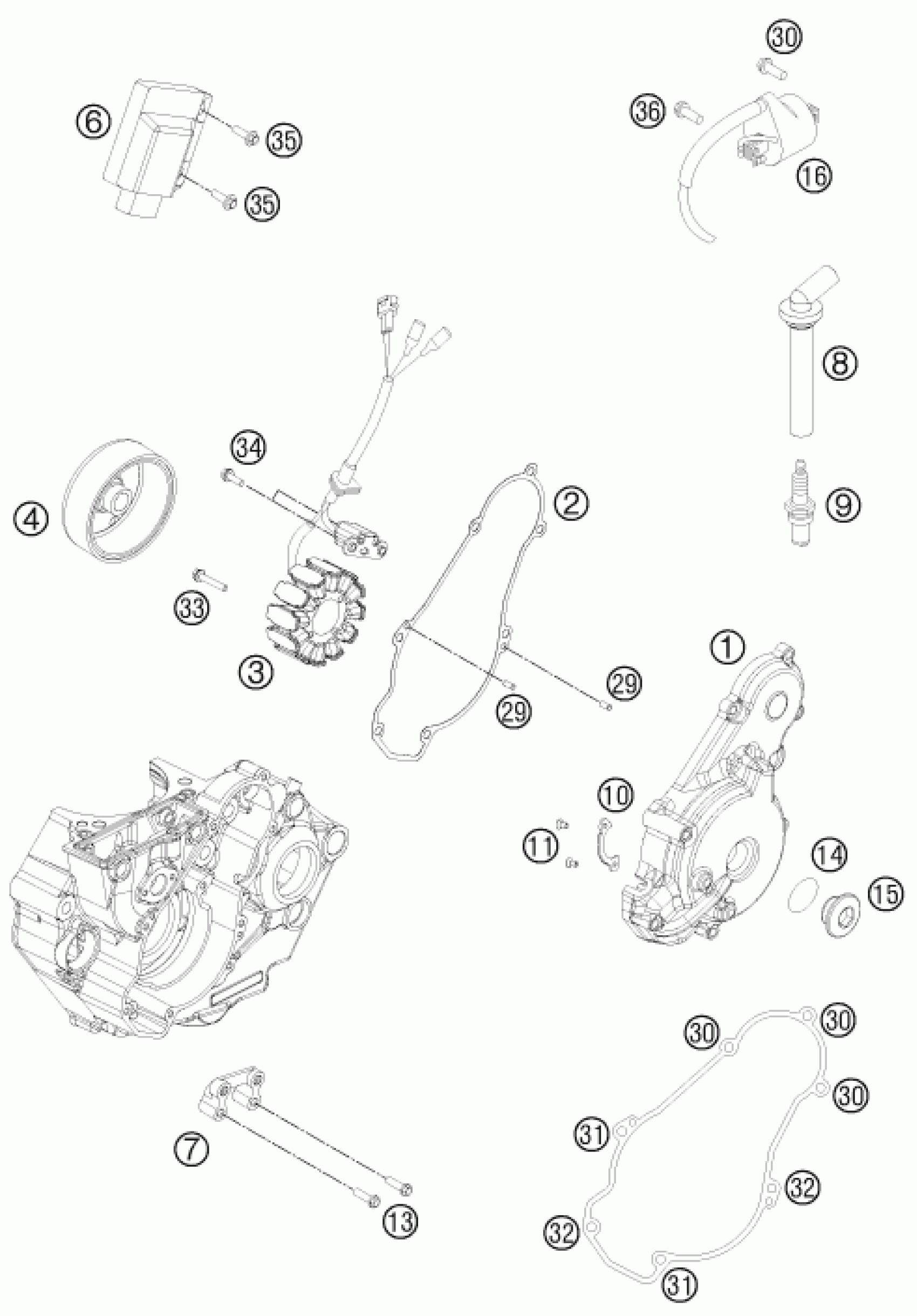

KTM 450 RALLY FACTORY REPLICA <2011> IGNITION SYSTEM Diagram

#

Description
Price

29

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

1

IGNITION COVER

76330002000

Unavailable

2

IGNITION COVER GASKET

77330040100

$8.41

3

STATOR

77539004000

$220.02

4

ROTOR

83039005000

$197.60

6

CDI UNIT KOKUSAN 450 RALLY 11

76339031000

Unavailable

7

ADAPTER PULSER COIL

77339035100M01

Unavailable

8

SPARK PLUG

77339090000

$39.73

9

SPARK PLUG NGK CR9EKB ´05

77039093000

$13.46

10

BUSHING RETAINING PLATE

77334090000

$4.11

11

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

13

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

14

o-ring 22.00X2.00 NBR70

0770220020

$2.05

15

FACTORY IGNITION COVER PLUG

7723000206004

Unavailable

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

36

HH collar screw M6x16 TX30

0025060166

$3.08

35

COLLAR SCREW M6X12 TX

0023060123

$2.05

30

HH collar screw M6x20 TX30

0025060206

$3.08

31

HH collar screw M6x55 TX30

0025060556

$3.08

32

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

33

HH COLLAR SCREW M5X30 TX30

0025050306

$2.05

34

HH collar screw M5x16 TX30

0025050166

$2.05
