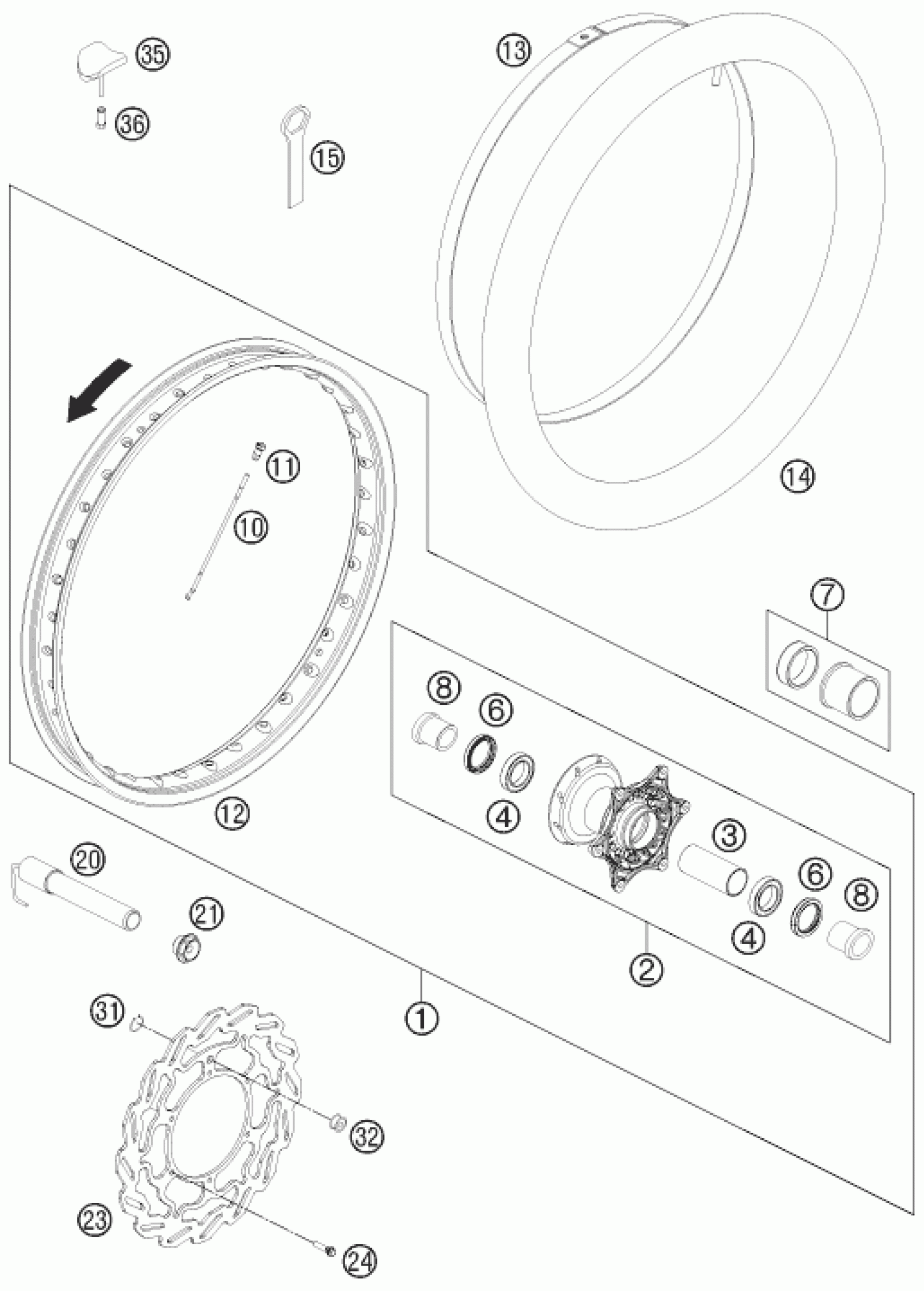

KTM 450 RALLY FACTORY REPLICA <2011> FRONT WHEEL Diagram

FRONTWHEEL CPL.1,6X21EXCEL 08

7730900114430

$567.69

FRONT WHEEL HUB CPL.

78009010144

$305.64

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

$25.70

Grooved ball bearing 6906

0625069068

$34.68

Radial shaft seal 35X47X7 TC

0760354771

$8.69

SPACER BUSHING FRO. WHEEL 30MM

76209013044

Unavailable

SPACER BUSHING F. FR. WHEEL 08

78009012000

$30.10

SPOKE M4,5x226-21'' 08

78009174226

$4.11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

$2.05

RIM 1,6''X21'' EXCEL SXS

7730907000030

$236.64

Tube protector 21"

50309073000

$10.09

Hose 21"

50309075000

$39.45

RING WRENCH 32MM

76212060032

Unavailable

FRONT AXLE D=30MM 04

58509081100

Unavailable

COLLAR SCREW FRONT AXLE WS32

76209082000

Unavailable

BRAKE DISC FRONT 07

58509060000

$351.27

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable
