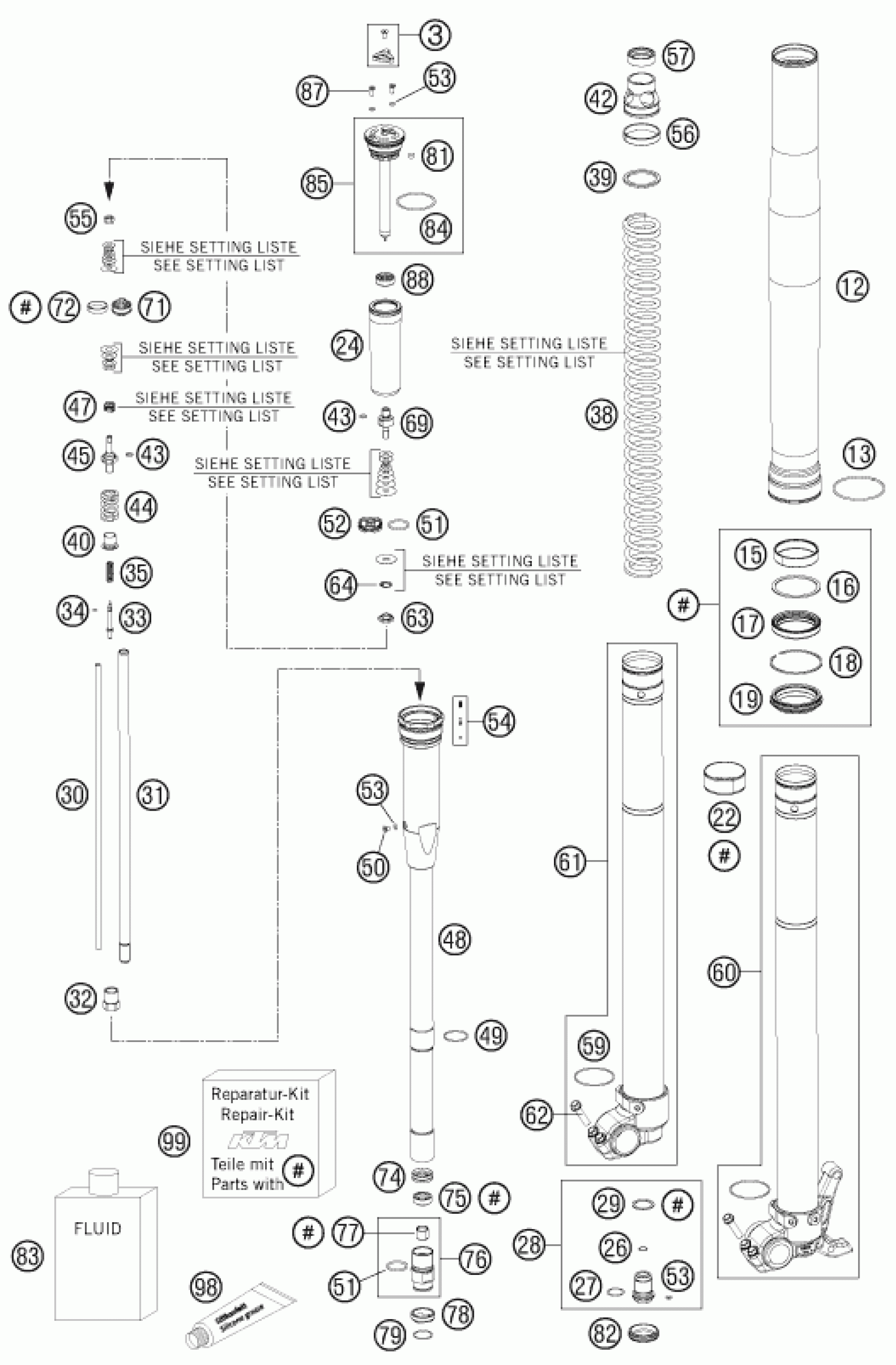

KTM 450 RALLY FACTORY REPLICA <2011> FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

Adjuster compression cpl.

48600811S

$4.11

12

Fork outer tube 49,13x577 dt54

48600761

$310.41

13

Round-wire snap ring 48x2

48600016

$3.08

15

DU-BUSH D48XD52X12DDL02

48600429

$12.05

16

Supportwasher 50x57,6x1,5

48600013

$3.08

17

OIL SEAL RING 48X57,8X9,5 03

48600347

$13.64

18

Snap ring SB58x1,5 acc drawing

48600070

$2.05

19

DUST CAP D=48 58,4X11,8

48600400

$12.80

22

DU-BUSH D47XD49X20DDL02

48600428

$12.05

24

Membrane 11,2x37x112

48600281

$9.90

26

O-ring 9,5x1,5 NBR70 yellow

48600301

$1.49

27

O-ring 17x2 70 Sh NBR black

46810811

$1.49

28

SCREW BUSH M20X1 L=33 CPL.

48600280S

$60.39

29

Copper disc 20,5x26x1

48600275

$2.05

30

Adjustment tube 6x371

48600269

$21.50

31

Piston rod 12x405

48600464

$137.69

32

Lock nut M12x1 h23 WAF17

48600459

$9.90

33

Needle 4,5x43,6

48600277

$5.51

34

O-ring 2x1,5 NBR70

48600298

$1.49

35

Spring (5,4) 4-23 rebound

48600444

$3.08

38

SPRING 4,8N/MM SET D=5,25 MM

91410020S

Unavailable

38

SPRING 5,0 N/MM

91410030S

$145.85

39

Washer 35x43x2,5 plastic

48600456

$2.05

39

Preload bush 35x43x3,5

48600457

Unavailable

39

Washer 35x43x1,5 plastic

48600458

Unavailable

40

Spring retainer 12,3x19x1,25 r

48600525

$2.05

42

Spring support ring 27,08x42x4

48600520

$66.94

43

O-ring 6x1,2 NBR70

48600299

$1.49

44

Spring (13,9) 37-32 rebound

48600578

$2.05

45

Tap 6x46 rebound

48600576

$9.72

47

Spring (11,4) 0,4-8 valve

48600382

$2.05

48

MEMBRANE HOLDER INKL.PIN SET

48600519S2

Unavailable

49

Round-wire snap ring 28,5x1,5

48600512

$5.04

50

HS countersunk head screw M4x6

48600542

$3.08

51

O-ring 21x2 NBR70

46811499

$1.49

52

Piston 6x27,8x9 compression

48600047

$9.81

53

O-ring 4x1,5 NBR70

50180222

$1.49

54

PIN KIT

48600977S

$20.19

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

56

GUIDE RING 44,2 X39,3

48600294

$54.11

57

Spring guide ring 27,08x32x9,5

48600577

$5.51

59

O-ring 46x2 NBR70 siliconized

48600048

$3.08

60

AXLE CLAMP L/S + TUBE CPL.

48600838S1

Unavailable

61

AXLE CLAMP R/S + TUBE CPL.

48600837S1

Unavailable

62

HH collar screw M8x25

0025080256

$2.05

63

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

64

Spring (8,5) l6,5 valve

48600202

$2.05

69

Tap 6x38 compression

48600509

$10.37

71

Piston 6,07x22,7x13

48600575

$14.76

72

Piston ring 21x23x5

48600455

$4.50

74

RING D=23,45X2,65

48600296

$10.01

75

PISTON ROD SEALING

48600471

$6.07

76

SCREW SLEEVE M24,5X1 CPL.

48600546S

$68.23

77

Guide bushing 12x14x10

48600430

$6.44

78

CHECK VALVE STOP

48600297

$16.28

79

Round-wire snap ring 24x2

48600446

$2.05

81

Silicon plug 60Sh

15080017

$5.23

82

Rubber cap 26,4x11

48600692

$3.08

83

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

84

O-ring 43x2 NBR70 siliconized

40140024

$4.11

85

screw cap M41x1 cmpl.

48600516S1

$107.70

87

Cross flat head screw M4x10

48600526

$2.05

88

Clamping ring bladder 11,31x22

48600514

$27.57

98

SILICONE GREASE F. DUST STRI

T511

$34.59

99

REPAIR-KIT GASKET 48MM 0

R14014

$106.21
