Partiron

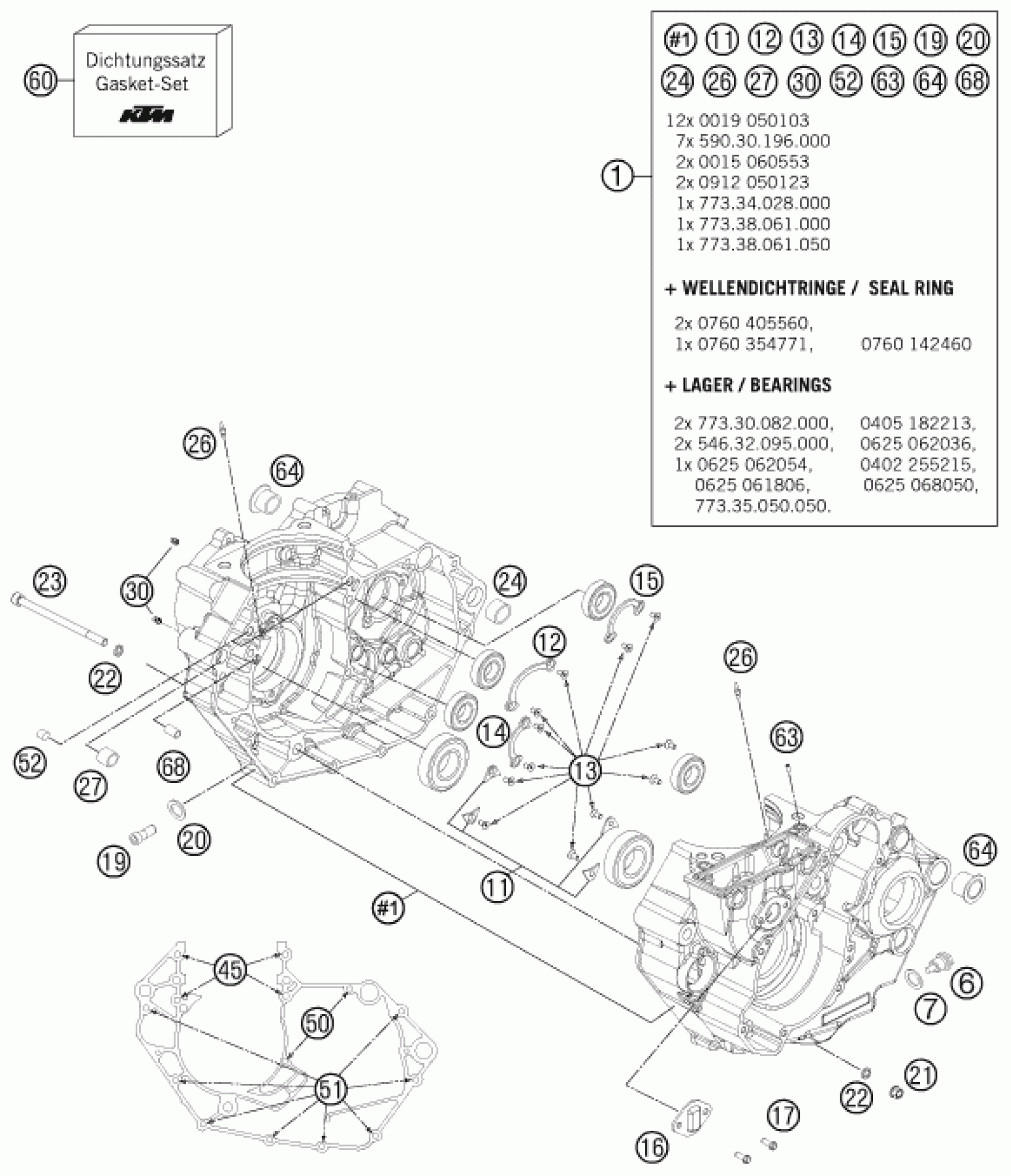

KTM 450 RALLY FACTORY REPLICA <2011> ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. W.TR.BEAR. 11

76330000044

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

7

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

11

BUSHING RETAINING PLATE

77330085000

$4.11

12

BUSHING RETAINING PLATE

77333022100

$4.11

13

INT TORX FLAT HEAD M5X10 10.9

0019050106

$2.05

14

BUSHING RETAINING PLATE

77334090000

$4.11

15

BUSHING RETAINING PLATE

77333024100

$4.11

16

SXS FACTORY RETAINING PLATE

SXS07450245

Unavailable

17

HH collar screw M5x10 TX30

0025050106

$1.49

19

AH SCREW DIN6912-M 8X20

0012080203

$1.49

20

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

24

DOWEL 17 X 19 X 12

59030024000

$5.23

26

OIL JET 70 M6X0,75 WS8 03

60030064070

$11.49

27

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

30

JET 100 BING(44-031/180) M4

59030058000

$4.11

45

SCREW M7-1,0X70

77330067170

$4.11

50

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

51

HH collar screw M6x55 TX30

0025060556

$3.08

52

CYLINDER ROLLER ZRO. 8,0X12 M4

0402080120

$2.05

60

GASKET SET 450/505 SX-F

77330099000

$387.27

63

THROTTLE M5X10X1

77338029052

$9.90

64

CASE BUSH

76330010000

Unavailable

68

dowel sleeve 6x8x11.5

59030023000

$1.49

21

COLLAR NUT M10 WS=13

54630044000

$1.49

22

PAIR OF WASHERS M10 NORDLOCK

50233041100

$4.11

23

engine brac.scr. M10x115

77203014000

$8.97
