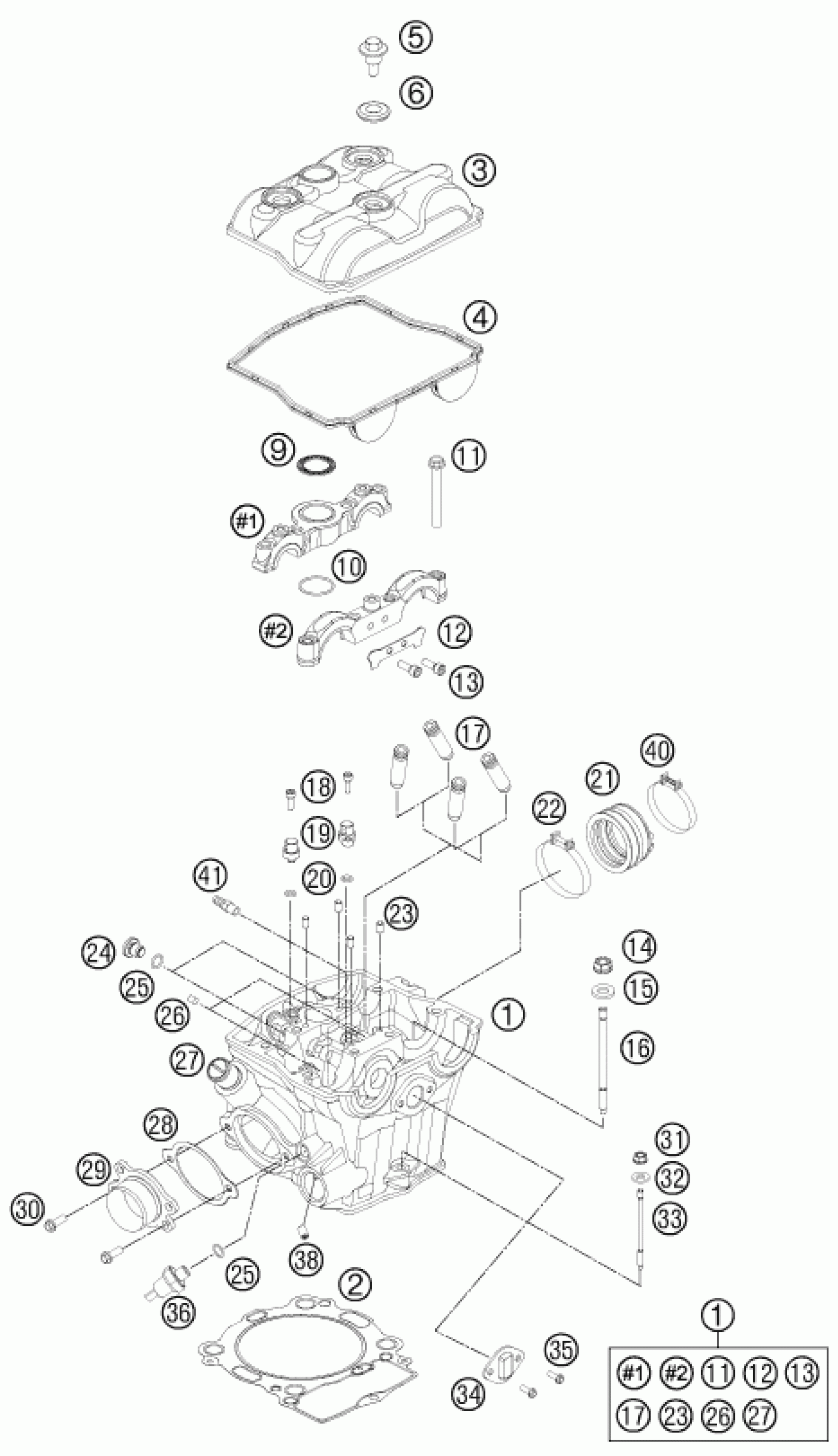

KTM 450 RALLY FACTORY REPLICA <2011> CYLINDER HEAD Diagram

#

Description
Price

3

VALVE COVER

77336052100

$49.17

5

VALVE COVER SCREW

77336054150

$5.23

6

RUBBER GASKET FOR SCREW 05

77036054050

$4.11

9

GASKET SPARK-PLUG SHAFT

77336053050

$5.88

10

O-RING 25,00X1,50 NBR 70

0770250015

$1.49

11

SCRW M7-1,0X38

77330067138

$3.08

12

BUSHING HOLDER

77336020040

$5.60

13

AH SCREW DIN0912-M 5X10

0912050103

$1.49

14

COLLAR NUT M10X1,25 SW13

77336088210

$2.05

15

washer 19x10.5x2.5

77336089010

$4.11

16

STUD SCREW M10

77330044100

$6.44

17

VALVE GUIDE EXHAUST 08

61236026001

$25.70

18

AH SCREW DIN0912-M 4X12

0912040123

$1.49

19

OIL JET

77338046000

$19.42

20

O-ring 6,00x1,50 NBR 70

0770060015

$5.23

21

CONNECTION RUBBER

76336044000

Unavailable

22

HOSE CLAMP GEMI 62 MM 03

60036047100

$10.46

23

CYLINDER ROLLER ZRO 5X8

0402050080

$2.05

24

SCREW PLUG

77336056095

$7.00

25

O-RING 9x1,5 V80 SH

07700900151

$2.05

26

PLUG 00

59030196000

$1.49

27

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

28

GASKET EXHAUST FLANGE

77336041000

$8.78

29

EXHAUST FLANGE CPL. RALLY

76336039000

Unavailable

30

HH collar screw M6x16 TX30

0025060166

$3.08

31

COLLAR NUT M6X1 SW8

77336088106

$12.61

32

WASHER DIN0125-A 6,4

0125060003

$1.49

33

STUD SCREW M6

77330043000

$11.12

34

SXS FACTORY RETAINING PLATE

SXS07450245

Unavailable

35

HH collar screw M5x10 TX30

0025050106

$1.49

1

CYLINDER HEAD CPL.

77336020344

$1,231.29

2

CYL. HEAD GASKET S=0,5 06

77330036000

$43.28

4

VALVE COVER GASKET

77336053000

$12.02

41

VACUUM CONNECTION M 6X1

58336020090

$6.63

38

THROTTLE M6X10X0,6

77338029012

$11.96

40

HOSE CLAMP GEMI 56MM 03

59030061100

$5.51

36

OIL-PRESSURE SWITCH LC8 04

60038091100

$20.66
