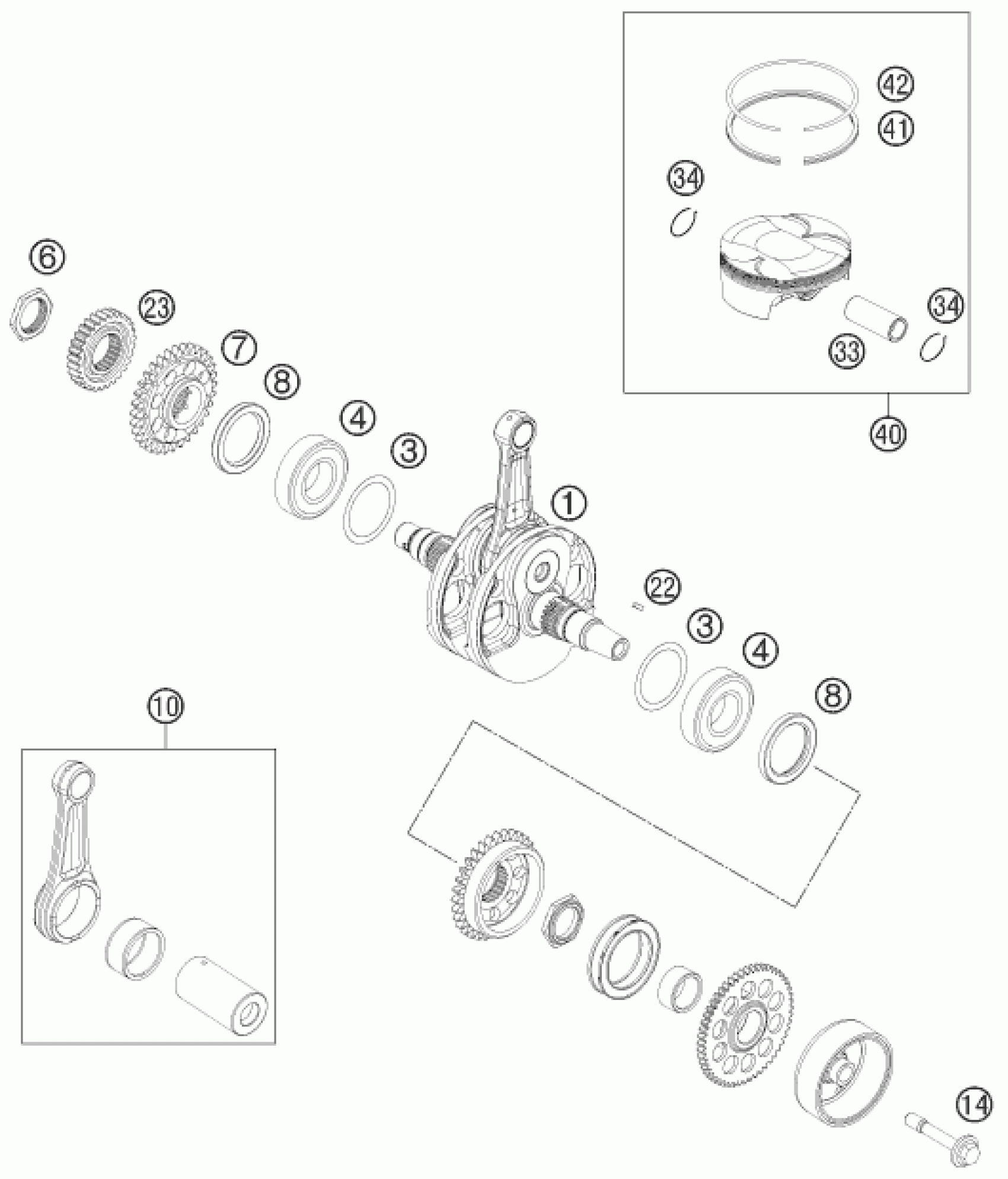

KTM 450 RALLY FACTORY REPLICA <2011> CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

77330018000M02

Unavailable

3

THRUST WASHER 30X42X0,1

0988304201

Unavailable

3

THRUST WASHER 30X42X0,2

0988304202

Unavailable

3

THRUST WASHER 30X42X0,3

0988304203

Unavailable

4

BEARING NJ_206_ECP_HN3C3HVA62

76330082100

Unavailable

6

COLLAR NUT M27X1

77330029000

$10.84

7

DRIVE WHEEL AGZR KS Z=32

77330055110

$130.89

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

$11.87

10

CONNECTING ROD REPAIR SET

76330015044

Unavailable

14

FLYWHEEL SCREW

77339010100

$5.60

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

23

PRIMARY GEAR

77332023129

$133.51

33

PISTON PIN

77330033000M06

Unavailable

34

CIRCLIP

77330074100

Unavailable

40

PISTON CPL. D=97MM

77330007000M06

Unavailable

41

SCRAPER RING 450

77330032300

Unavailable

42

COMPRESSIONRING D=97

77330030200

Unavailable
