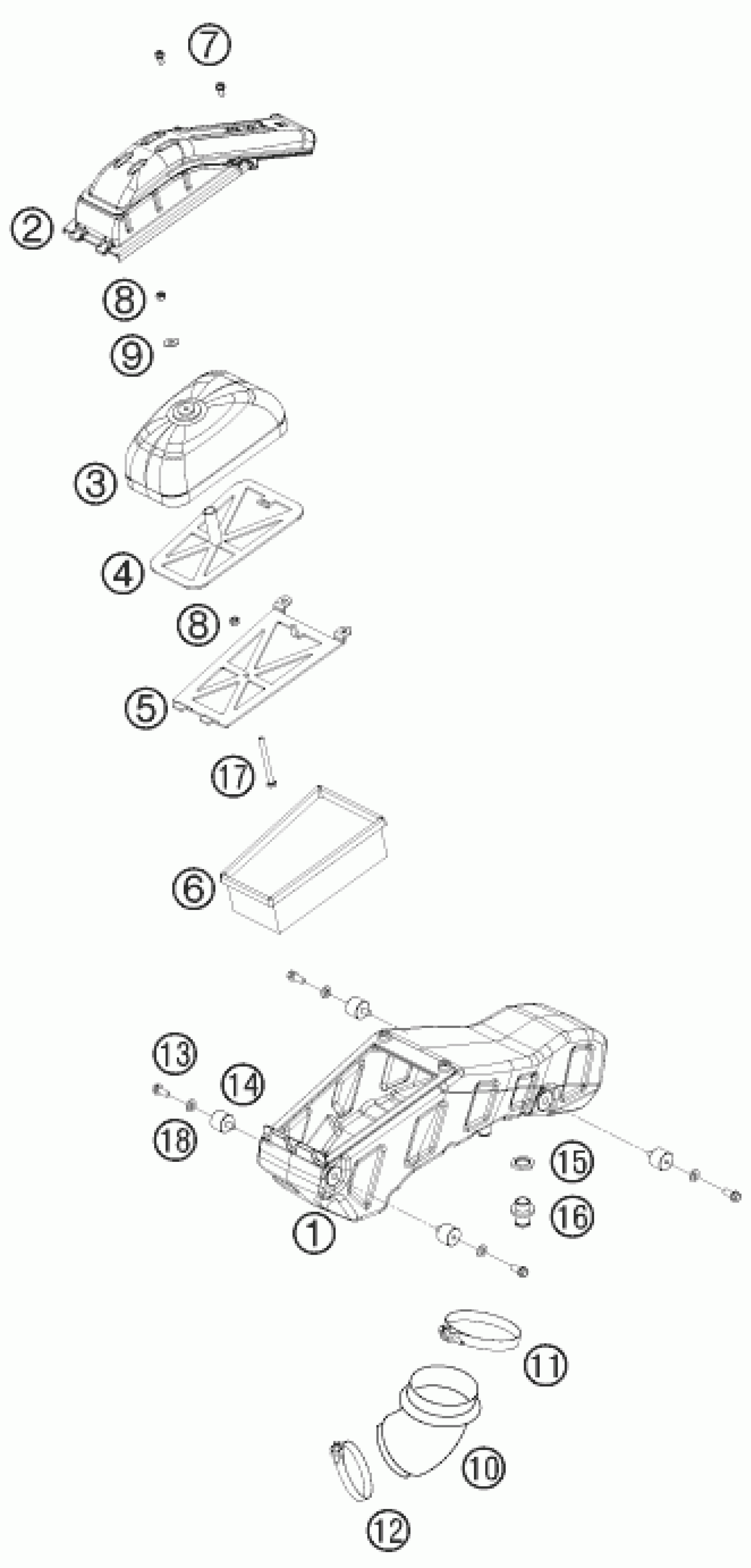

KTM 450 RALLY FACTORY REPLICA <2011> AIR FILTER Diagram

#

Description
Price

2

FILTER BOX-TOP PART 08

76506002000

$42.81

1

AIR FILTER BOX

76306104000

Unavailable

3

AIR FILTER TWIN AIR 09

76206115000

Unavailable

4

FILTER CARRIER CPL.

76206101050

Unavailable

5

AIR BOX BRACKET

76206101051

Unavailable

6

AIRFILTER PAPER 200X120

76506015000

$23.55

7

HH collar screw M6x12 TX30

0025060126

$3.08

8

Self lock. nut DIN985-M6-A2

0985060003

$2.05

9

Washer DIN9021-A 6.4

0021060003

$2.05

10

CARB. CONNECT. BOOT 450/501 04

80006026100

$35.35

11

HOSE CLAMP 70-90MM

58506027000

$3.08

12

HOSE CLAMP 50-70MM

51006027000

$6.07

13

HH collar screw M6x8 TX30

0025060086

$2.05

14

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

15

NUT F.TANK BRAKET REAR

76312063050

Unavailable

16

BLEEDER FLANGE M12X1,5 WS=13

59030022100

$7.85

17

HH SCREW DIN933 M6x70

0933060703

Unavailable

18

spring washer DIN 137 B - 6

0137060003

$2.05
