SWING ARM

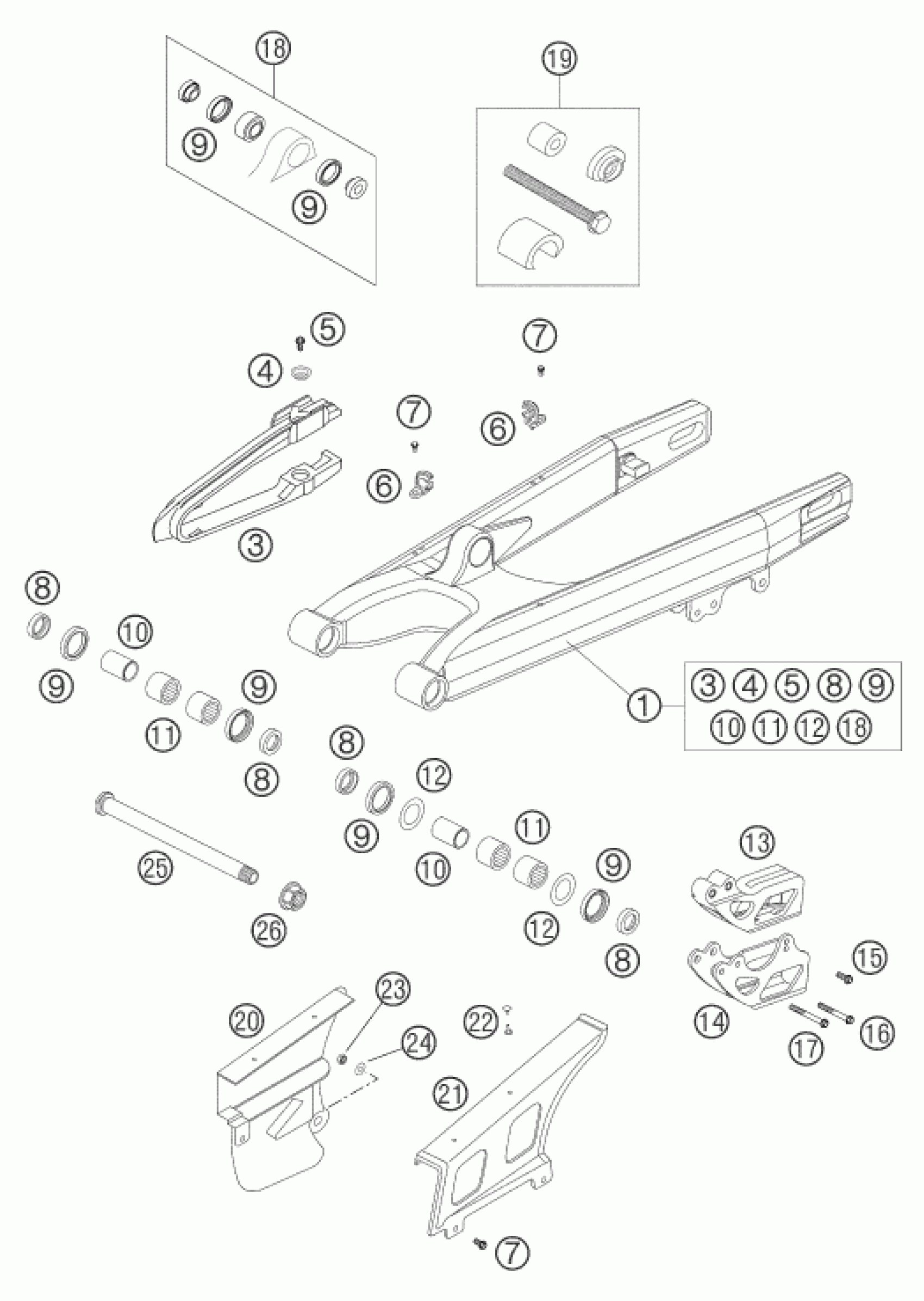

KTM 450 MXC-G RACING 2004 SWING ARM Diagram
#
Description
Price
1
SWINGARM CPL. SX RACING 04
59404030044
$736.48
3
CHAIN GUARD '97
50304066000
$25.52
4
BUCKET
72210079000
$3.00
5
HH COLLAR SCREW M 6X10 WS=8
0015060103
$3.08
6
RETAIN.CLAMP FOR BRAKE HOSE'96
54611076100
$2.05
7
SPECIAL SCREW M 5,0X10
0009050103
$2.05
8
Bucket f. shaft seal ring 03
54804034000
$5.23
9
radial shaft seal 25x32x7
0760253270
$6.63
10
Bearing sleeve 17x22x38.7 03
59404032000
$10.09
11
NEEDLE BEARING HK2212V
59004031100
$9.81
12
STOP DISK 22,2X31,7X1
54603036000
$3.08
13
CHAIN GUIDE REAR '94
54607066100
$28.60
14
RETAINING PLATE CPL.
54607070144
$31.41
15
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
16
HH COLLAR SCREW M 6X50 WS=8
0015060503
$3.08
17
HH COLLAR SCREW M 6X55 WS=8
0015060553
$1.49
18
PIVOT BEARING+BUSH. PDS '99
50304090044
$64.69
19
TOOL BEARING MOUNTING PDS
50329000044
$752.92
20
CHAIN GUARD SMALL EXC 2000
50304060100
$9.62
21
CHAIN GUARD LARGE EGS
54607460000
$33.77
22
HOLLOW RIVET TWO PARTS
20012062055
$3.08
23
Self lock. nut DIN985-M6-A2
0985060003
$2.05
24
Washer DIN9021-A 6.4
0021060003
$2.05
25
SWINGARM BOLT M16X1,5 03
54804037000
$56.65
26
Nut with flange M16X1,5 WS=19
54804038000
$2.05
