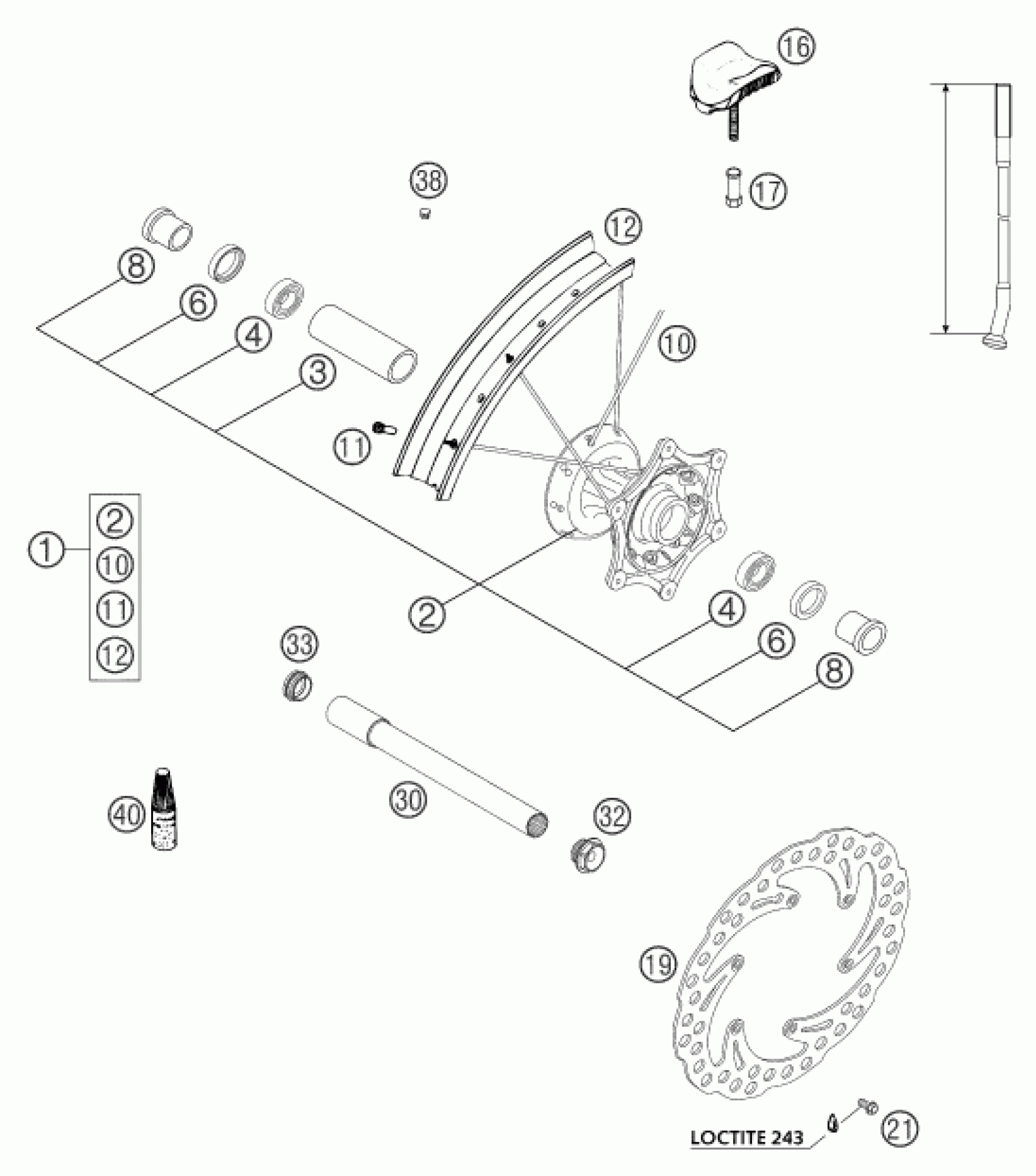

KTM 450 MXC-G RACING 2004 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 1,6X21'' EXCEL 0

54809001044

$504.30

1

FRONT WHEEL 1,6X21'' DID 03

54809001144

$421.27

1

FRONT WHEEL 1,6X21'' EXCEL 0

54809001244

Unavailable

2

FRONT HUB CPL. GOLD 03

5480901004496

$204.24

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

$25.70

4

Grooved ball bearing 6906

0625069068

$34.68

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

8

SPACER BUSHING F. FR. WHEEL

54809012000

$30.10

10

SPOKE M4,5X230-15G 21'' DDE

50309072230

$4.11

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

$2.05

12

FRONT RIM 1,6X21'' EXCEL AL4

54609070100

$250.66

12

FRONT RIM 1,6X21'' DID

54609070200

$205.60

12

FRONT RIM 1,6X21'' EXCEL AL7

54809070000

$205.60

16

RIM LOCK VM1 (1,60'')

51009100100

$17.57

17

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

19

BRAKE DISC FRONT D=260MM 03

54809060100

$223.83

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

30

WH SPIN.FR. D=26 M24X1,5 03

54809081000

$82.83

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

$9.81

33

PLUG BUSHING WS=27 03

54809081050

$9.81

38

PLUG FOR RIM

55003135000

Unavailable

40

LOCTITE 243 BLUE 5 ML

6899785

$28.04
