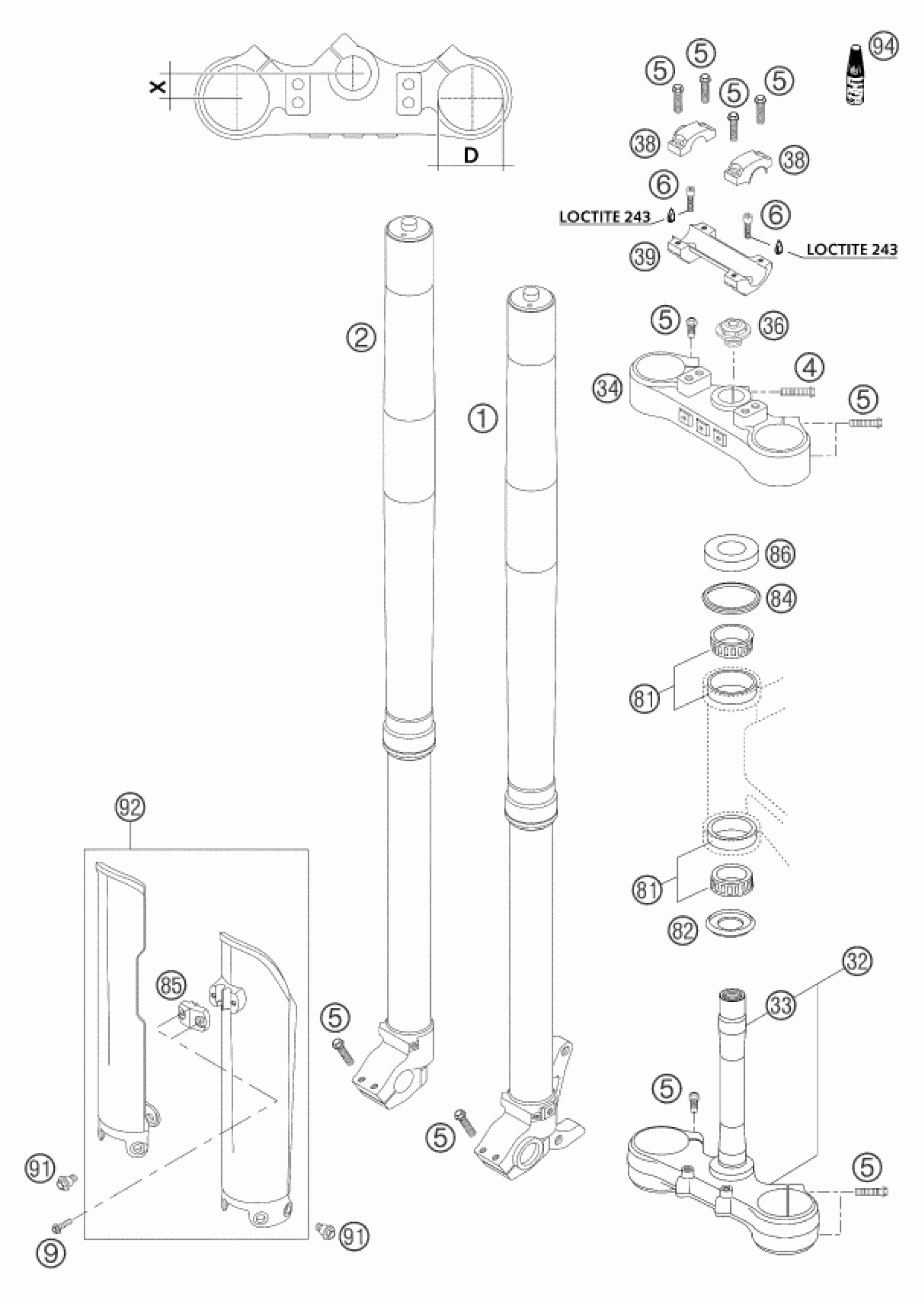

KTM 450 MXC-G RACING 2004 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK LEG L/S4860MXMA 48MM PA04

1418Y747LS

Unavailable

1

FORK LEG L/S 4860 MXMA 48MM 04

1418Y748LS

Unavailable

2

FORK LEG R/S4860MXMA 48MM PA04

1418Y747RS

Unavailable

2

FORK LEG R/S 4860 MXMA 48MM 04

1418Y748RS

Unavailable

4

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

6

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

9

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

32

BOT.TRIP.CL.CPL X=20MM/D=60MM

59001132120

$260.30

33

FORK TUBE L=244 '91

50101033100

$85.17

34

TOP TRIPLE CLMP X=20MM/D=54MM

59001034120

$182.13

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

38

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

39

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

81

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

$3.08

86

STEERING HEAD COVER

54201086000

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20

94

LOCTITE 243 BLUE 5 ML

6899785

$28.04
