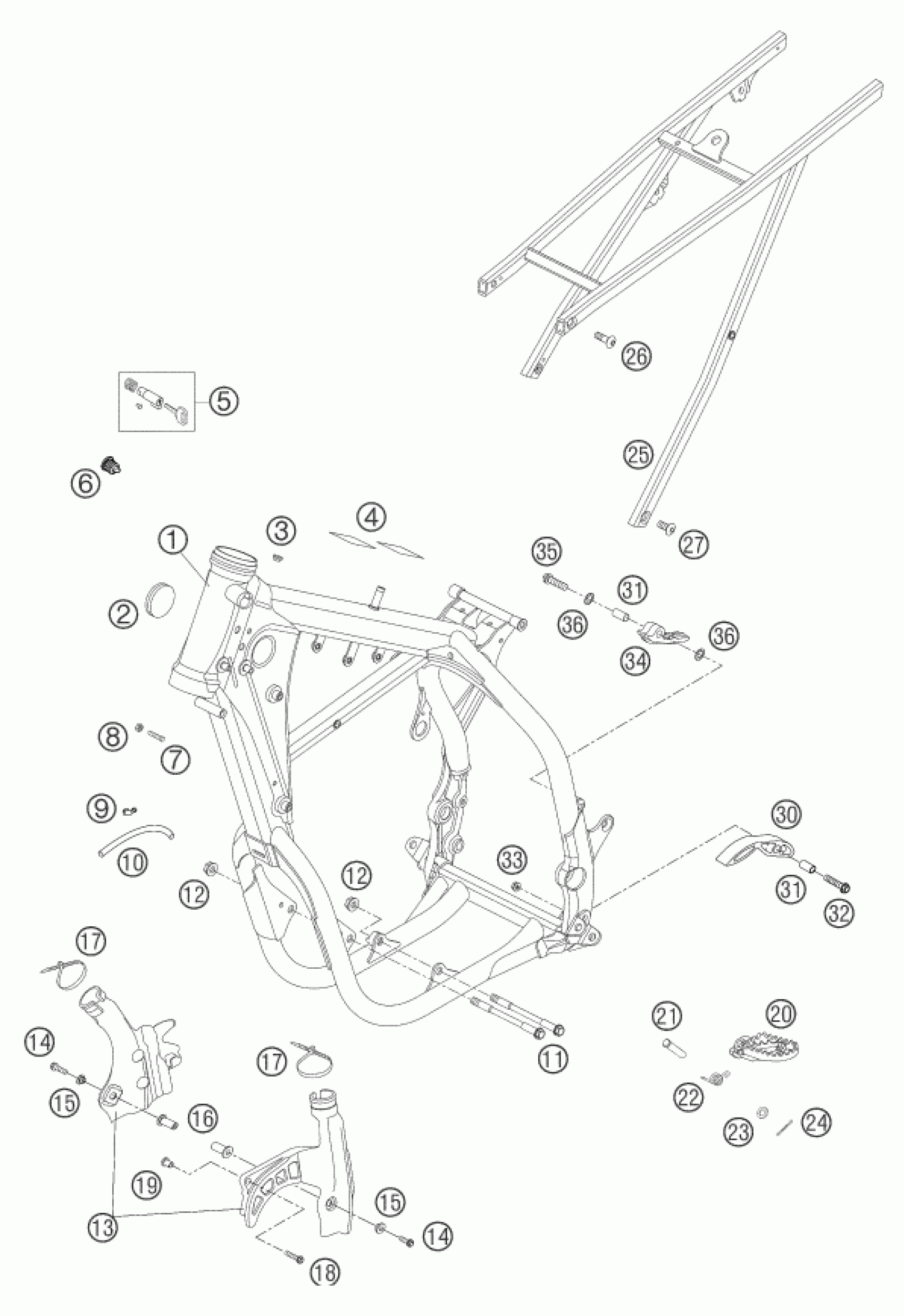

KTM 450 MXC-G RACING 2004 FRAME Diagram

#

Description
Price

1

FRAME SX RACING "V4" 04

5940300110096

Unavailable

1

FRAME EXC RACING USA "T4" 04

5940300120096

Unavailable

1

FRAME EXC RACING EU "S4" 04

5940300130096

Unavailable

2

PLUG 37MM

54606004000

$2.05

3

PLUG

36111021000

$1.49

4

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

5

STEERING HEAD LOCK CPL. ZADI

71003007000

$32.06

6

PLASTIC CAP

42007049000

$1.49

7

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

8

Hexagon nut DIN934 M8

0934080003

$2.05

9

ANGLE PIECE '97

50303089000

$5.23

10

PVC-HOSE 7X10 PER METER

55007016001

$6.07

11

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

12

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

13

FRAME PROTECTION SET 03

54803094000

$14.10

14

HH COLLAR SCREW M 5X25 WS=6

0014050253

$3.08

15

Bush f. frame protection 03

54803092060

$4.11

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

17

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

18

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

19

BUSHING F. SPROCKET COVER RAC.

59030060050

$10.46

20

FOOT PEG L/S SILVER 02

59003040250

$43.66

20

FOOT PEG R/S SILVER 02

59003041250

$43.66

21

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

22

FOOTREST SPRING L/S & R/S

54603041000

$5.23

23

washer DIN 125 A 10.5

0125100003

$2.05

24

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

25

SUB FRAME CPL. ALU RAC.(G3) 03

59403002044

$286.09

25

SUB FRAME CPL. ALU RACING 04

59403002144

$234.05

26

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

27

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

30

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

31

BUSHING 8,2X10X20

51103053051

$4.11

32

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

33

Self locking nut M8 10.9

54310086200

$3.08

34

CHAIN SLIDING PIECE 03

54804067000

$5.23

35

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

36

LOCK WASHER 8MM

36003014000

$2.05
