CARBURETOR

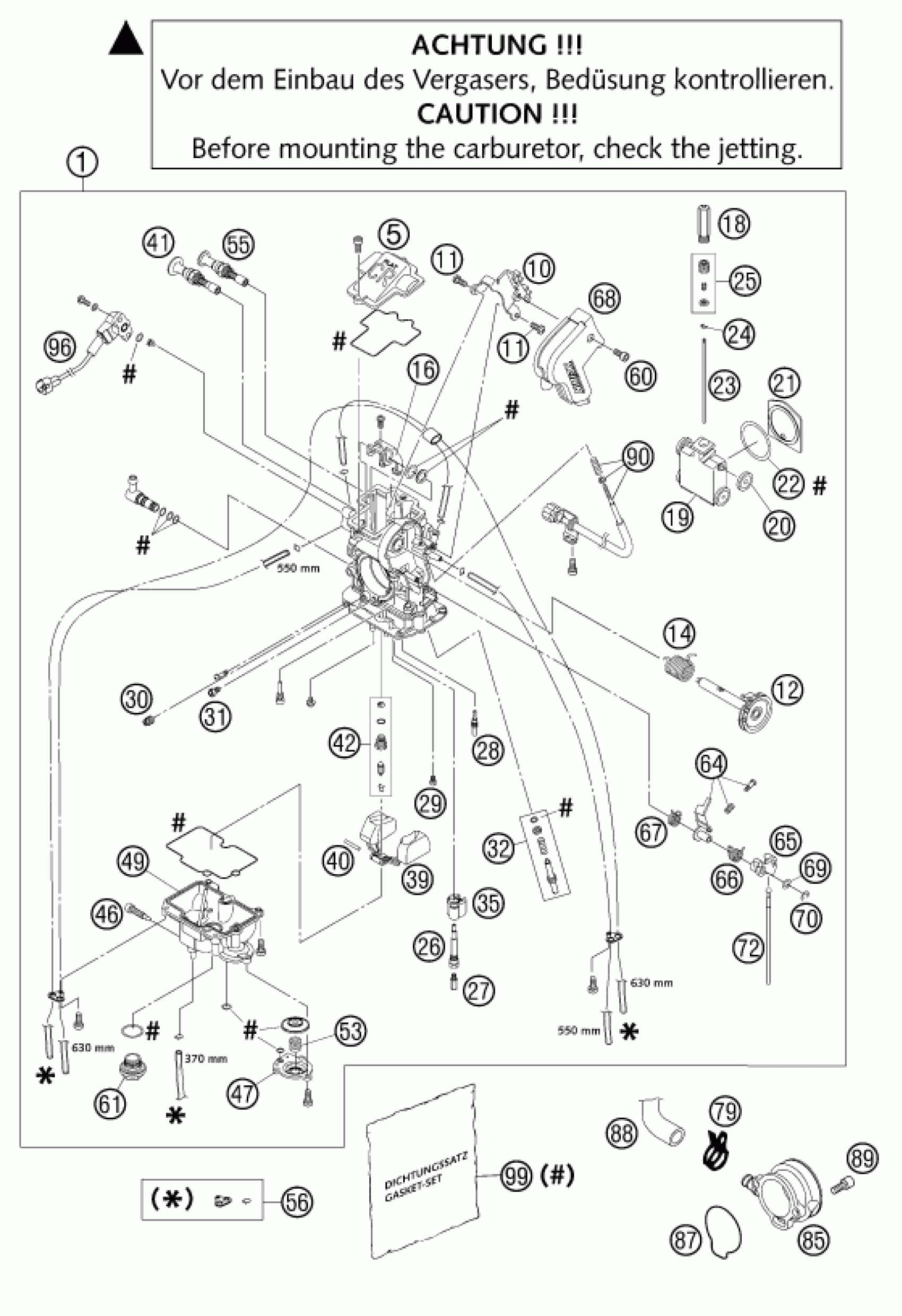

KTM 450 MXC-G RACING 2004 CARBURETOR Diagram
#
1
CARBURETOR FCR-MX39 TPS 03
59031001200
$1,100.26
1
CARBURETOR FCR-MX41 03
59431001000
Unavailable
1
CARBURETOR FCR-MX41 03
59431001200
Unavailable
5
CARBURETOR COVER 2002
57331027000
$39.26
10
BRACKET PLATE FOR THR. CABLE
57331080000
$64.88
11
SCREW M 5 X 8
57331055000
$1.73
12
THROTTLE SHAFT CPL.
57331046000
$128.55
14
COIL SPRING THROTTLE SHAFT
57331046050
$9.15
16
LINK ARM THROTTLE VALVE CPL.
57331035051
$84.89
18
SLIDE STOP 03
59031029010
$13.96
19
THROTTLE VALVE CPL.
57331035000
$345.01
20
BUSHING THROTTLE VALVE
59031035050
$10.65
21
GASKET PLATE THROTTLE VALVE
57331035053
$191.85
22
GASKET WASHER THROTTLE VALVE
59031035052
$17.94
23
JET NEEDLE KEIHIN OBDVT
59031023200
$29.07
23
JET NEEDLE KEIHIN OBDVR
590310340VR
$29.07
23
JET NEEDLE KEIHIN OBDTM
590310340TM
Unavailable
23
JET NEEDLE KEIHIN OBDTN
59031034000
Unavailable
23
JET NEEDLE KEIHIN OBDTP
59031034400
$31.03
23
JET NEEDLE KEIHIN OBDTQ
59031034500
Unavailable
23
JET NEEDLE KEIHIN OBDTR
59031034600
Unavailable
24
BAR CLIP
59031029000
$5.23
25
NEEDLE SET SCREW CPL.
57331032000
$40.10
26
NEEDLE JET FCR-MX
59031121000
$32.72
27
MAIN JET 170 KEIHIN
54531623170
Unavailable
27
MAIN JET 172 KEIHIN
54531623172
Unavailable
27
MAIN JET 175 KEIHIN
54531623175
Unavailable
27
MAIN JET 180 KEIHIN
54531623180
Unavailable
27
MAIN JET 182 KEIHIN
54531623182
Unavailable
27
MAIN JET 178 KEIHIN
54531623178
$13.64
27
MAIN JET 185 KEIHIN
54531623185
$12.80
27
MAIN JET 188 KEIHIN
54531623188
Unavailable
27
MAIN JET 190 KEIHIN
54531623190
Unavailable
28
IDLE JET 40 KEIHIN
54531607040
$12.61
28
IDLE JET 42 KEIHIN
54531607042
$12.71
28
IDLE JET 45 KEIHIN
54531607045
Unavailable
29
STARTER JET 85
59031051085
$16.73
30
IDLE AIR JET 100 KEIHIN
57331007100
$15.51
31
MAIN AIR JET 200 KEIHIN
57331037200
$12.37
32
ADJUST SCREW CPL. FCR-MX
59031017100
$19.63
35
BUFFER PLATE
57331085000
$12.33
39
FLOAT CPL.
57331009000
$59.64
40
ARM PIN FLOAT
57331008000
$2.05
41
HOT-STARTER VALVE CPL.
57331075000
$97.89
42
NEEDLE VALVE CPL.
57331020000
$81.15
46
DRAIN SCREW FLOAT CHAMBER
57331155000
$5.98
47
COVER ACCELERATOR PUMP
57331060000
$27.01
49
FLOAT CHAMBER CPL. SET
57331011000
$178.48
53
COIL SPRING
59031059000
$7.38
55
STARTER VALVE CPL.
57331048000
$86.85
56
BREATH.HOSE FCR-MX KEIHIN CPL.
57331098000
$107.52
60
SCREW F. COVER KEIHIN
57331038100
$7.88
61
HOLDING BOLT
57331014000
$20.75
64
INTERMEDIATE LEVER CPL.
57331062000
$33.28
65
LINK LEVER
57331056000
$8.13
66
SPRING LINK LEVER
57331059000
$9.49
67
SPRING INTERMEDIATE LEVER
57331159000
$10.84
68
CARBURETOR COVER
57331038000
$24.58
69
WASHER LINK LEVER
57331087000
$2.05
70
E-CLIP
57331084000
$2.05
72
ROD ACCELERATOR PUMP
57331061000
$26.73
79
YDNAC-clamp 10173 (16MM)
58431082100
$1.49
85
INTAKE FUNNEL FCR/FCR-MX 02
59031040200
$7.21
85
INTAKE FUNNEL FCR/FCR-MX 2001
59031040100
$7.69
87
O-RING FOR INTAKE FUNNEL
59031040010
$3.08
88
ENGINE BREATHER TUBE 00
59031050100
$14.58
89
AH SCREW DIN0912-M 5X12
0912050123
$2.05
90
STOP SCREW CPL. FCR-MX
57331025000
$56.65
99
GASKET SET FCR-MX KEIHIN
57331099000
$119.67
96
TPS-SENSOR FCRMX 180MM 03-05
59031077100
Unavailable
