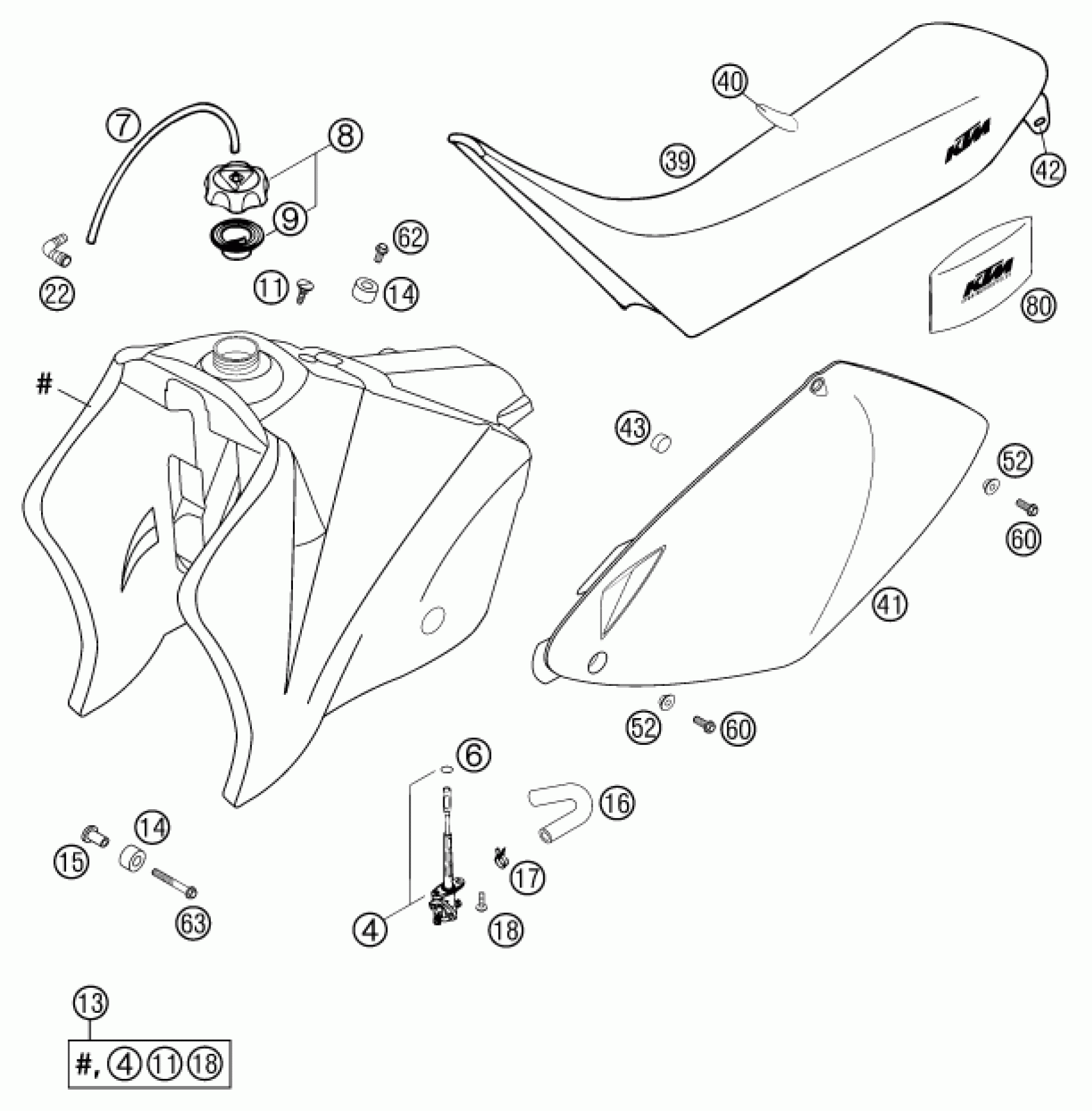

KTM 450 MXC-G RACING 2003 TANK, SEAT Diagram

#

Description
Price

17

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

18

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

4

FUEL COCK CPL. OFF-ON-RES

58307105200

Unavailable

6

O-RING 13,00X2,30

0770130023

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. WITH VALVE

59007008044

Unavailable

9

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

11

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

14

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

15

SUPORT BUSHING TANKROLLER

59003001055

Unavailable

16

FUEL HOSE 7,5X13MM

59007016000

Unavailable

13

% FUEL TANK CPL. 13L

59007013400

Unavailable

39

SEAT BLACK WITH KTM-LOGO 03

59007040300

Unavailable

40

SEAT COVER BLACK 03

59007040350

Unavailable

41

SIDE COVER L/S ORANGE 03

5030804100004

Unavailable

0

SIDE COVER R/S ORANGE 03

5030804200004

Unavailable

42

SEAT BRACKET L/S-R/S '98

50307041000

Unavailable

43

RUBBER FOR SIDE COVER '98

50308042055

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

60

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

62

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

63

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

80

ORIGINAL EQUIPMENT TOOL KIT

59029099000

Unavailable
