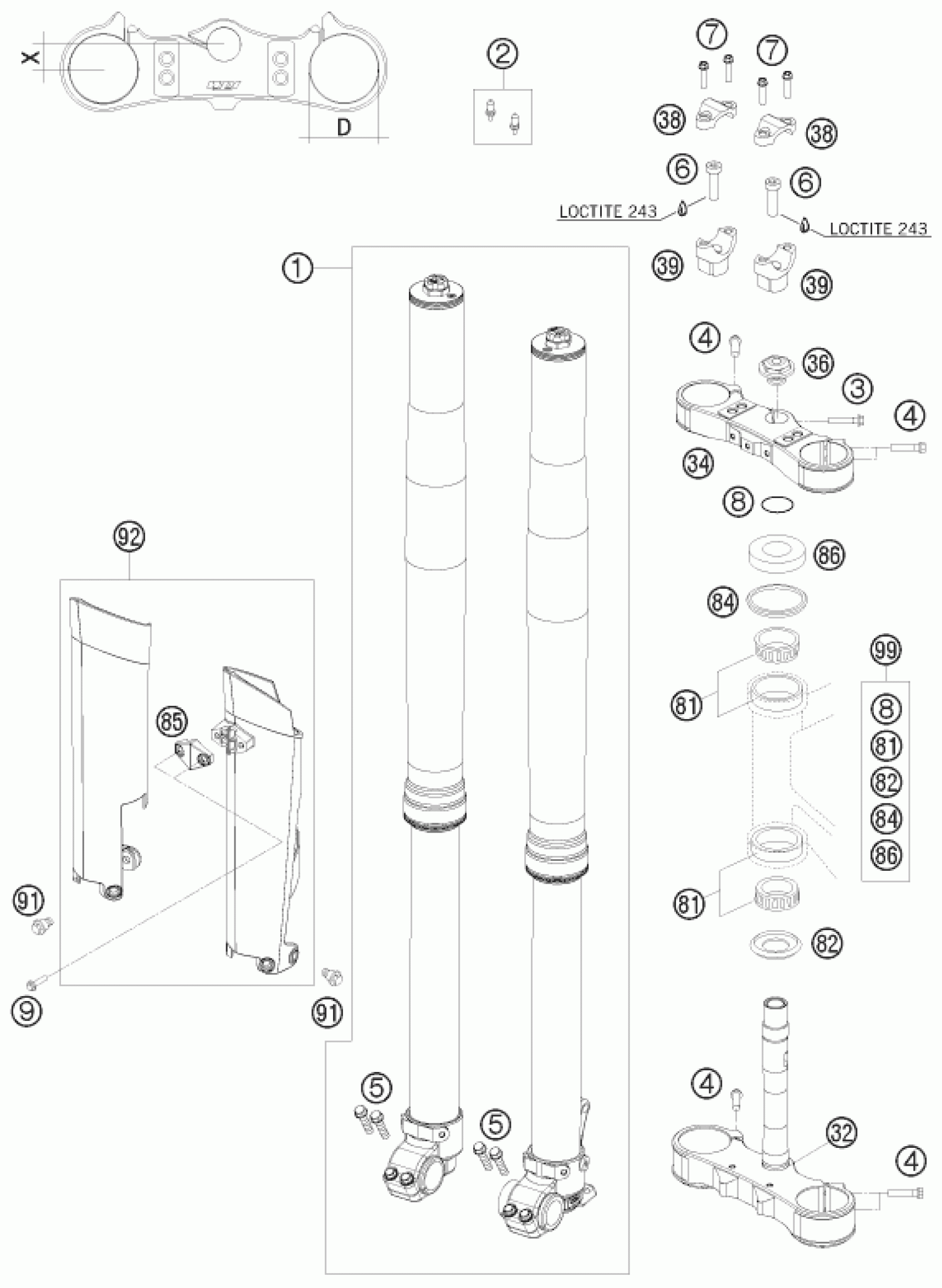

KTM 450 EXC SIX DAYS 2011 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK KTM450/530EXC/XC-W 2010

14187J0601

$2,228.20

2

BLEEDER VALVE SET

SXS08125610

$24.89

3

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

4

HH collar screw M8x35 TX40

0025080356

$4.11

5

HH collar screw M8x25

0025080256

$2.05

6

AH SCREW DIN6912-M10X35 10.9

0912100356

$4.11

7

HH collar screw M8x30

0025080306

$3.08

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

32

BOT. TR. CLAMP CPL. X=19MM 09

7800103211930

$271.52

34

TOP TRIPLE CLAMP D=54MM 09

5940103401930

$223.74

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

38

HANDLEBAR CLAMP 28MM 05

59401038000

$25.05

39

Handlebar mount D28mm-H32mm

59401039032

$36.55

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

39

Handlebar mount D28mm-H42mm

59401039042

$36.27

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP F. SPEED. CABLE D=6MM 08

7800108500028

$5.23

86

STEERING HEAD COVER

54201086000

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECT L/S+R/S WHITE 09

7800109410028

$30.94

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
