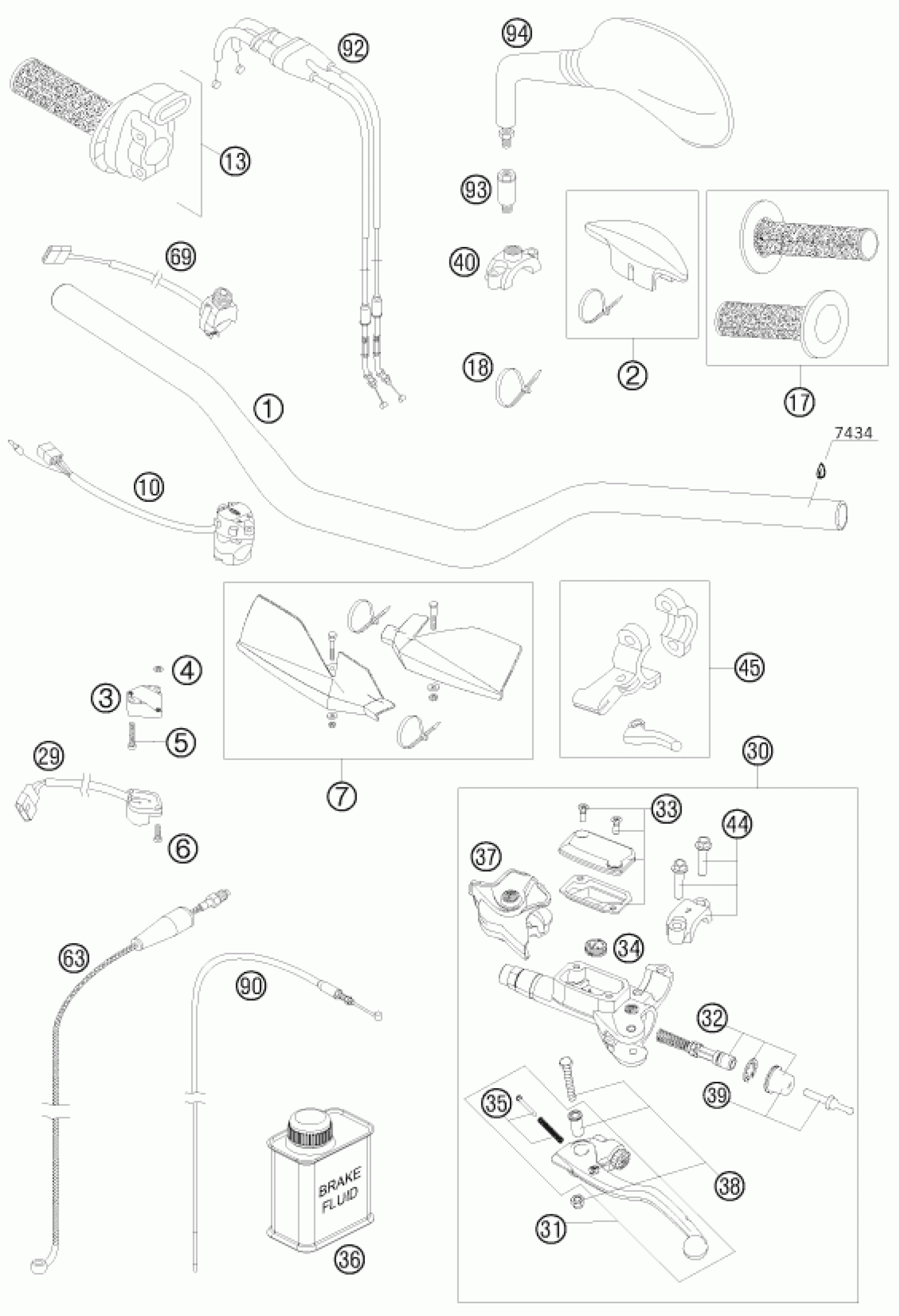

KTM 450 EXC SIX DAYS 2010 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM

7800200100017

$173.43

2

BAR PAD CPL.

77202002000

Unavailable

3

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

4

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

5

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

6

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

7

HAND GUARDS CPL.L/S+R/S OR. 06

7700207900004

$34.85

10

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

13

THROTTLE GRIP CPL. 4-ST. 09

77002010100

$44.59

17

GRIP-SET GRAY/ORANGE 09

54802021200

$22.71

18

Cable tie 200/4.6mm black

44011076200

Unavailable

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

MASTER CYLINDER CPL. 06

54802030044

$240.57

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 06

54802032000

$49.92

33

COVER HYD. CLUTCH CPL.

54802003000

$33.46

34

VALVE

54802051000

$19.16

35

BOLT KPL.

54802052000

$29.35

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

Push rod cmpl.

54802046000

$23.46

40

Clamp for mirror

58012040150

Unavailable

44

CLAMP CPL. 06

54802005100

$25.80

45

LEVER F. COLD START ACT. 08

78002050000

Unavailable

63

CLUTCH PIPE 06

54832063000

$100.32

69

STARTER CONTROL 04

59411074000

$42.91

90

CABLE F. COLD START ACT. 08

78031078000

Unavailable

92

THROTTLE CABLE 250 SXF 2005

77002091000

$75.17

93

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

94

MIRROR L/S 98

58412040000

$36.92

94

MIRROR R/S 98

58412041000

$36.92
