FRONT FORK, TRIPLE CLAMP

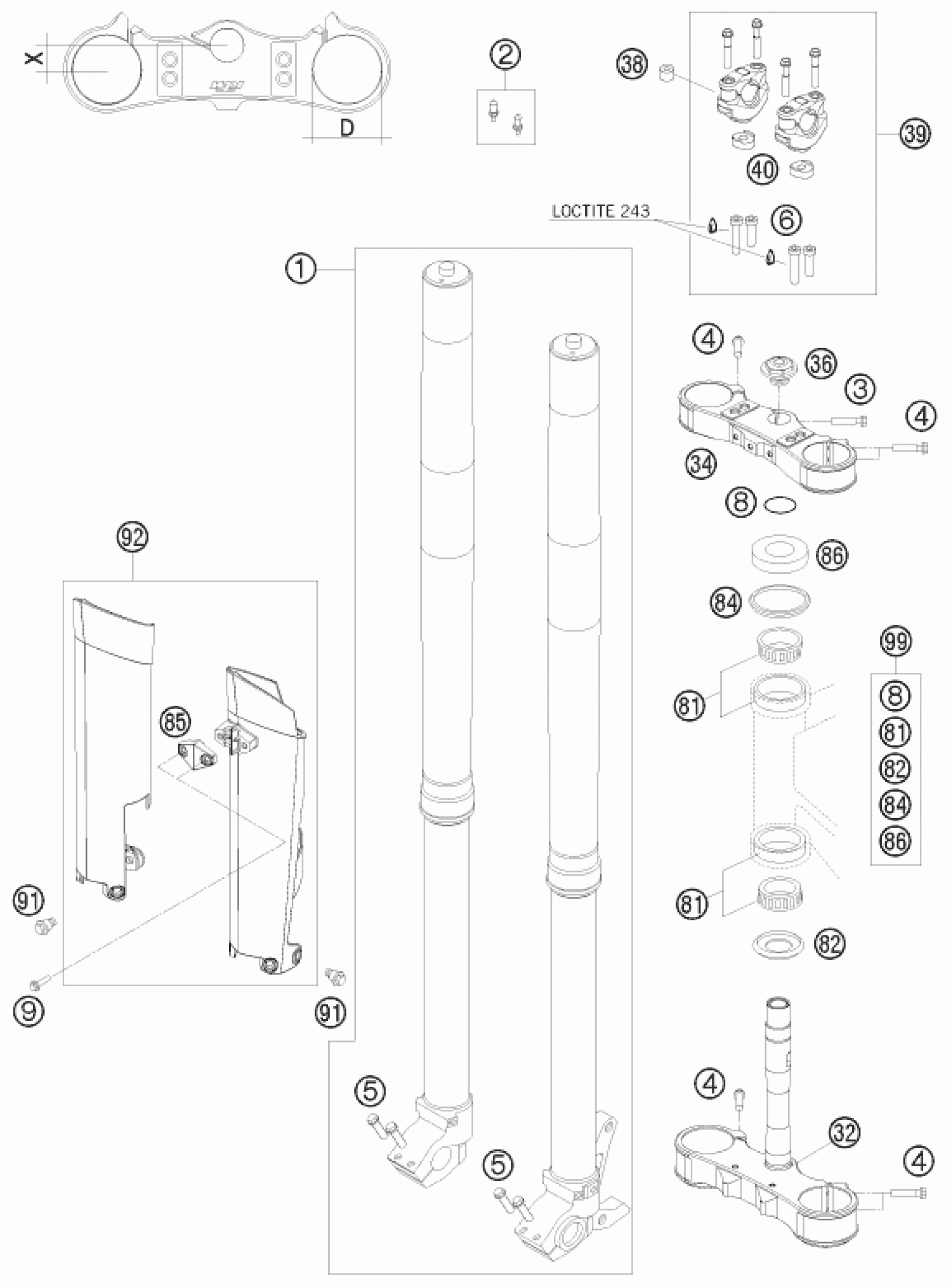

KTM 450 EXC SIX DAYS 2009 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
1
FORK KTM 450/530EXC/XC-W 2009
14187E0601
$2,122.97
2
BLEEDER VALVE SET
SXS08125610
$24.89
3
HH COLLAR SCREW M8X25 TX40
0025080256S
$3.08
4
HH collar screw M8x35 TX40
0025080356
$4.11
5
HH collar screw M8x25
0025080256
$2.05
6
AH SCREW DIN6912-M10X35 10.9
0912100356
$4.11
6
AH SCREW DIN6912-M10X25,10.9
0912100250
Unavailable
8
O-RING 25X3,55 NBR70 05
0770025035
$1.49
9
EJOT PT SCREW K60X20 ALU WS=6
0017060204
$3.08
34
TOP TRIPLE CLAMP D=54MM 09
5940103401930
Unavailable
36
STEER.HEAD SCREW M20X1,5 WS=27
54801036000
$11.21
38
ELASTOMER GREEN/SOFT
SXS05125203
$32.29
32
BOT. TR. CLAMP CPL. X=19MM 09
7800103211930
$271.52
38
ELASTOMER YELLOW/MEDIUM
SXS05125204
$32.29
38
ELASTOMER RED/HARD
SXS05125205
$32.29
39
PHDS PROGRESSIVE H-BAR DAMPING
SXS07125200
Unavailable
81
TAPERED ROLLER BEARING CPL. 06
54201081100
$51.04
82
O-RING SUPPORT W. SEALINGLIP
54601084200
$19.35
84
STEARING HEAD GASKET TOP
54601184000
$7.10
85
CLAMP FOR SPEED CABLE D=6MM 08
7800108500004
$3.15
86
STEERING HEAD COVER
54201086000
$8.50
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
FORK PROTECTIO LE+RI ORAN.08
7800109400004
$30.94
40
SPACER 9 MM
59501039004
Unavailable
99
STEARING HEAD REP. KIT 06-15
00050000930
Unavailable
