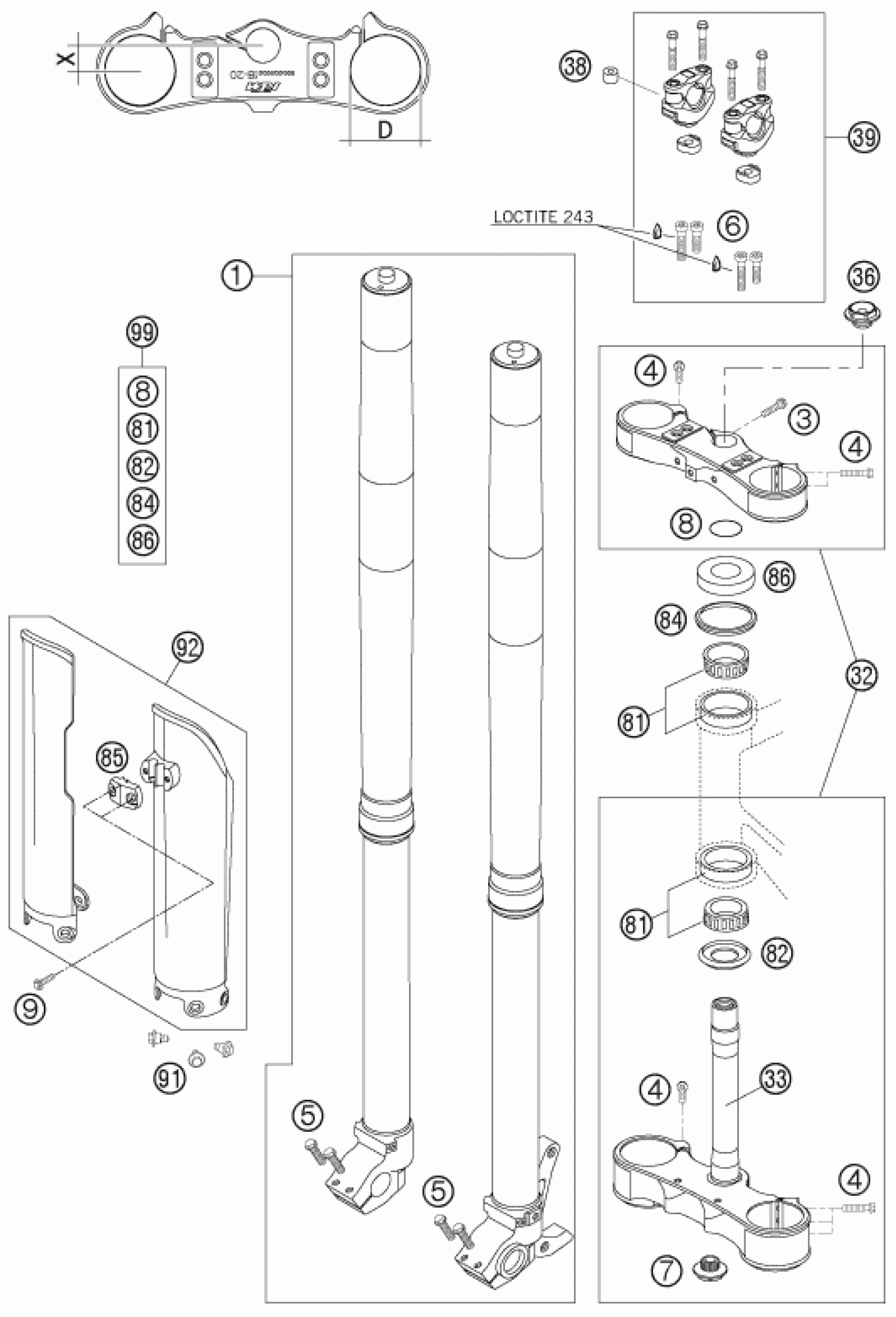

KTM 450 EXC RACING SIX-DAYS 2007 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK WP D48 450XC450-525SD 07

14187C29

Unavailable

3

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

4

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

5

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

6

AH SCREW DIN6912-M10X35 10.9

0912100356

$4.11

7

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

$14.67

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

38

ELASTOMER YELLOW/MEDIUM

SXS05125204

Unavailable

32

TRIPLE CLAMP 18-20MM OFFSET

5940109901988

$178.44

33

FORK TUBE L=237MM 05

59401033000

$85.64

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

38

ELASTOMER GREEN/SOFT

SXS05125203

Unavailable

39

PHDS PROGRESSIVE H-BAR DAMPING

SXS07125200

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP F.SPEED.CABLE ORANGE 06

5900108510004

$1.49

86

STEERING HEAD COVER

54201086000

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROT. L/S +R/S ORG 02

5900109400004

$33.99

6

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

38

ELASTOMER RED/HARD

SXS05125205

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
