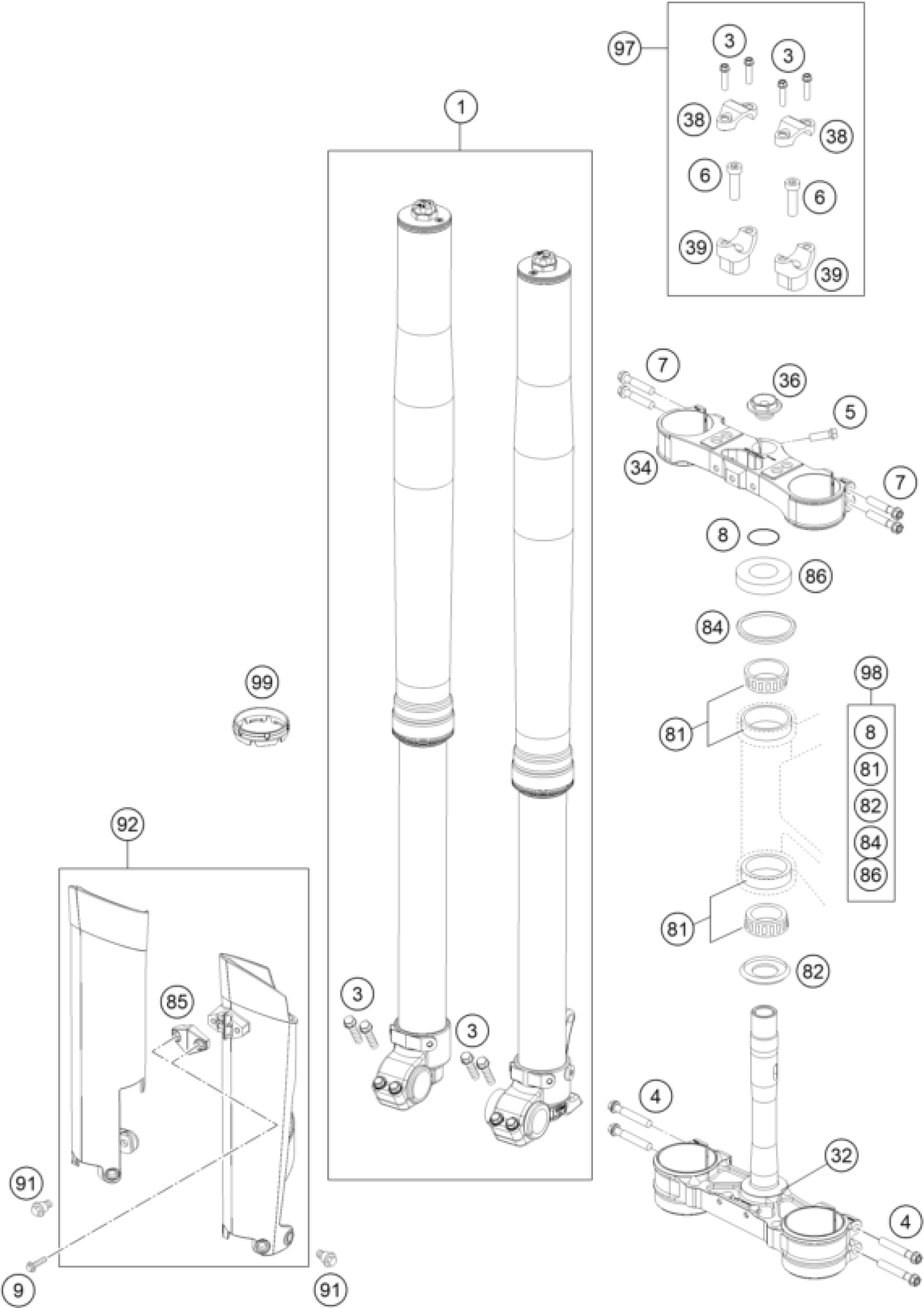

KTM 450 EXC FACTORY EDITION 2015 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork WP 450/500 EXC/XC-W 12

14187L6901

$2,406.46

3

HH collar screw M8x25

0025080256

$2.05

4

HH collar screw M8x50 TX40

0025080506

$3.08

5

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

36

AXLESCREW M20X1.5 SW17

70009082000

$9.44

32

BOTTOM TRIPLE CLAMP CPL.

7770113202004

$373.24

34

TOP TRIPLE CLAMP X=20MM ORANGE

7720103402004

$218.88

38

HANDLEBAR CLAMP 28MM

77201038000

$25.05

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP FOR SPEED CABLE D=6MM 08

7800108500004

$3.15

86

STEERING HEAD COVER

78101086000

$6.07

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROT. L/S+R/S ORANGE

7800109420004

Unavailable

97

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

99

Fork protection ring 62,1mm

48600698

$9.34

7

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11
