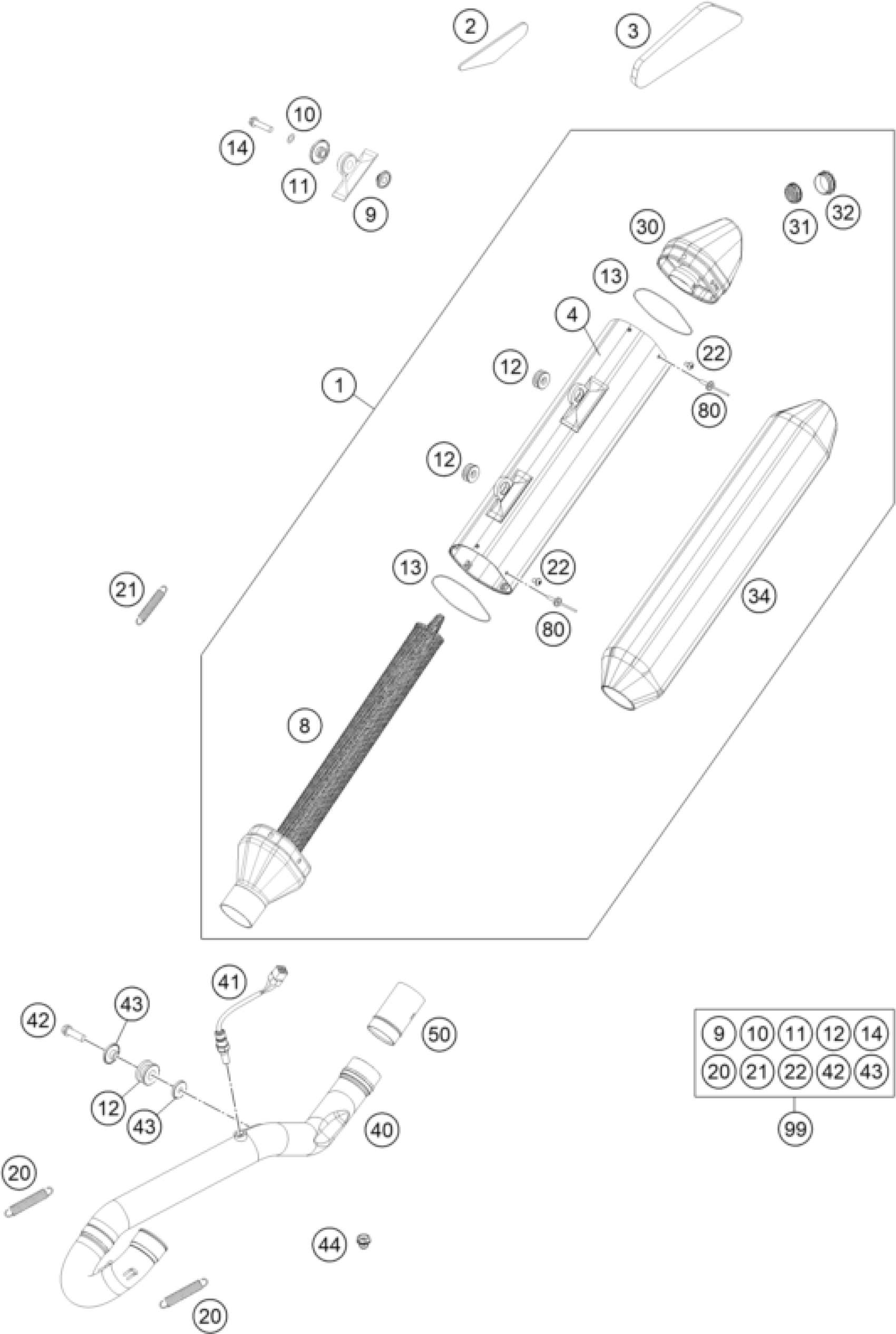

KTM 450 EXC FACTORY EDITION 2015 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER

78705081000

Unavailable

2

THERMAL PROTECTION FOIL 07

77308013050

$9.62

3

THERMAL PROTECTION FOIL

77208013050

$9.53

4

SILENCER HOUSING EXC-F

78705081080

Unavailable

8

CONNECTING CAP CPL.

77705081050

Unavailable

9

BUSHING 7.5x12x20x8.2 11

77205069000

$5.98

10

spring washer DIN 137 B - 6

0137060003

$2.05

11

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

12

DAMP. COMPON. BLACK

77205068000

$6.54

13

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

14

HH collar screw M6x30 TX30

0025060306

$3.08

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

21

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

$7.00

22

SCREW TORX M5X10

78105081010

$2.05

30

END CAP CPL.

78705081060

Unavailable

31

THROTTLE ELEMENT CPL. EXC 07

77005081065

$15.89

32

SIL. ELEMENT EXC-F 07

77005081055

$9.81

34

ROCKWOOL PREFORMED

78905078700

$91.62

40

EXHAUST PIPE EXC W. LAMBDA

78105009000

Unavailable

41

LAMBDA SENSOR

75041090100

$171.19

42

HH collar screw M8x25

0025080256

$2.05

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

$6.54

44

Plug screw M12X1.25 WS17

77405009065

$8.69

50

PLUG IN CAT 2012

78105091000

Unavailable

80

DUMMY RIVET 4,0X12 ALU

0011401200

Unavailable

99

EXHAUST PARTS KIT 12-14

00050000815

Unavailable
