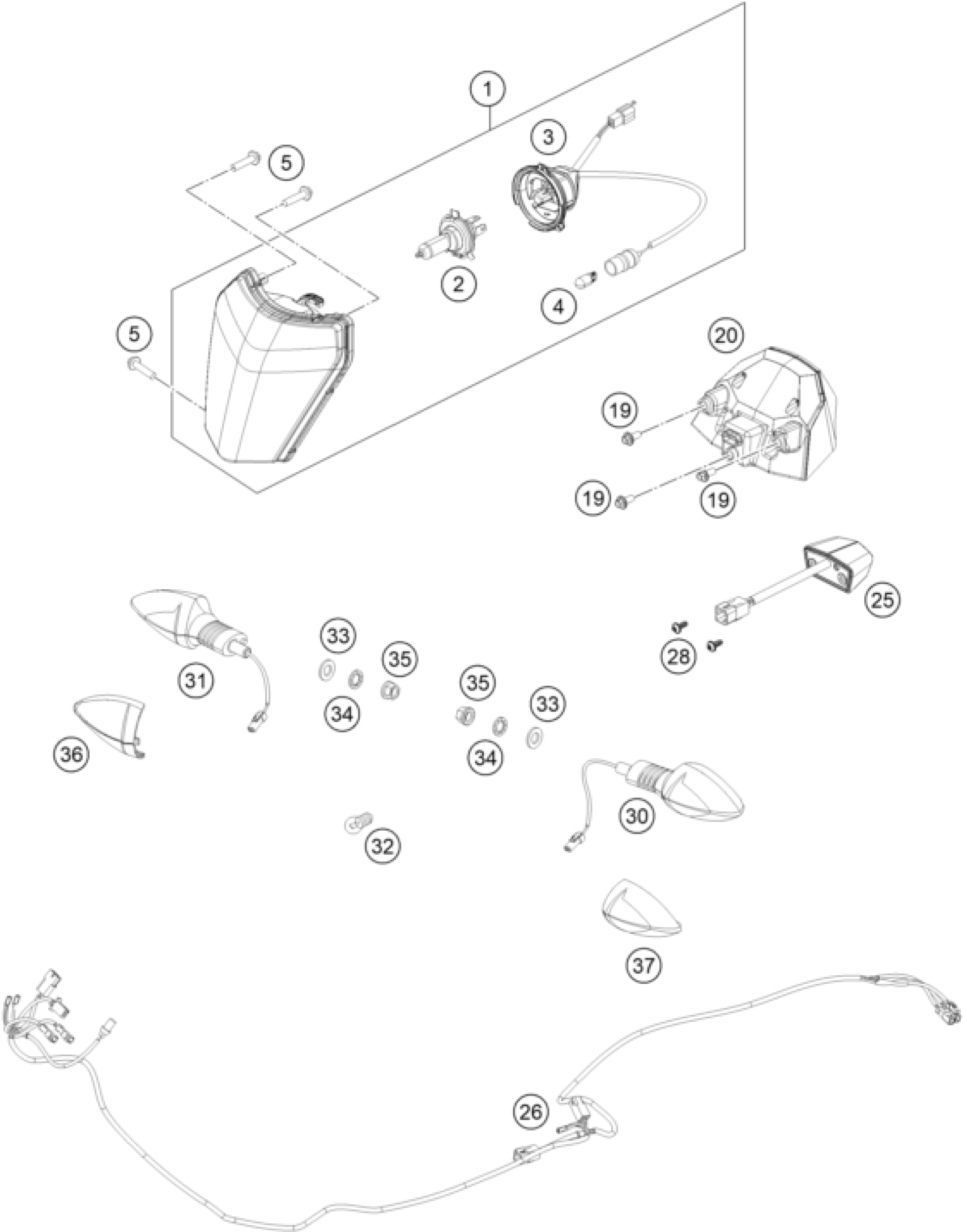

KTM 450 EXC-F SIX DAYS 2017 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT CPL. 2013

78114001000

$140.52

2

BULB HS1 12V 35/35W WHITE

54611038012

$33.28

3

LAMP BRACKET CPL. 2014

78114001050

$44.50

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

5

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

19

HH collar screw M5x12 TX30

0025050126

$3.08

20

REAR LIGHT USA 2014

78114140000

$92.65

25

license plate lighting

60314047000

$35.62

26

TURN SIGNAL WIRING HARNESS

77711081100

$64.97

28

EJOT PT screw K50x12

0081050121

$2.05

30

FLASHER CPL.FRONT L/S REAR R/S

78114025000

$32.72

31

FLASHER CPL.FRONT R/S REAR L/S

78114026000

$32.72

32

BULB 12V ORANGE (RY10W)

60114027000

$6.63

33

washer DIN 125 A 10.5

0125100003

$2.05

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

36

FLASHER LENS L/S R/S TRANSP.

78114028000

$8.50

37

FLASHER LENS FRO.L/S-REAR R/S

78114027000

$8.50
