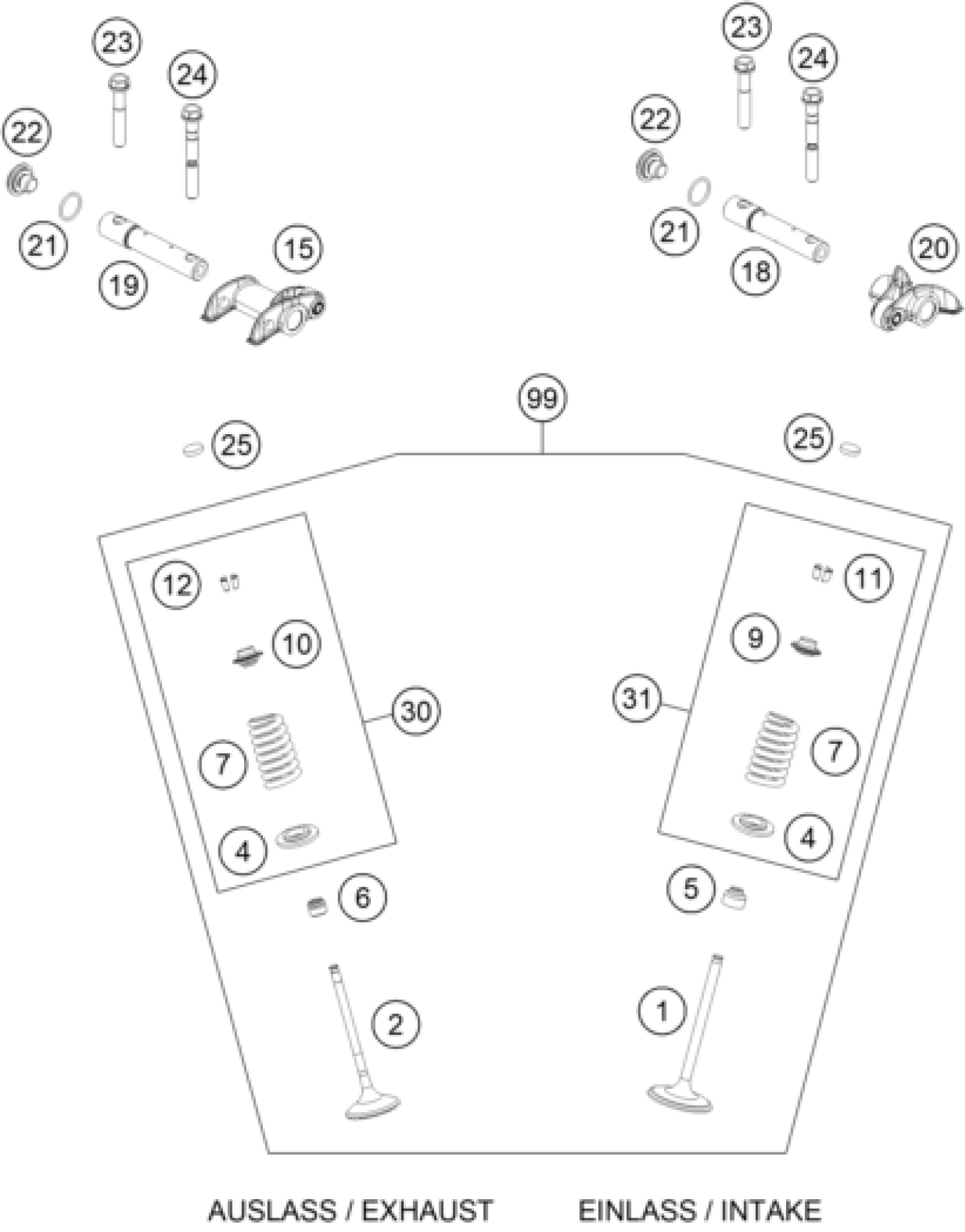

KTM 450 EXC-F 2017 VALVE DRIVE Diagram

#

Description
Price

1

INTAKE VALVE

78936030100

$169.74

2

EXHAUST VALVE

78036031000

$64.60

4

VALVE SPRING HOLDER

78936036000

$9.62

5

VALVE-STEM SEALING RACING

59036027000

$5.98

7

VALVE SPRING

78936028000

$21.87

9

VALVE SPRING RETAINER

78936032100

$26.45

11

VALVE COLLET 07

77336033100

$3.08

15

ROCKER ARM EXHAUST CPL.

78936061144

$158.66

18

ROCKER ARM SHAFT INTAKE

79436056100

$139.40

19

ROCKER ARM SHAFT EXHAUST

79436057000

$51.42

20

ROCKER ARM INTAKE CPL.

79436560044

$146.32

21

O-RING 15,00X1,50 VITON

0770150151

$3.08

22

PLUG M10X1,25

79436081000

$5.98

23

SPECIAL SCREW M7X40 WS10

77036080000

$3.08

24

FIT BOLT M7X1X55

78036080000

$4.11

25

SHIM D=8,9/1,72

77036035172

Unavailable

25

SHIM D=8,9/1,76

77036035176

Unavailable

25

SHIM D=8,9/1,80

77036035180

Unavailable

25

SHIM D=8,9/1,84

77036035184

Unavailable

25

SHIM D=8,9/1,88

77036035188

Unavailable

25

SHIM D=8,9/1,92

77036035192

Unavailable

25

SHIM D=8,9/1,96

77036035196

Unavailable

25

SHIM D=8,9/2,00

77036035200

Unavailable

25

SHIM D=8,9/2,04

77036035204

Unavailable

25

SHIM D=8,9/2,08

77036035208

Unavailable

25

SHIM D=8,9/2,12

77036035212

Unavailable

25

SHIM D=8,9/2,16

77036035216

Unavailable

25

SHIM D=8,9/2,20

77036035220

Unavailable

25

SHIM D=8,9/2,24

77036035224

Unavailable

25

SHIM D=8,9/2,28

77036035228

Unavailable

25

SHIM D=8,9/2,32

77036035232

Unavailable

25

SHIM D=8,9/2,36

77036035236

Unavailable

25

SHIM D=8,9/2,40

77036035240

Unavailable

25

SHIM D=8,9/2,44

77036035244

Unavailable

25

SHIM D=8,9/2,48

77036035248

Unavailable

25

SHIM D=8,9/2,52

77036035252

Unavailable

25

SHIM D=8,9/2,56

77036035256

Unavailable

25

SHIM D=8,9/2,60

77036035260

Unavailable

30

VALVE SPRING KIT EXHAUST

78136029044

Unavailable

99

VALVE KIT 450/500 EXC 14-15

78136030010

Unavailable

6

VALVE-STEM SEALING 05

77036027000

$6.44

10

VALVE SPRING SUPPORT

78136032000

$20.09

12

valve collet

77036033000

$5.23

31

VALVE SPRING KIT INTAKE 16

78136028144

Unavailable
