Description

Price

1

HANDLEBAR D=28MM

7800200100017

$173.43

3

LIGHT SWITCH L/S 08

76511070000

$110.04

4

STARTER CONTROL 04

59411074000

$42.91

5

ENGINE STOP SWITCH CEV

50311074100

$58.80

6

CLAMP ENGINE STOP SWITCH

50311074050

$3.08

7

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

8

HAND GUARDS CPL.L/S+R/S OR. 06

7700207900004

$34.85

13

THROTTLE GRIP CPL. 4-ST. 09

77002010100

$44.59

17

GRIP-SET GRAY/ORANGE 09

54802021200

$22.71

18

Cable tie 200/4.6mm black

44011076200

$1.49

30

MASTER CYLINDER CPL. 06

54802030044

$240.57

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 06

54802032000

$49.92

33

COVER HYD. CLUTCH CPL.

54802003000

$33.46

34

VALVE

54802051000

$19.16

35

BOLT KPL.

54802052000

$29.35

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

CLAMP CPL. 06

54802005100

$25.80

40

Clamp for mirror

58012040150

$22.81

41

MIRROR L/S 98

58412040000

$36.92

41

MIRROR R/S 98

58412041000

$36.92

42

Push rod cmpl.

54802046000

$23.46

43

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

63

CLUTCH PIPE 06

54832063000

$100.32

92

THROTTLE CABLE 250 SXF 2005

77002091000

$75.17

10

BAR PAD CPL.

77202002100

$22.94

11

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

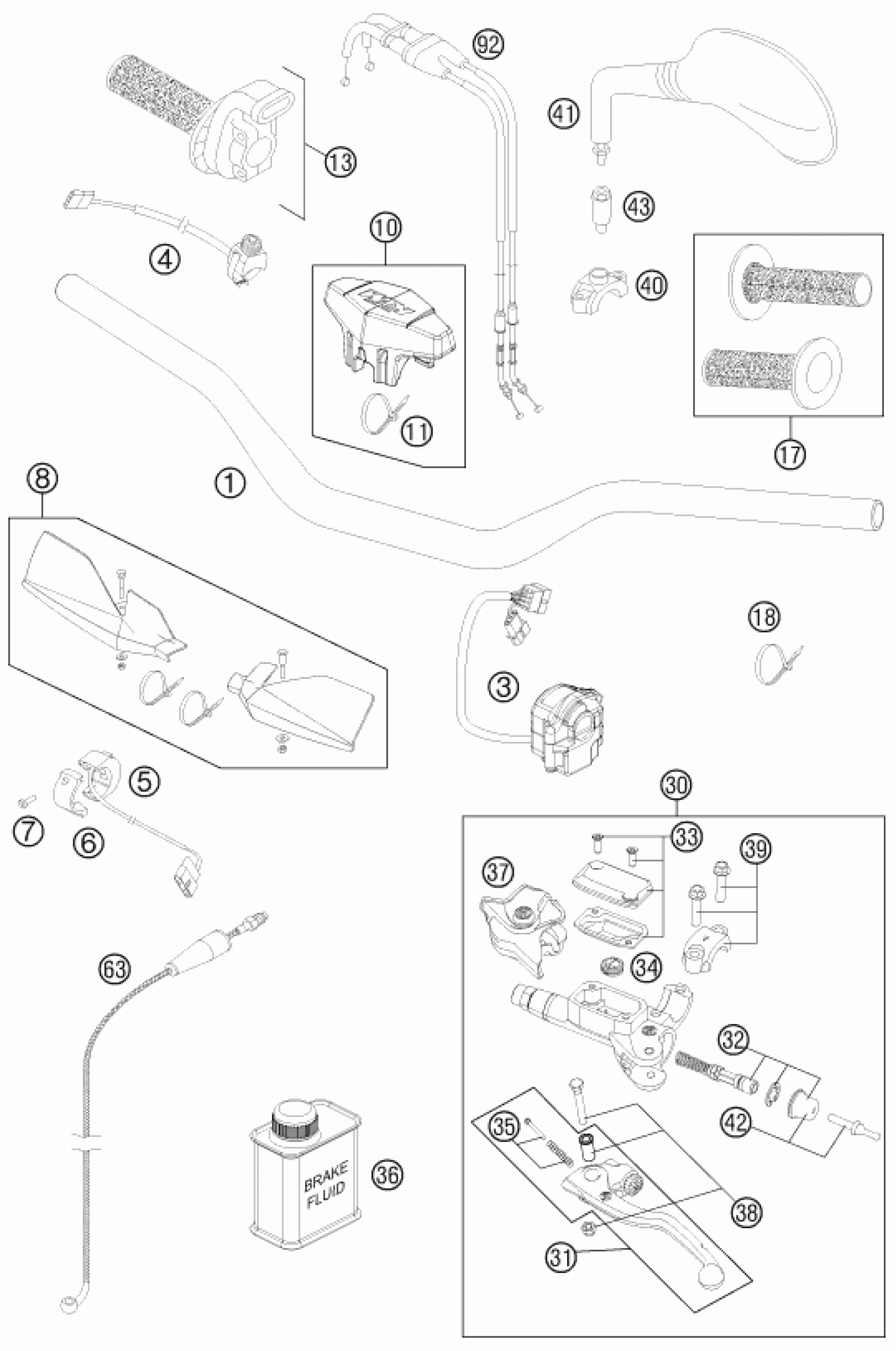

KTM 450 EXC 2011 HANDLEBAR, CONTROLS Diagram
