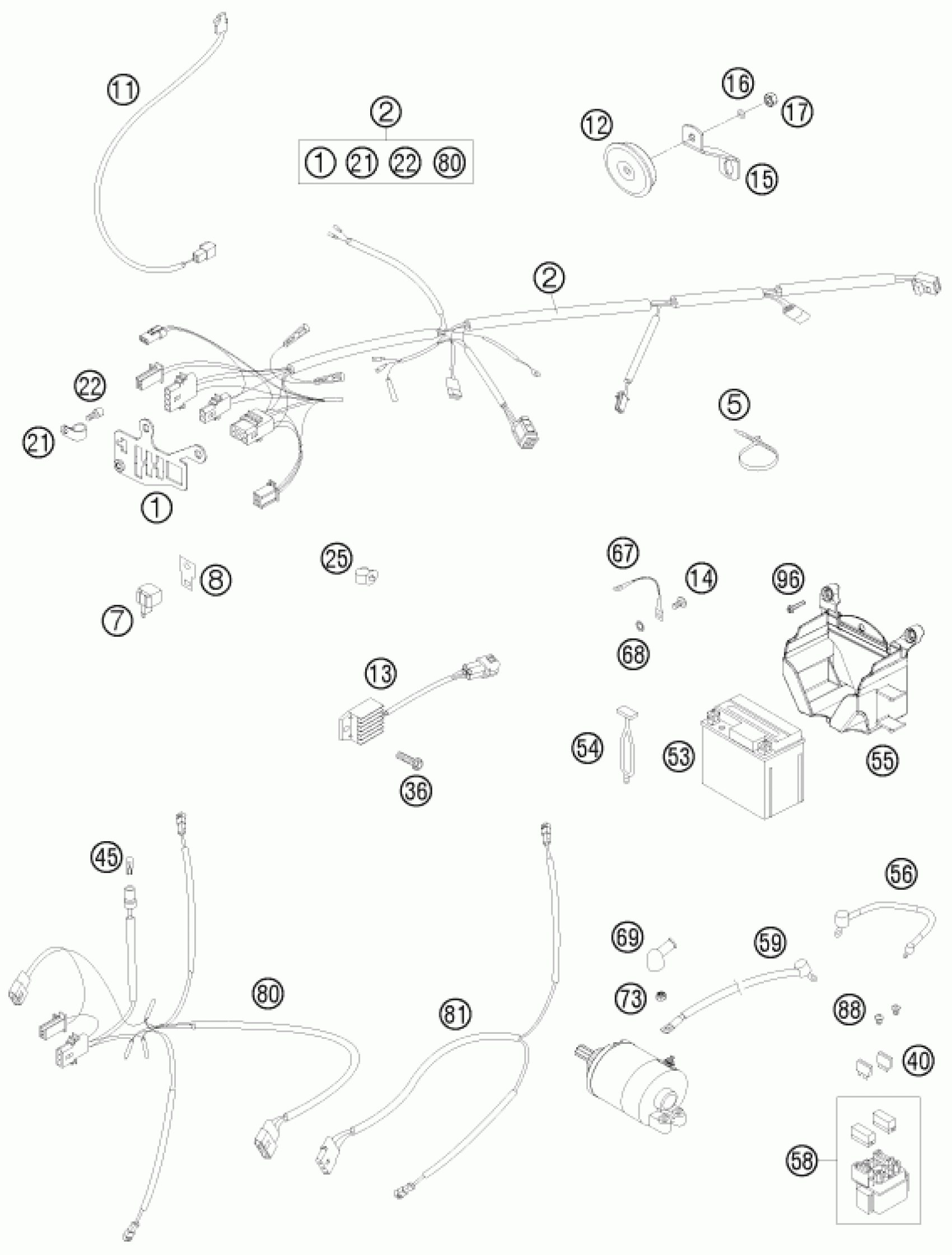

KTM 450 EXC 2009 WIRING HARNESS Diagram

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

FLASH. WIRING HAR. EXC-S USA07

59411080100

$53.04

FLASH. WIRINGHARNESS REAR 06

59011081100

$23.46

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

SUPPORT BRACKET EXC 2005

54811083100

$16.82

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

WIRING HARNESS EXC-S USA 07

59411075244

$89.70

CABLE TIE 100/2,5MM BLACK

44011076100

$1.49

Cable tie 200/4.6mm black

44011076200

$1.49

FLASHER UNIT 97

44611207200

$49.83

BRACKET FOR FLASHER RELAY

58211031100

$5.70

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

DC HORN 12V 07

50311060200

$32.44

VOLTAGE REGULATOR 04

80011034000

$99.57

SPECIAL SCREW M 5,0X10

0009050103

$2.05

HORN BRACKET EXC 08

78011061000

$5.23

WASHER DIN0125-A 5,3

0125050003

$1.49

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

SHCS DIN 912 M5x8

0912050083

$1.49

Starter reley 12V 99

58211058000

$72.64

STARTERCABLE 700 MM '97

58411059100

$23.65

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

HH collar screw M6x12 TX30

0025060126

$3.08

Plug-in fuse, big 10A

58011109110

$2.05

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

BATTERY 12V 4AH YTX5L-BS

58511053000

$112.10

RUBBER L=145MM

50303018000

$6.44

BATTERY CASE EXC 08

78011055000

$4.03

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42
