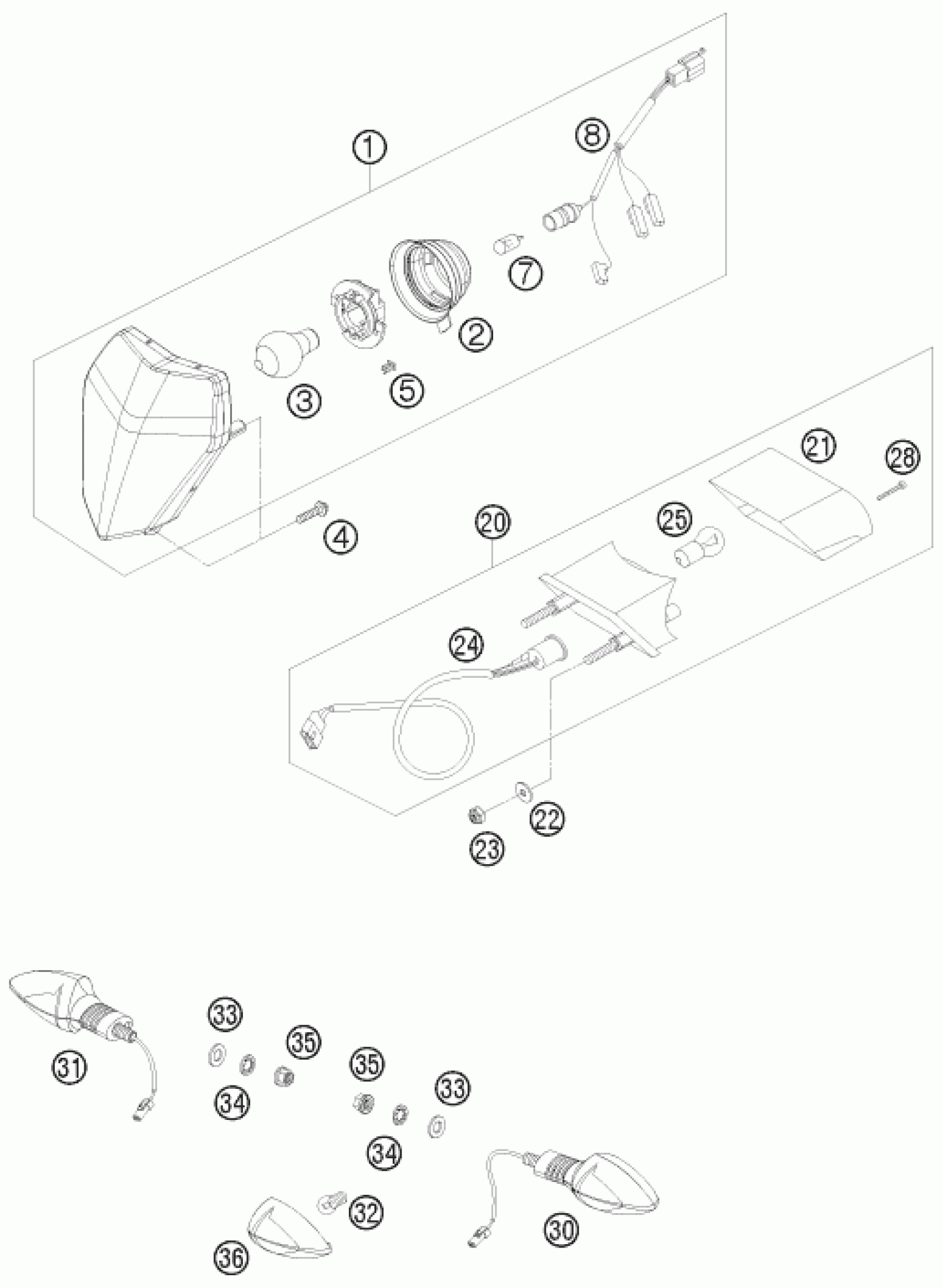

KTM 450 EXC 2009 LIGHTING SYSTEM Diagram

CABLE FOR HEAD LIGHT 2005

54811001050

$14.39

REAR LIGHT CPL. EXC 07

50314040200

$80.96

WIRING HARNESS REAR 125-380'98

50311076000

$27.39

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

SHEET MET. SCR. DIN7981 3,5X32

0981350323

$1.49

FLASHER CPL.FRONT L/S REAR R/S

60114025000

$30.00

FLASHER CPL.FRONT R/S REAR L/S

60114026000

$30.00

BULB 12V ORANGE (RY10W)

60114027000

$6.63

washer DIN 125 A 10.5

0125100003

$2.05

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

FLASHER LENS L/S R/S TRANSP.06

60114028000

$5.51

Self lock. nut DIN985-M6-A2

0985060003

$2.05

REAR LIGHT LENS 125-380 EGS'98

50314041100

$27.48

Washer DIN9021-A 6.4

0021060003

$2.05

HEAD LIGHT CPL. EXC-EU 08

78014001000

$116.12

RUBBER CAP FOR HEAD LIGHT 05

54814001050

$10.93

BILUX-BULB 12V 35/35W BA20D

44111038000

$16.17

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

DRAIN HOLE COVER

78014009000

$3.08
