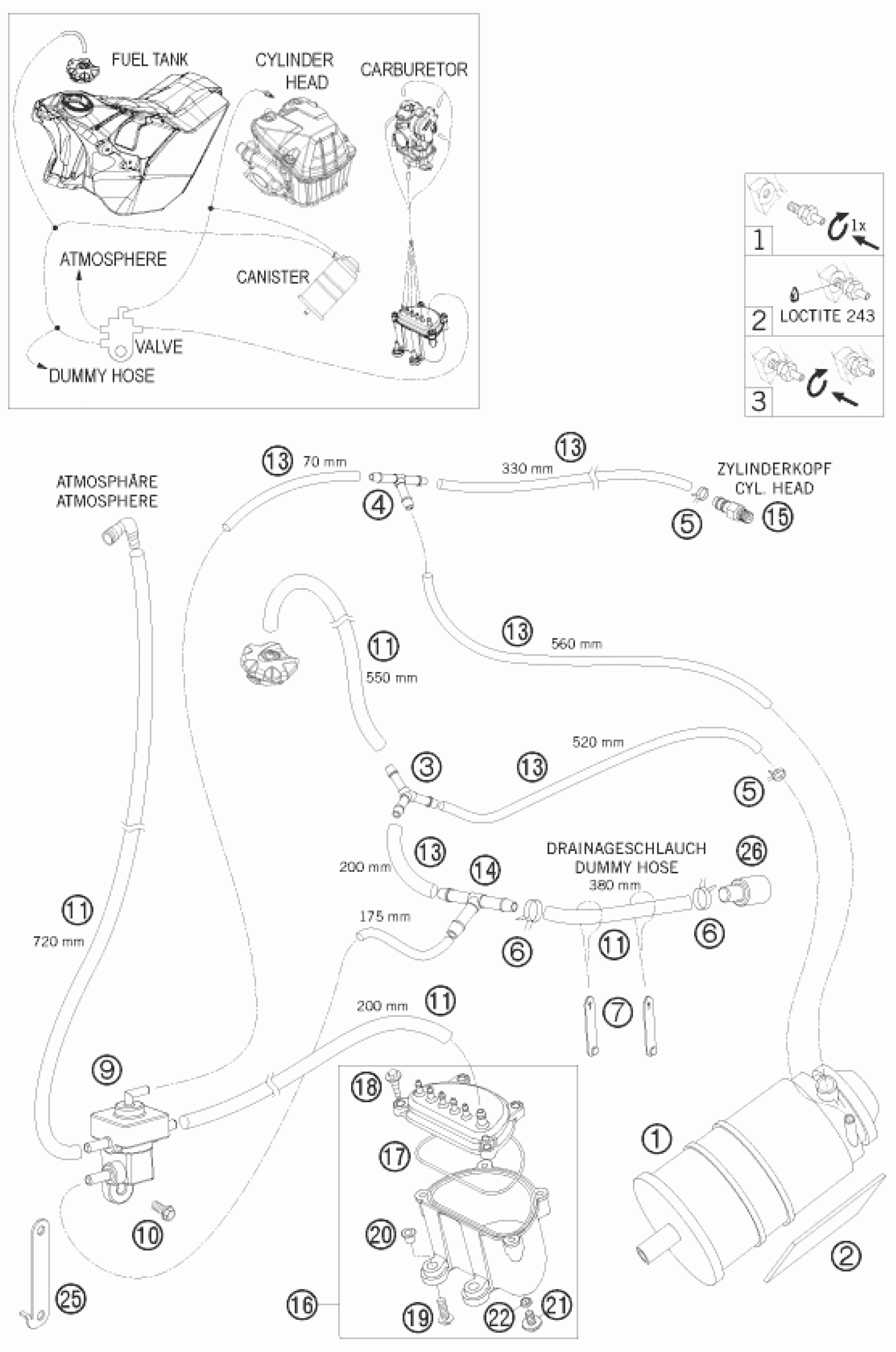

KTM 450 EXC 2009 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

EVAPORATIVE CANISTER 08

59415001100

$32.90

2

METAMOLL 90X45X3MM 03

59003001099

$2.05

3

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

$5.23

4

T-CONNECTOR NORMA TS-4 07

59415021000

$4.52

5

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

6

HOSE CLAMP YDNAC 10119 11MM

50231005000

Unavailable

7

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

9

VALVE MIKUNI CI-41-05

60015031000

$134.78

10

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

14

T-connector TS-6 03

60015022000

$5.98

15

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

16

INTERCEPTING TANK UNIVERSAL 07

59431096100

$34.24

17

O-RING 76,00X2,00 VITON

0770760021

$5.32

18

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

19

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

20

spacer bushing for speedometer

58314060050

$5.23

21

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

22

O-RING 6,07X1,78 FPM75

0770060018

$2.05

25

RETAIN. PLATE VALVE MIKUNI 08

78015031020

$5.88

26

PLUG D=6/10 08

78015026000

$5.23

11

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

13

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable
