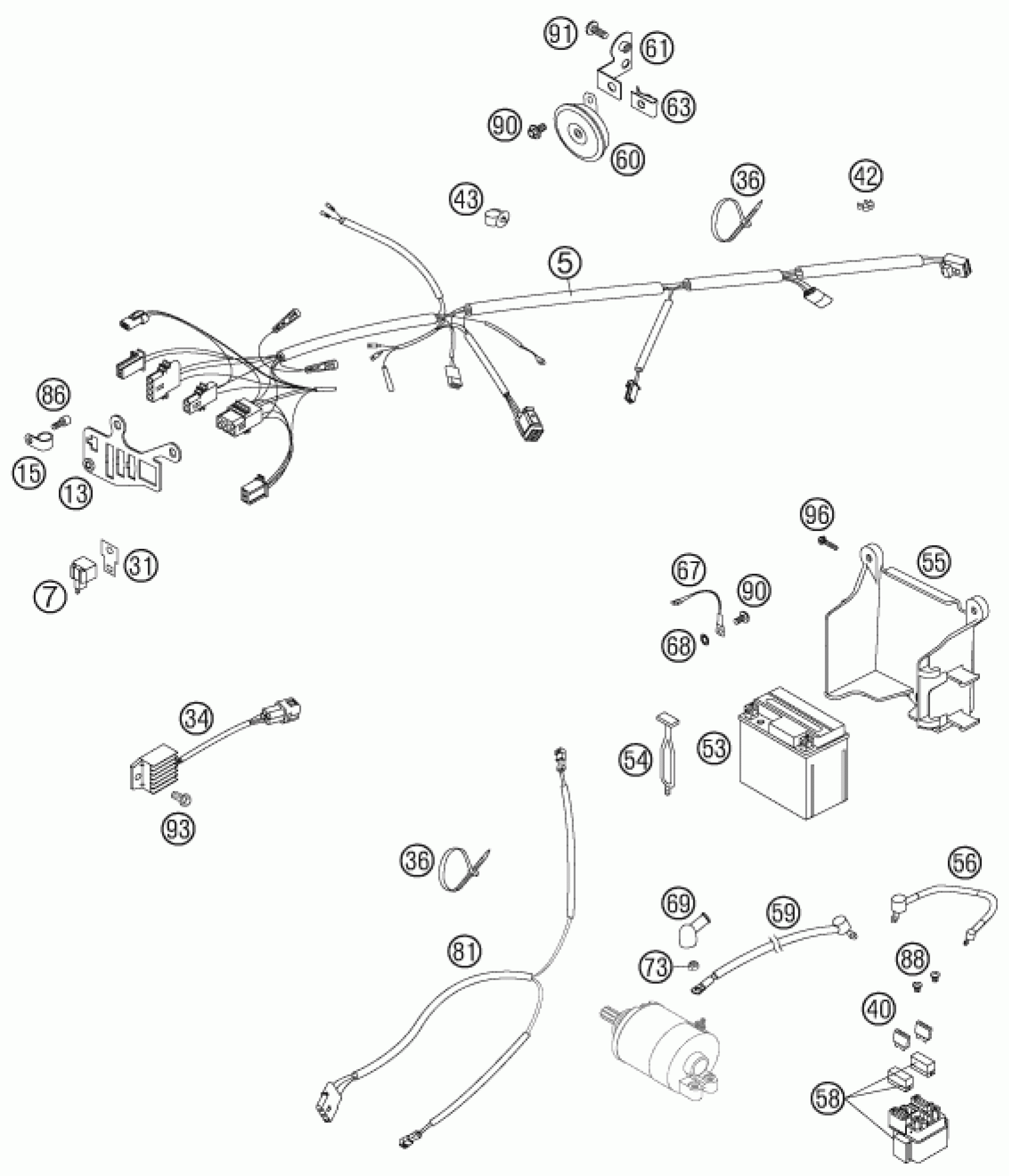

KTM 450 EXC <2007> WIRING HARNESS Diagram

#

Description
Price

96

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

5

WIRING HARNESS EXC-S USA 07

59411075244

$89.70

7

FLASHER UNIT 97

44611207200

$49.83

13

SUPPORT BRACKET EXC 2005

54811083100

$16.82

15

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

31

BRACKET FOR FLASHER RELAY

58211031100

$5.70

34

VOLTAGE REGULATOR 04

80011034000

$99.57

36

Cable tie 200/4.6mm black

44011076200

Unavailable

36

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

40

Plug-in fuse, big 10A

58011109110

$2.05

42

WIRING HOLDER 12MM

57013072000

Unavailable

42

WIRING HOLDER 16MM

57013072100

Unavailable

43

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

53

BATTERY 12V 4AH YTX5L-BS

58511053000

$112.10

54

RUBBER L=145MM

50303018000

$6.44

55

BATTERY CARRIER PLAST.BLACK 05

59011055100

$10.84

56

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

58

Starter reley 12V 99

58211058000

$72.64

59

STARTERCABLE 700 MM '97

58411059100

$23.65

60

DC HORN 12V K80/L LEB

50311060000

$32.16

61

BRACKET 2001

59011061000

$8.59

63

clip nut M6

54603048100

$4.11

67

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

68

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

69

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

81

FLASH. WIRINGHARNESS REAR 06

59011081100

$23.46

86

SHCS DIN 912 M5x8

0912050083

$1.49

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

90

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

91

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

93

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
