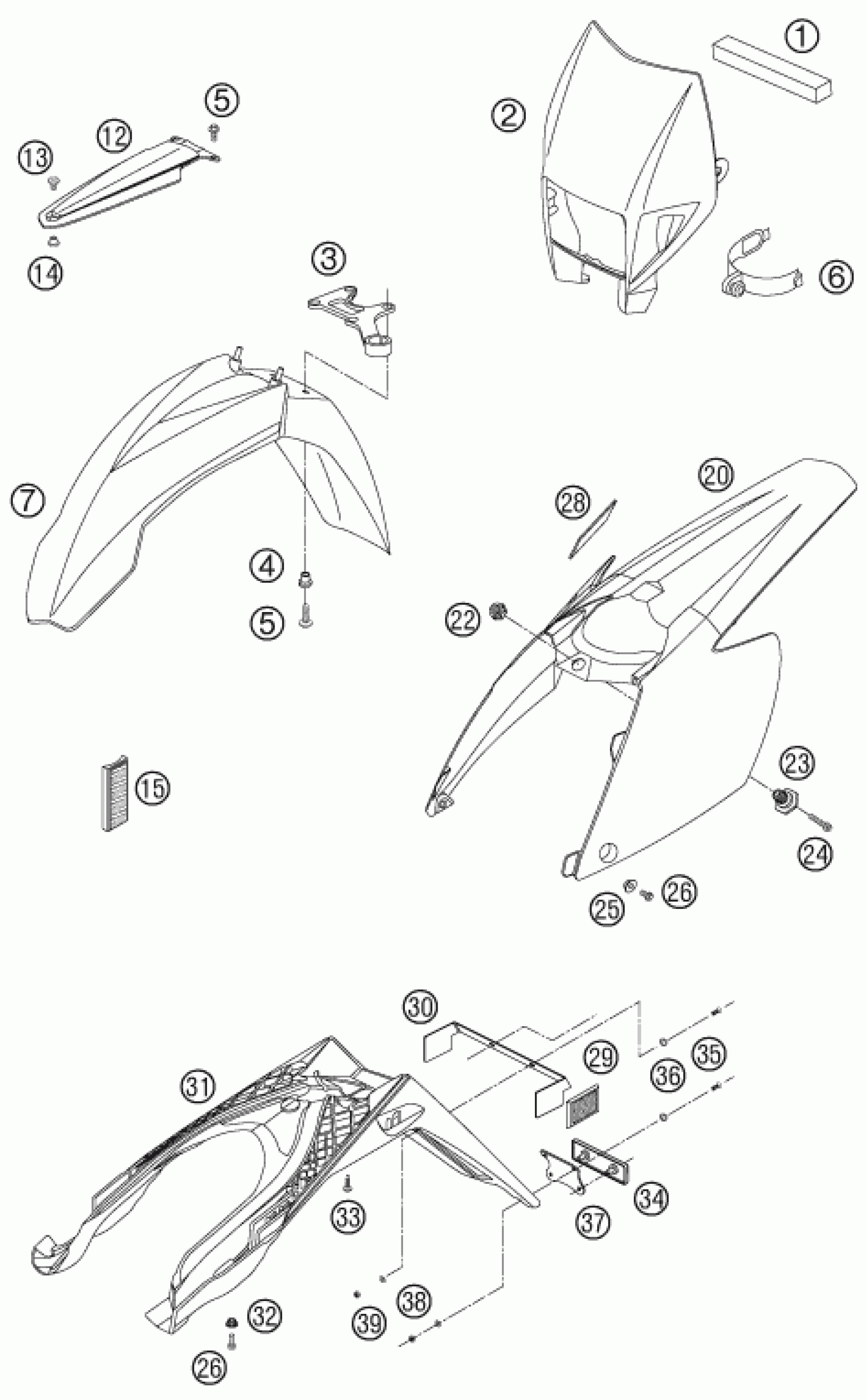

KTM 450 EXC <2007> MASK, FENDERS Diagram

#

Description
Price

1

FOAM 4X9MM PER METER

58211001063

$1.96

2

HEADLIGHT MASK EXC/EGS'99

5030800100004

$29.35

3

BRAKE HOSE GUIDE 2000

59008019000

$4.11

4

SPACER BUSHING 7X10X7,5

50208020000

$4.11

5

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

6

MASK RUBBER UFO WP '95

50211086000

$8.03

15

REFLECTOR YELLOW '99

58412080100

$7.75

20

REAR PART EXC ORANGE 04

5480801310004

$75.35

7

FENDER FRONT WIDE ORANGE 03

5030801030004

$29.63

12

FENDER BRACE BLACK '99

50308009100

$9.46

13

SCREW FEND.BRACE M8X9 WS=17

50308009050

$5.23

14

NUT FENDER BRACE M8 WS=17

50308009051

$5.23

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

24

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

25

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

26

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

28

METAMOLL 90X45X3MM 03

59003001099

$2.05

31

NUMBER PLATE CARRIER LONG 04

54808015100

$17.51

32

BUSH FOR FENDER 6X11X20X5 MM

50308052100

$5.23

33

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

34

REFLECTOR RED

58412080000

$5.23

35

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

36

WASHER 6MM

40006006000

$1.49

37

BRACKET FOR REFLECTOR

58412080050

$6.07

38

WASHER DIN0125-A 5,3

0125050003

$1.49

39

Self locking nut DIN 985 M5

0985050003

$2.05

29

SIDE REFLECTOR RED REAR

16512180100

$7.10

30

BRACKET SIDE REFLECTOR 06

62512081000

$27.95
