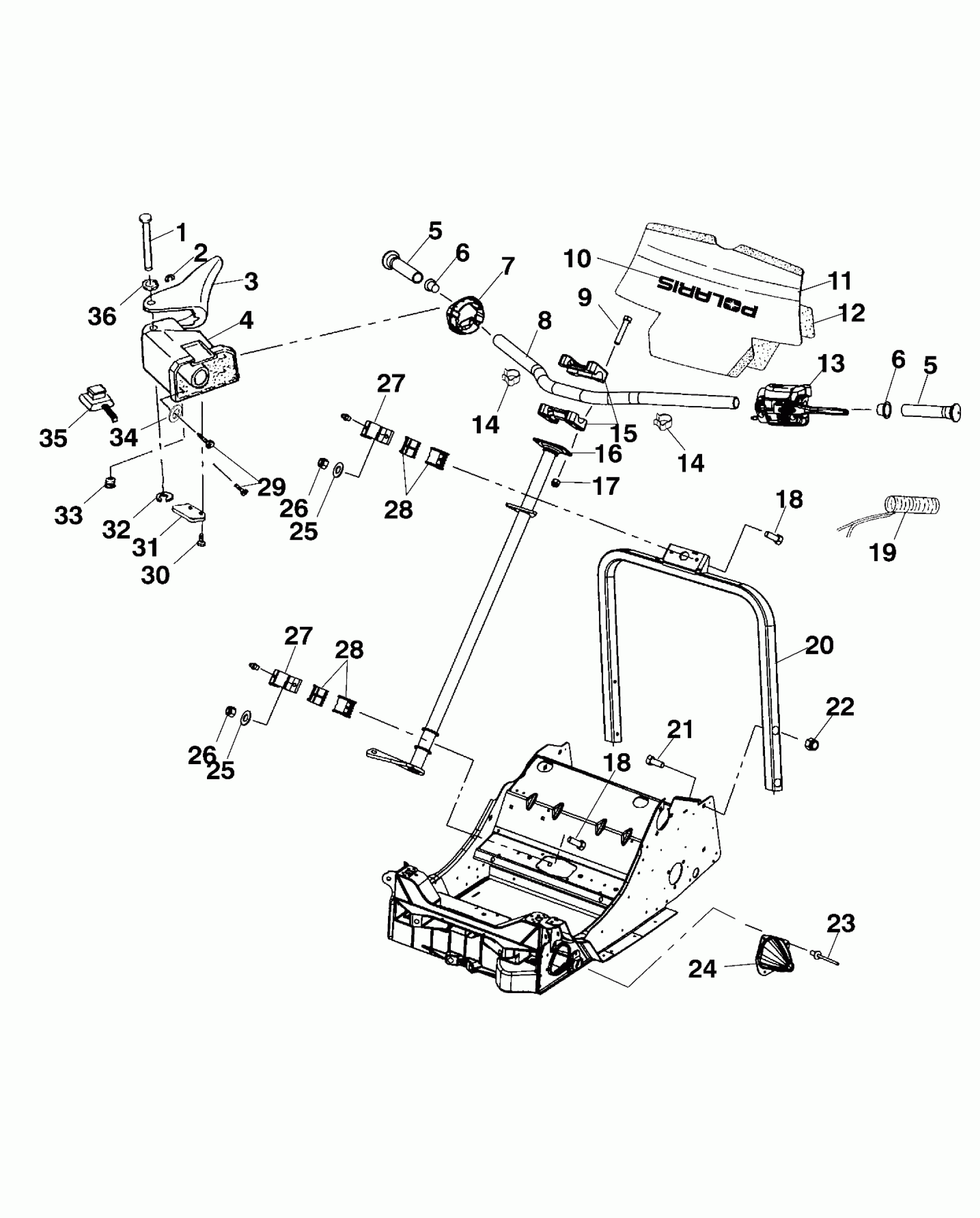

Polaris 440 XCR SP - 099NX4CS STEERING - HANDLEBAR - 099NX4CS (4953455345B005) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

3

THROTLE,LEVER,35.5MM

5432970

$29.03

3

LEVER ASM,HTR,HI/LO 35.5MM

2010171

$84.98

4

BLOCK,THROTTLE/BRAKE

5431592

$49.99

5

GRIP,H'BAR,SNOW

5432634

$24.27

5

GRIP,H'BAR,SNOW

5432634

$24.27

6

PLUG, OVERFLOW,(10)

5431096

$2.02

6

PLUG, OVERFLOW,(10)

5431096

$2.02

7

ADAPTOR,BLOCK,THROTTLE Substituted by 5433345

5432971

Unavailable

8

BAR-HANDLE,BLK

5243560-067

$40.84

9

SCREW,(10)

7517238

$4.79

10

KIT,DECAL APPLIC.,VINYL

2200891

Unavailable

10

DECAL"POLARIS",VINYL

7076468

Unavailable

11

HANDLEBAR CVR W/243 DECAL,ASM.

2682523

Unavailable

12

PAD,HANDLEBAR

5811839

Unavailable

13

Asm., Control, LH (See Brake Pg. A14, Ref. 11)

-------

Unavailable

14

CLIP, TINNERMAN

7080278

$2.63

14

CLIP, TINNERMAN

7080278

$2.63

15

BLOCK,HANDLEBAR

5630187-067

$44.99

16

WELD-STEERING POST,BLK

1823187-067

Unavailable

17

NUT-LOCK(10)

7542122

$1.49

18

BOLT-CARR 5/16-X1"GR5 Y LO(10)

7517579

$6.39

18

BOLT-CARR 5/16-X1"GR5 Y LO(10)

7517579

$6.39

19

HEATER,GRIP,LO/MED/HI

2460677

$60.70

20

HOOP,STEERING,BLK

1012673-067

Unavailable

21

BOLT,(10)

7517428

$2.39

22

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

23

POP RIVET(50)

7621323

$1.49

24

BOOT,TIE ROD,LH

5433126

Unavailable

24

BOOT,TIE ROD,RH

5433127

Unavailable

25

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

25

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

26

NUT-5/16-18 NYLOK-Y

7542324

$1.49

26

NUT-5/16-18 NYLOK-Y

7542324

$1.49

27

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

BRKT,STEER.POST

5131841

Unavailable

27

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

BRKT,STEER.POST

5131841

Unavailable

28

BUSHING,STEER.POST

5432785

$6.39

28

BUSHING,STEER.POST

5432785

$6.39

29

SCREW-SEMS(10)

7511848

$3.99

30

SCREW(10)

7511858

$3.99

31

HOLDER-WIRE

5432261

$24.27

32

RING-RETAINING EXTERNAL

7710401

$3.99

33

SCREW(10)

7512465

$3.99

34

RIVET BURR(50)

7555727

$1.49

35

SWITCH,AUX.SHUT-OFF

4110106

$94.99

36

WASHER(10)

7555730

$3.99
