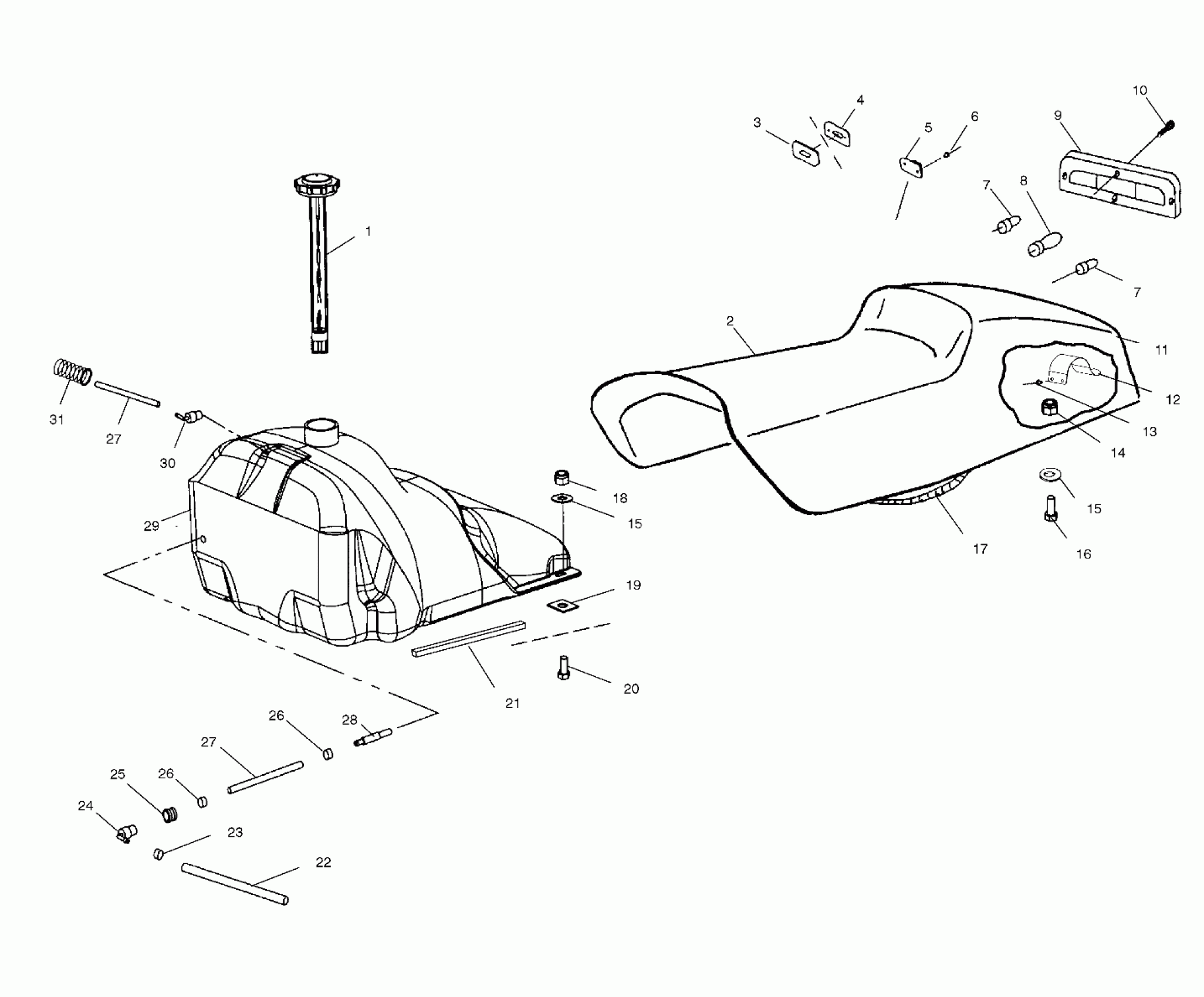

Polaris 440 XCR SP - 099NX4CS SEAT AND GAS TANK - 099NX4CS (4953455345A006) Diagram

#

Description
Price

1

CAP,GAS,W/GAUGE,2 1/2"

2511277

Unavailable

2

SEAT ASM (Incl. 2-12,17)

2682387

$484.99

2

COVER,ASM,SEAT

2682490

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

HOUSING-TAILLIGHT

5433341

Unavailable

12

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

13

RIVET(50)

7621472

$1.49

14

NUT,WELD,TAB 1/4-20T-L0K

7547114

$2.63

15

WASHER(10)

7558301

$1.49

15

WASHER(10)

7558301

$1.49

16

BOLT(10)

7512240

$3.99

17

Harness, Taillight

2460399

Unavailable

17

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67

18

NUT-LOCK(10)

7542122

$1.49

19

SPEED NUT(10)

7670021

$6.99

20

BOLT(10)

7512193

$2.39

21

PAD-GAS TANK

5810063

$4.95

22

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

23

HOSE CLAMP, RED

7080003

$1.49

24

FITTING,1/4" 90� DEX

7052259

Unavailable

25

GROMMET-TANK FITTING(10)

7052028

$6.39

26

RING, COMPRESSION(10)

7080402

$1.60

26

RING, COMPRESSION(10)

7080402

$1.60

27

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

27

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

28

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

29

FUEL TANK,EDGE (Incl. 28-30)

2520150

$219.99

30

FITTING,90 DEGREE

7052065

$7.19

31

SPRING,PROTECT VENTHOSE

7041643

$3.51
