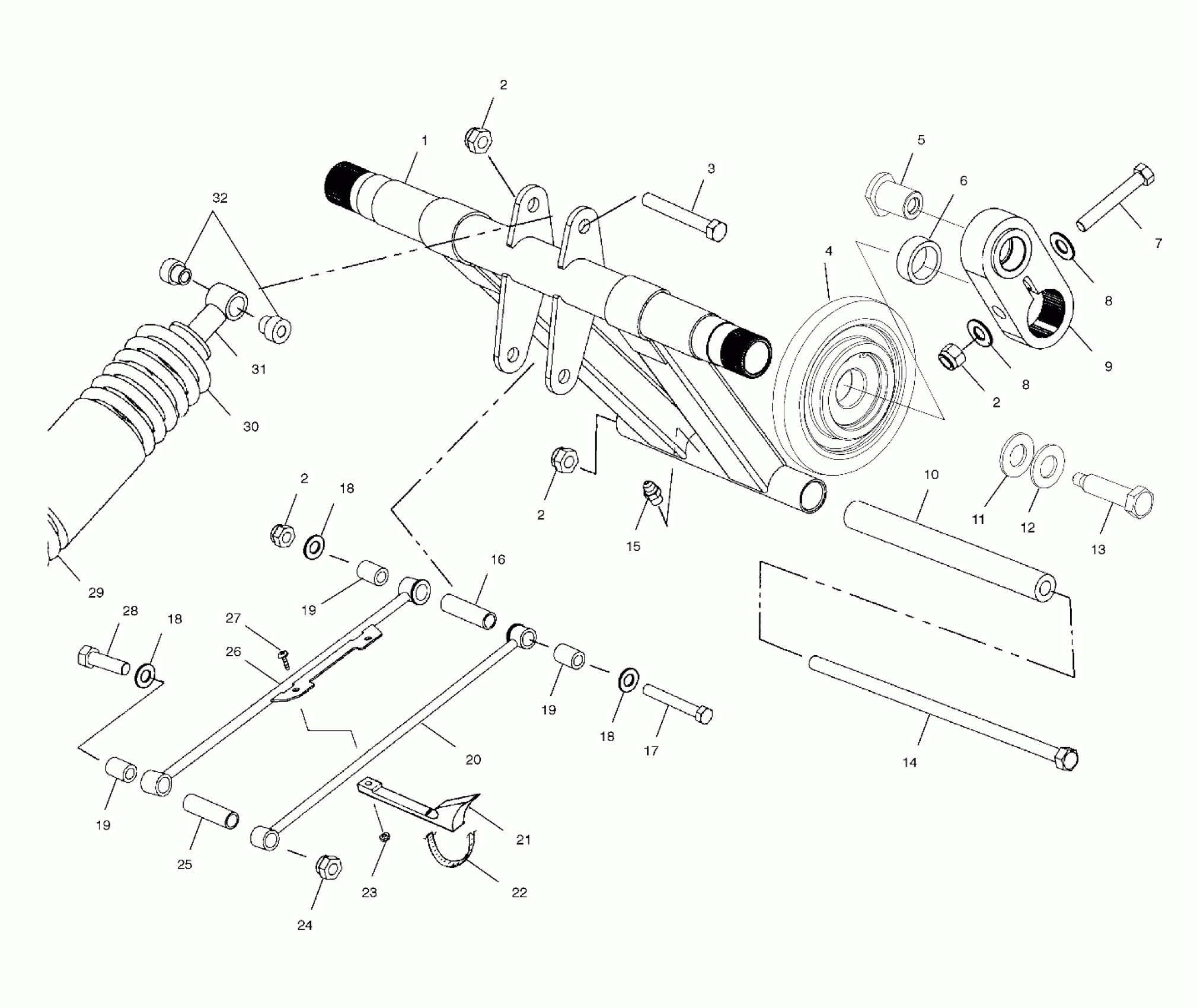

Polaris 440 XCR SP - 099NX4CS REAR TORQUE ARM - 099NX4CS (4953455345B013) Diagram

#

Description
Price

1

TORQUE ARM,REAR,BLK.

1541352-067

Unavailable

2

NUT-LOCK(10)

7542439

$1.49

2

NUT-LOCK(10)

7542439

$1.49

2

NUT-LOCK(10)

7542439

$1.49

2

NUT-LOCK(10)

7542439

$1.49

3

BOLT(10)

7515417

$4.79

4

WHEEL,ASM,5.60 OD,2.42 ID

1541349

Unavailable

5

SHAFT-ARM

5333758

Unavailable

6

BUSHING-ARM

3514331

$19.99

7

BOLT(10)

7515438

$4.79

8

WASHER(10)

7555806

$1.49

8

WASHER(10)

7555806

$1.49

9

ARM,MACHINED (Incl. 6)

5132072

Unavailable

10

Shaft

5333536

Unavailable

11

WASHER(10)

7555893

$1.49

12

WASHER(10)

7552603

$1.49

13

Bolt

7517435

$14.99

14

Screw

7517232

$19.99

15

ZERK,FITTING,THREADED(10)

7080433

$1.49

16

SPACER

5333751

Unavailable

17

BOLT(10)

7515514

$7.19

18

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

18

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

18

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

19

BUSHING

5131940

$3.19

19

BUSHING

5131940

$3.19

19

BUSHING

5131940

$3.19

20

SHOCK ROD

1541378-067

Unavailable

21

MOUNT-RESERVOIR,MACHINED

5132068

Unavailable

22

CLAMP,BAND,NARROW

7080413

$3.19

23

NUT-LOCK(10)

7542122

$1.49

24

BUSHING-NUT,.616X.860X.750 HEX

5132069

$19.99

25

SPACER

5333752

$4.76

26

SHOCK ROD,15.197,BLK

1541356-067

Unavailable

27

SCREW(10)

7515111

$7.19

28

SCREW

7517634

$3.19

29

SPRING-COMP,150 LB/INX13,BLK

7041796-067

Unavailable

30

RETAINER-SPRING

5132064

$47.29

31

SHOCK-REAR TRACK

7041791

Unavailable

32

BUSHING-REAR TRACK SHOCK

5333753

Unavailable
