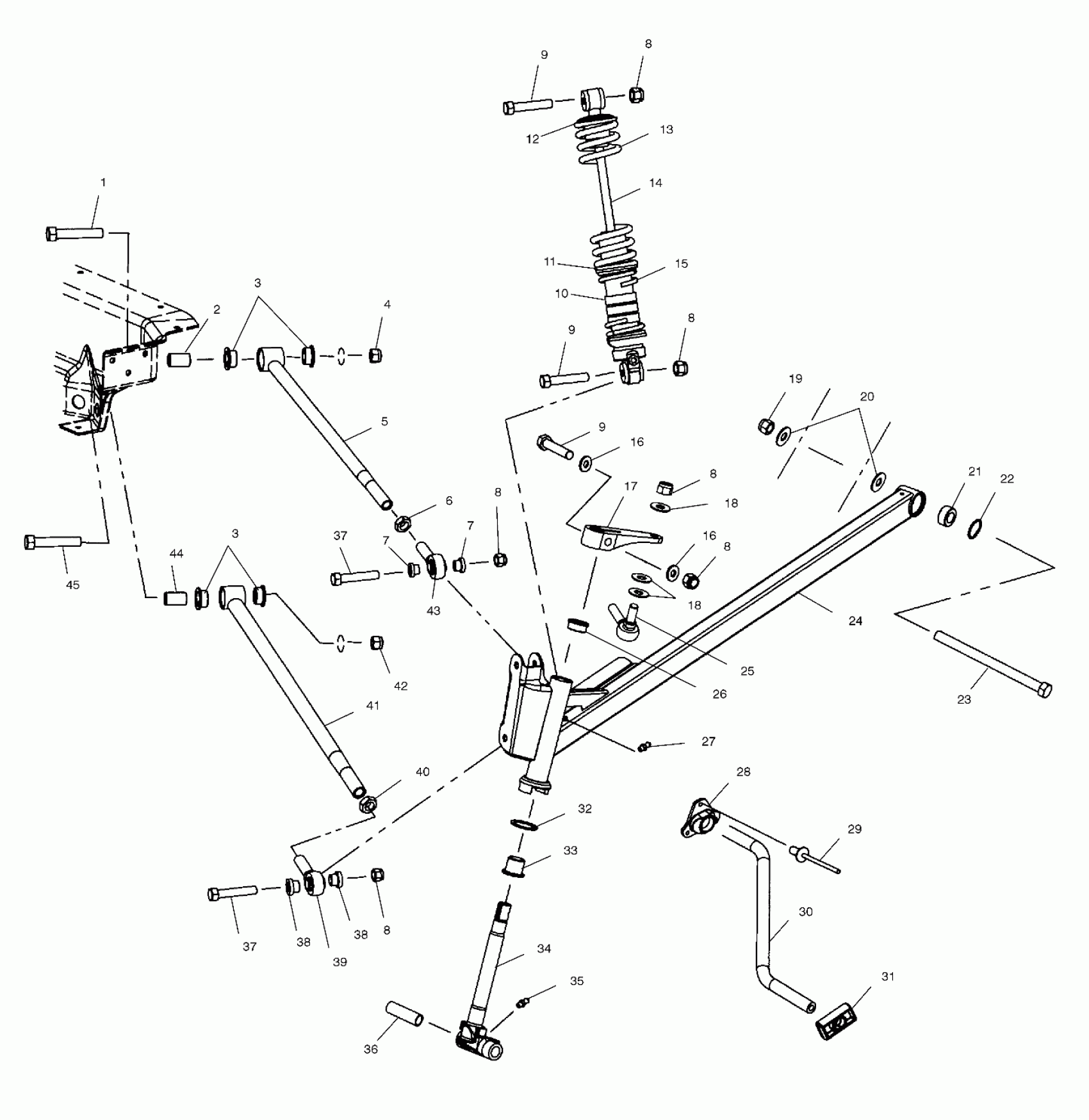

Polaris 440 XCR SP - 099NX4CS FRONT SUSPENSION - 099NX4CS (4953455345B001) Diagram

#

Description
Price

1

BOLT-7/16-20X2.75,HXCAP,GR5,Y

7512597

$4.99

2

BUSHING

5132078

$4.63

3

BUSHING,OUT.RAD.ROD PIVOT

5432918

$3.03

3

BUSHING,OUT.RAD.ROD PIVOT

5432918

$3.03

4

NUT-7/16-20,NYLOK,Y

7547066

$1.59

5

RADIUS ROD,UPPER,BLACK Substituted by 1820889-067

1820632-067

Unavailable

6

NUT JAM(10)

7542520

$2.39

7

BUSHING-REDUCER,.4375 TO .375

5132108

Unavailable

7

BUSHING-REDUCER,.4375 TO .375

5132108

Unavailable

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

9

BOLT Substituted by 7515491

7515433

$1.59

9

BOLT Substituted by 7515491

7515433

$1.59

9

BOLT Substituted by 7515491

7515433

$1.59

10

SPACER,SPRING COLLAR

5131741

Unavailable

11

SPACER,SPRING

5131742

Unavailable

12

RETAINER,SPRING,SLOTTED

5020618

$24.99

13

SPRING,COMP.235X900,200#

7041673-067

$51.59

14

SHOCK,GAS IFS

7041803

$287.74

15

SPRING,COMP.235X400,120#

7041699-067

$45.99

16

WSHR-.813X.406X.105-Y

7555832

$2.39

16

WSHR-.813X.406X.105-Y

7555832

$2.39

17

ARM,STEERING,MACH Substituted by 2201529

5131717

Unavailable

18

WASHER(10)

7555797

$3.99

18

WASHER(10)

7555797

$3.99

19

NUT, LOCK,(10)

7542503

$10.39

20

WASHER(10)

7555820

$3.99

21

BEARING-SPHERICAL,7/16,PLASTIC

7061042

$31.99

22

RING,RETAINING(10)

7710437

$3.19

23

BOLT

7512099

$19.99

24

TRAILING ARM,SVC,LH (Incl. 21,22)

1820962-293

Unavailable

24

TRAILING ARM,SVC,RH (Incl. 21,22)

1820963-293

Unavailable

25

ROD END-3/8,PL,75�,RH Substituted by 7061057

7061024

$48.56

26

BUSHING-FLANGE

3573909

$2.39

27

ZERK,FITTING,THREADED(10)

7080433

$1.49

28

BUSHING-TORSION BAR,5/8

5433233

Unavailable

29

RIVET,(50)

7621477

$1.19

30

TORSION BAR,TUBULAR 5/8,BLK

5243267-067

Unavailable

31

SLIDE-TORSION BAR 5/8

5433235

Unavailable

32

WASHER SPECIAL(10)

7556509

$1.59

33

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

34

SHAFT-SPINDLE,HARDENED,BLK

6230160-067

$134.99

35

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

36

BUSHING,PIVOT,(10)

5010158

$19.99

37

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

37

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

38

BUSHING-REDUCER,.50 TO .375

5132107

Unavailable

38

BUSHING-REDUCER,.50 TO .375

5132107

Unavailable

39

ROD END,RH,(1/2-20)XHD

7061007

Unavailable

40

NUT-JAM(10)

7542711

$2.39

41

RADIUS ROD,LOWER,BLACK Substituted by 1820890-067

1820634-067

Unavailable

42

NUT FLEX,(10)

7542703

Unavailable

43

ROD END,RH(7/16-20)XHD

7061006

$32.95

44

BUSHING-.505X.750X1.215

5132077

$4.63

45

BOLT(10)

7512684

Unavailable
