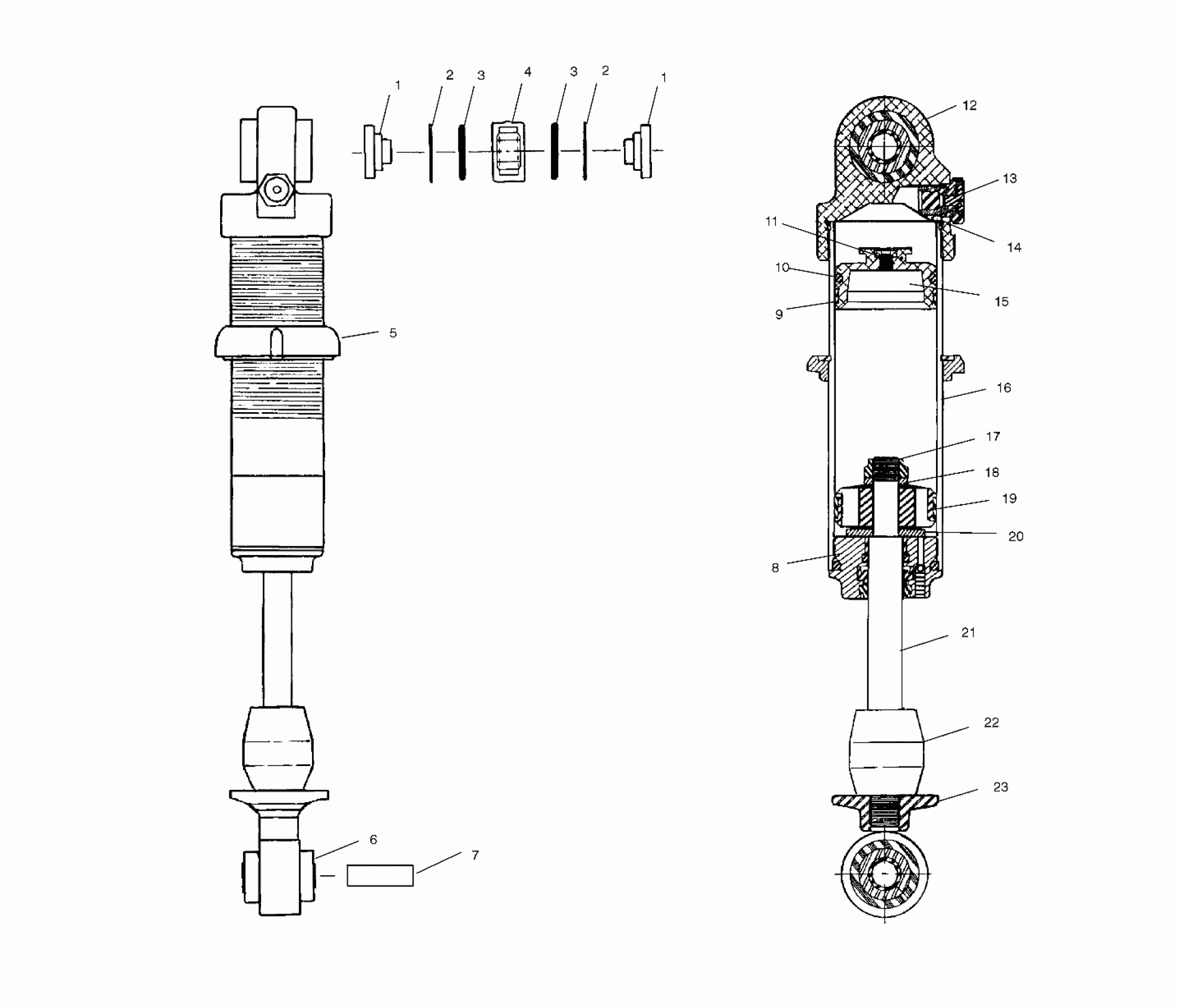

Polaris 440 XCR SP - 099NX4CS FOX SHOCK - IFS - 099NX4CS (4953455345C002) Diagram

#

Description
Price

-

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

-

SHOCK,GAS IFS

7041803

$287.74

1

REDUCER,(FOX),(SP)

1500092

Unavailable

1

REDUCER,(FOX),(SP)

1500092

Unavailable

2

RING,SNAP,(FOX SP)

7710446

$6.23

2

RING,SNAP,(FOX SP)

7710446

$6.23

3

O-RING,(FOX),SP

1500093

$7.27

3

O-RING,(FOX),SP

1500093

$7.27

4

BEARING,SPHERICAL

3513506

$64.59

5

RING,SPRING PRELOAD,ADJ

5432304

Unavailable

6

BUSHING,SHAFT END (.470)

5432041

Unavailable

7

SLEEVE,SHAFT END

5020808

Unavailable

8

O-RING,(10).103W-1.299ID

1500020

$10.63

8

O-RING INNER (10)

1500021

$10.99

8

Screw

1500070

$6.39

8

BALL, (FOX)

1500071

$6.76

8

WIPER INNER Substituted by 1500266

1500025

$24.27

8

WIPER,CLR,OUTER

1500024

Unavailable

8

BEARING ASM,(.900 W/BLEED)

1500090

Unavailable

9

RING,PISTON,FLOATING,FOX

1500006

$19.99

10

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

11

Screw

1500018

$5.56

11

O-RING,DRUM OUTER

1500022

Unavailable

12

CAP, BODY

1500073

Unavailable

13

VALVE ASM,AIR Substituted by 1500014

1500072

Unavailable

13

VALVE ASM,AIR

1500014

$69.99

13

Screw

1500019

$6.39

13

O-RING,OUTER

1500023

$2.84

14

O-RING,.103W-1.549ID

1500108

$10.99

15

PISTON-FLOATING

1500187

$26.98

16

BODY,IFS

1500245

Unavailable

17

NUT,LOCK

1500016

$12.79

18

BUSHING,BACKUP

1500015

$6.76

19

DAMPER,PISTONRING,FOX

1500002

$31.99

20

PLATE,TOP OUT

1500017

$20.22

21

SHAFT

1500246

Unavailable

22

BUMPER,JOUNCE

5410855

$39.19

23

EYELET, BILLET

1500129

Unavailable
