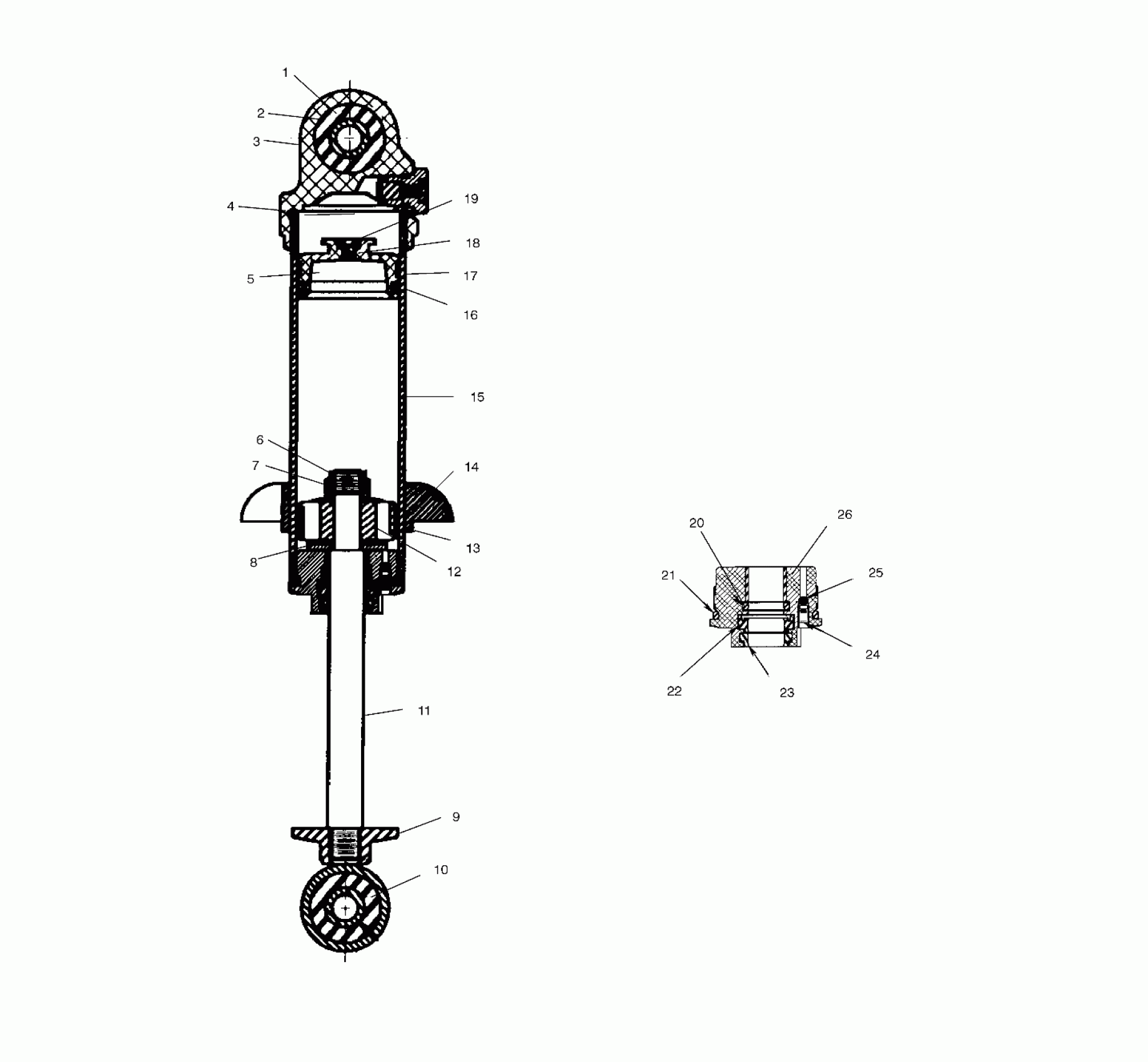

Polaris 440 XCR SP - 099NX4CS FOX SHOCK - FRONT TRACK - 099NX4CS (4953455345C003) Diagram

#

Description
Price

-

SHOCK-FRT TRACK

7041793

Unavailable

1

BUSHING-EYELET.35X.575X.595FOX

1500184

Unavailable

2

BUSHING, (1.24)

5020640

Unavailable

3

CAP, BODY

1500073

Unavailable

4

O-RING,.103W-1.549ID

1500108

$10.99

5

PISTON

1500011

$59.99

6

NUT,LOCK

1500016

$12.79

7

BUSHING,BACKUP

1500015

$6.76

8

PLATE,TOP OUT

1500017

$20.22

9

EYELET,BASE

1500164

$93.08

10

BUSHING,SHAFT END

5432041

Unavailable

11

Shaft

1500247

Unavailable

12

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

13

DAMPER,PISTONRING,FOX

1500002

$31.99

14

RETAINER SPRING

1500264

$42.29

15

BODY

1500248

$38.41

16

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

17

RING,PISTON,FLOATING,FOX

1500006

$19.99

18

O-RING,DRUM OUTER

1500022

Unavailable

19

Screw

1500018

$5.56

20

O-RING INNER (10)

1500021

$10.99

21

O-RING,(10).103W-1.299ID

1500020

$10.63

22

U-CUP-4300 URETH,036-01-006

1500266

$24.27

23

WIPER.-4300 URETH

1500268

Unavailable

24

Screw

1500070

$6.39

25

BALL, (FOX)

1500071

$6.76

26

BEARING ASM.498DIA,812-03-006

1500265

$71.43
