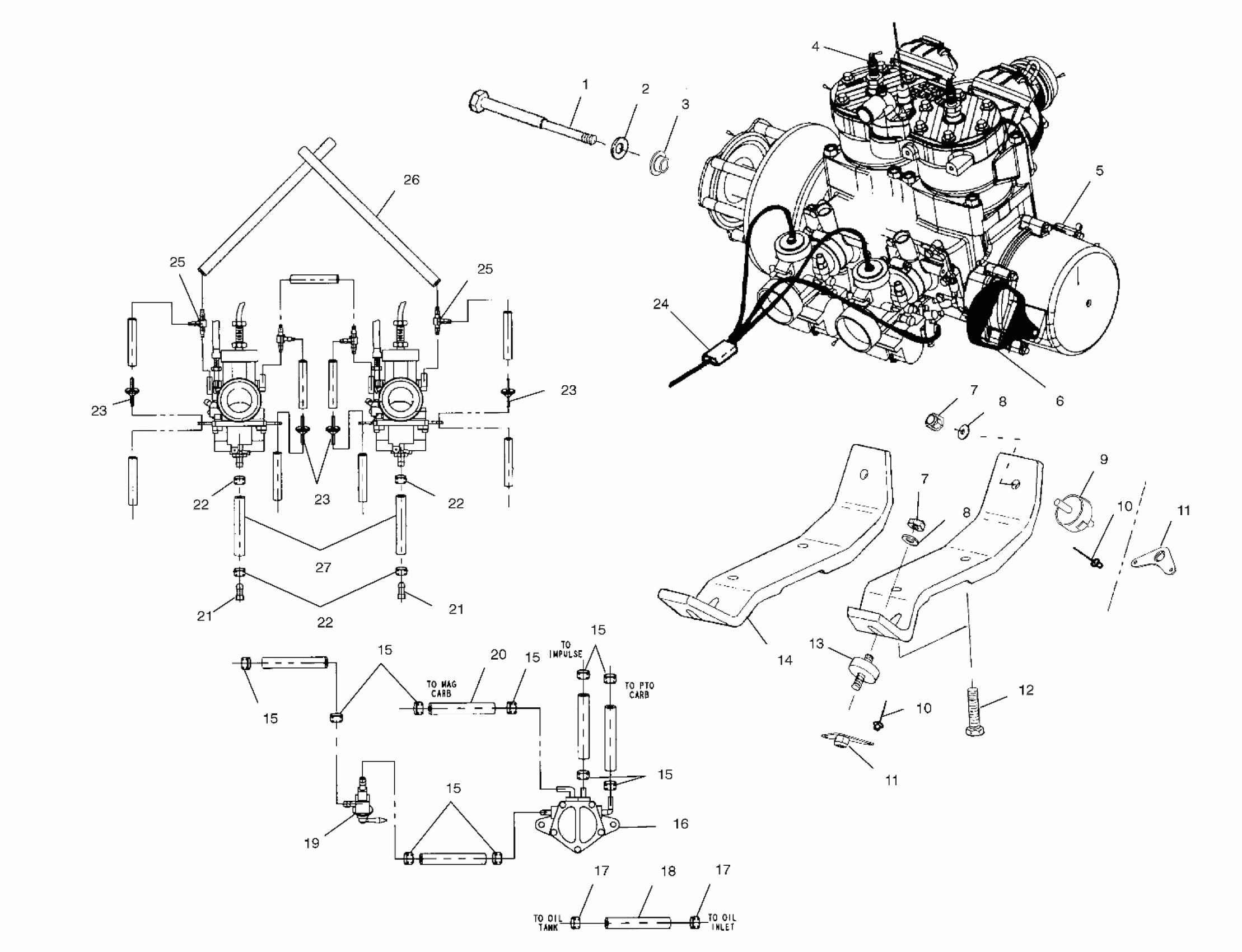

Polaris 440 XCR SP - 099NX4CS ENGINE MOUNTING - 099NX4CS (4953455345C006) Diagram

#

Description
Price

1

SCREW,M14X1.5X215

7517501

Unavailable

2

WASHER(10)

7556003

$6.39

3

WASHER,CLUTCH RET.

5131872

Unavailable

4

SPARKPLUG-RN57YC(3) Substituted by 3070190

30-701-84

Unavailable

5

KIT,S.B.,SN 44-44-00 [No Longer Available] (See Footnote) NOTE: The Short Block asm. contains a crankcase asm., cylinder and cylinder head asm., and a piston and crankshaft asm. Prior authorization is

2201509

Unavailable

6

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

9

MOUNT-ENGINE,3/8-16,3-TAB

3021097

Unavailable

10

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

10

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

11

NUT,PLATE,SUPPORT

1012680

Unavailable

11

NUT,PLATE,SUPPORT

1012680

Unavailable

12

Screw

7517399

$8.99

13

MOUNT-ENGINE,3/8-16,3-TAB

3021101

Unavailable

14

STRAP-ENGINE MOUNT 440 BASE,LH

5243414

Unavailable

14

STRAP-ENGINE MOUNT 440 BASE,RH

5243415

Unavailable

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

16

PUMP,FUEL,2 OUTLET

2520134

Unavailable

17

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

17

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

19

VALVE-FUEL,PLASTIC 90�,1/4HOSE

7052249

$24.27

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

21

PLUG,TRAP

5431893

$12.94

21

PLUG,TRAP

5431893

$12.94

22

CLAMP,SPRING,(10)

7080534

$1.59

22

CLAMP,SPRING,(10)

7080534

$1.59

22

CLAMP,SPRING,(10)

7080534

$1.59

23

VENT,CHECKVALVE

7051011

Unavailable

23

VENT,CHECKVALVE

7051011

Unavailable

23

VENT,CHECKVALVE

7051011

Unavailable

24

CABLE-THROTTLE,TWIN

7080847

Unavailable

25

FITTING, TEE,(10)

7052048

$3.99

25

FITTING, TEE,(10)

7052048

$3.99

26

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

27

FUEL LINE, 5 FT.

8450045-153

Unavailable
