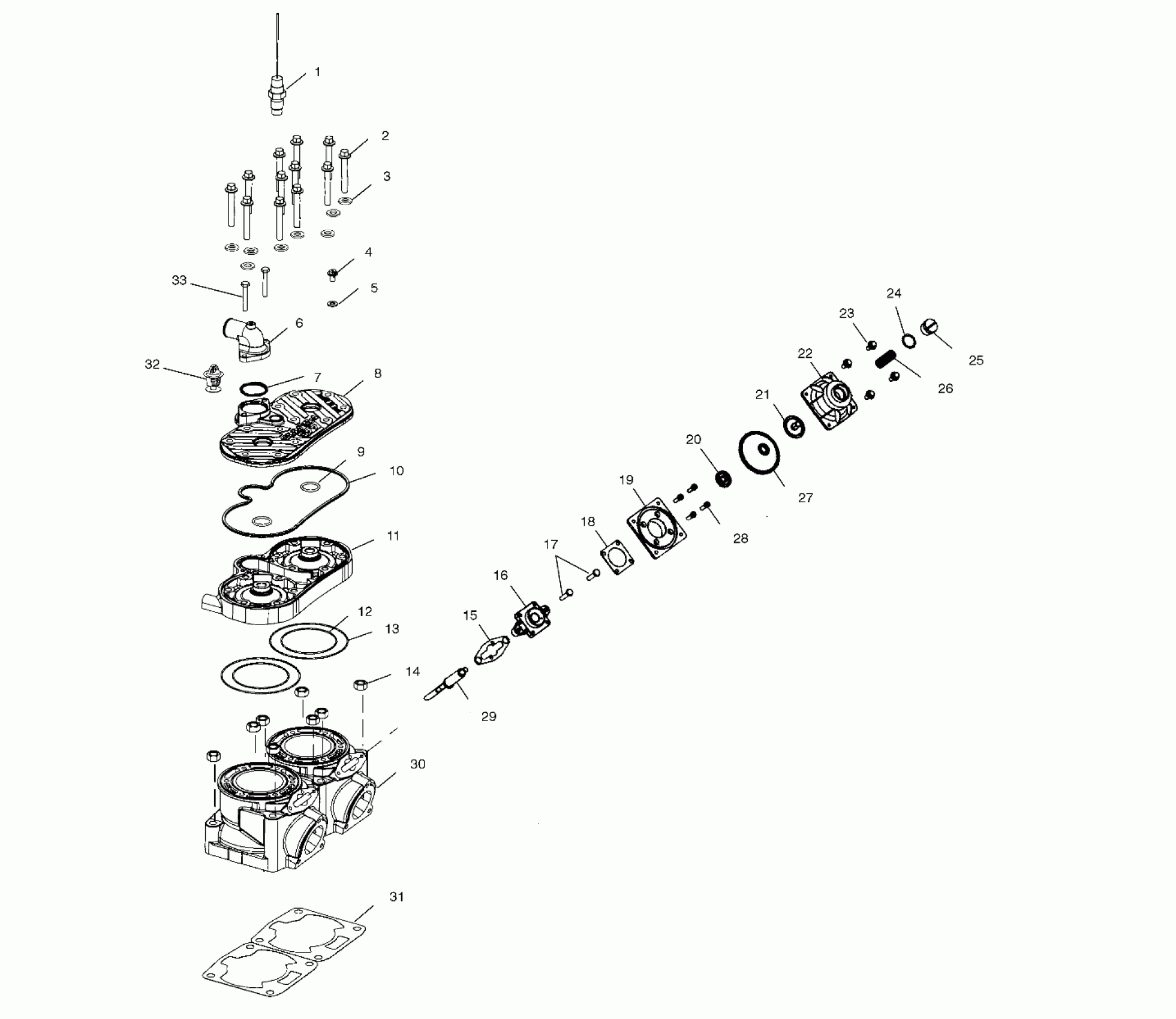

Polaris 440 XCR SP - 099NX4CS CYLINDER - 099NX4CS (4953455345C010) Diagram

#

Description
Price

1

SENSOR,TEMP,93 DEG.C.

4110254

Unavailable

2

SCREW(10)

7517281

$8.99

3

WASHER(10)

7556082

$7.19

4

SCREW,(10) Substituted by 7517565

7517266

$15.99

5

WASHER,FLAT,(10)

7555998

$1.49

6

COVER-THERMOSTAT,M-6,BLEED Substituted by 5630992

5630910

Unavailable

7

O-RING,LIPSEAL

5411521

$24.19

8

COVER-HEAD,66MM,SNOW,FIRE RED

5630985-093

Unavailable

9

O-RING

5411411

$1.49

10

SEAL,HD.CVR,MOLDED

5411182

Unavailable

11

HEAD,CYL,66MM

3021047

Unavailable

12

O-Ring

5411199

$10.51

13

O-RING

5411201

Unavailable

14

NUT(10)

7547013

$1.99

15

GASKET-GEN 3.5 EV BASE Substituted by 5812087

5811807

$9.99

16

ASM-EV 3.5 HSNG W/BUSH H.DOWEL

1201919

Unavailable

17

SCREW(10)

7516823

$3.19

18

GASKET,HOUSING EV

5433375

Unavailable

19

BELLOW ADP GEN 3.5 EV

5132187

Unavailable

20

Washer

3086124

$22.79

21

CAP,VALVE EXHAUST

3086118

Unavailable

22

COVER,VALVE EXHAUST

3086120

Unavailable

23

BOLT,FLANGE(10)

3086125

$2.39

24

O-Ring

3086126

$3.99

25

ADJUSTER,SPRING

3085744

Unavailable

26

SPRING-COMP,GEN 3.5EV,GRN/YLW

7041786-08

Unavailable

27

BELLOWS,VALVE,EXHAUST

3086119

Unavailable

28

SCREW(10)

7517314

Unavailable

29

VALVE,EXHAUST

5132190

$148.05

30

CYLINDER,66MM,W/LEV

3021075

$549.99

31

GASKET,CYL.BASE,66MM & 70.5MM

5811599

$34.99

32

THERMOSTAT 50� C Substituted by 7052267

7052252

$40.46

33

SCREW

7516818

$5.59
