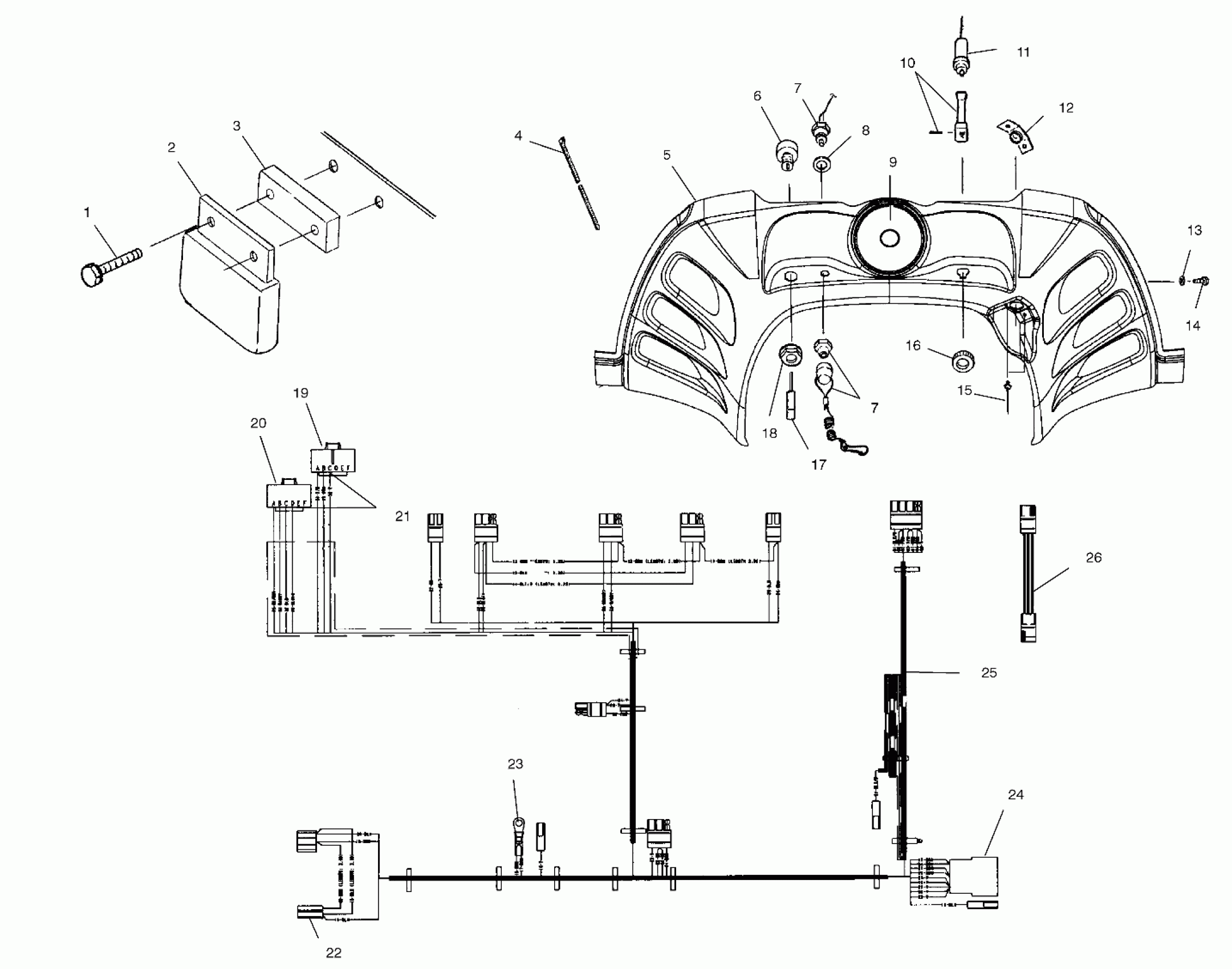

Polaris 440 XCR SP - 099NX4CS CONSOLE - 099NX4CS (4953455345A013) Diagram

#

Description
Price

1

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

2

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

3

SPACER,REGULATOR

5211573

Unavailable

4

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

CONSOLE-BASIC EDGE

5433242

Unavailable

6

KIT,IGN.SWITCH

2200358

$76.89

7

SWITCH-TETHER,HYBRID

4010187

Unavailable

7

SWITCH-TETHER,HYBRID

4010187

Unavailable

8

BUSHING, MACH.(10)

7558707

$4.79

9

FOAM-HANDLEBAR DONUT

5811809

Unavailable

10

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

11

CABLE-CHOKE,TM38,DUAL (Incl. 10,16)

7080753

Unavailable

12

GUIDE-RECOIL

5243049

$9.70

13

WASHER(10)

7558203

$3.19

14

SCREW(10)

7512057

$2.38

15

RIVET, POP(50)

7621330

$1.49

16

NUT,CHOKE

5432944

$8.79

17

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behin

5410611

Unavailable

18

NUT,IGNITION

7547035

$8.79

19

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

20

HOUSING-CONNECTOR,PAC#12064860

4010194

$15.99

21

SOCKET-PACKARD#12047767

4010192

Unavailable

22

HOUSING

4020063

$3.19

23

Terminal, Ring

4020092

Unavailable

24

Housing w/Receptacle

4020057

$3.51

25

HARNESS-MAIN WIRE,LO LEVEL Substituted by 2460733

2460703

$204.76

26

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67
