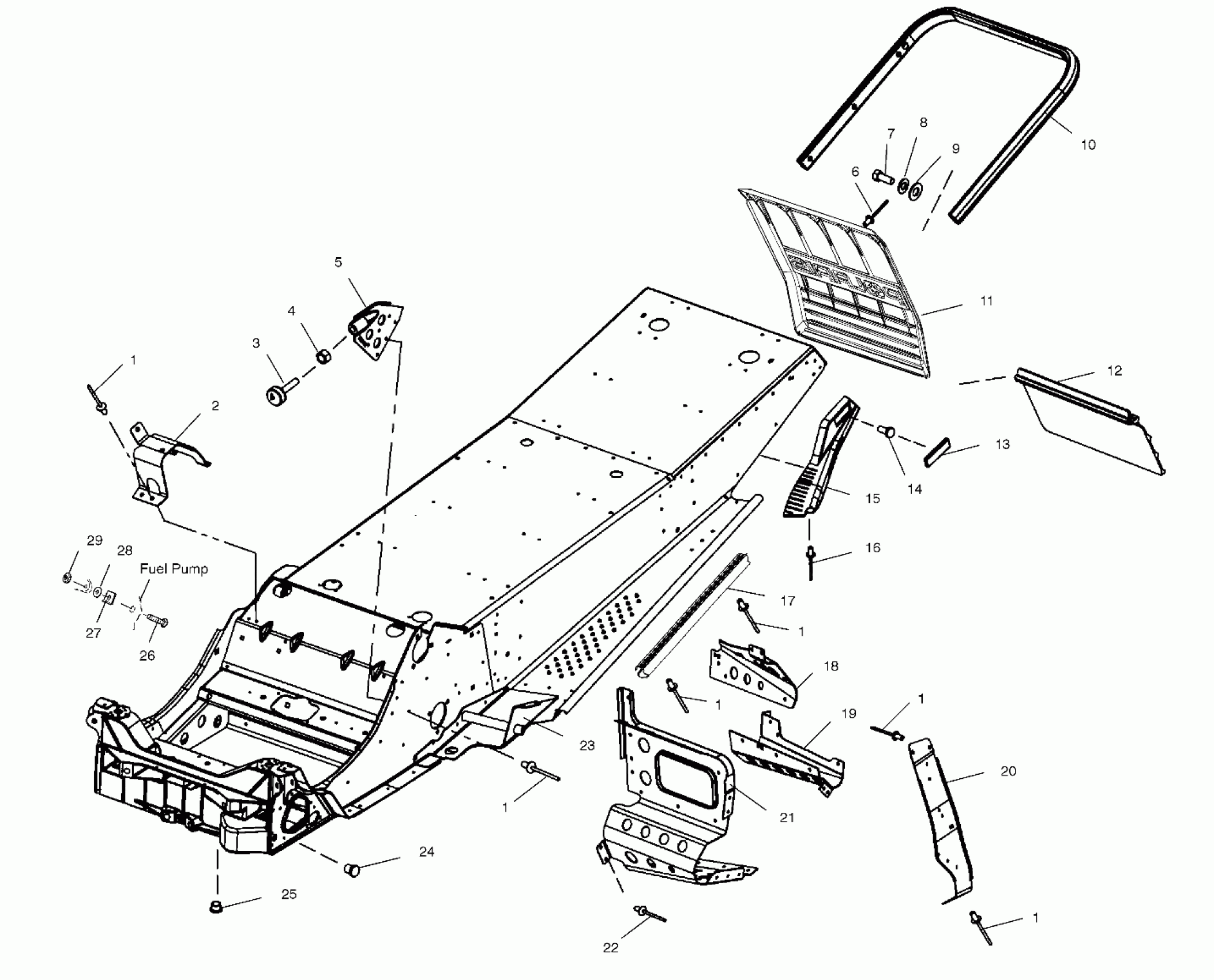

Polaris 440 XCR SP - 099NX4CS CHASSIS - 099NX4CS (4953455345A005) Diagram

#

Description
Price

-

TUNNEL,BULKHEAD,EDGE Substituted by 2201682

1012999

Unavailable

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

BRKT,JACKSHAFT SHIELD Substituted by 5245003

5243061

$13.10

3

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

4

NUT(10)

7542404

$1.59

5

STOP,TORQUE

1012697

Unavailable

6

POP RIVET(50)

7621418

$1.49

7

BOLT(10)

7512240

$3.99

8

LOCK WASHER(10)

7552801

$1.59

9

WASHER(10)

7558301

$1.49

10

BUMPER,REAR

2632078

Unavailable

11

FLAP,SNOW,RACER Substituted by 5433521

5433367

Unavailable

12

FLAP,EXTENSION

5521518

$36.31

13

REFLECTOR ASM,RED

2670133

$5.75

14

SCREW(10)

7512068

$2.39

15

SKIRT-SNOW,EDGE,LH Substituted by 5433519

5433357

$36.83

15

SKIRT-SNOW,EDGE,RH Substituted by 5433520

5433358

Unavailable

16

RIVET(50)

7621472

$1.49

17

GRIP,TUNNEL ROLL [No Longer Available]

5243522

Unavailable

18

MOUNT,CONSOLE,LH Substituted by 5243939

5243681

Unavailable

18

MOUNT,CONSOLE,RH Substituted by 5243940

5243682

Unavailable

19

FOOTREST UPPER-TOE CLIP,LH

5243153

$33.91

19

FOOTREST UPPER-TOE CLIP,RH

5243154

$38.71

20

SUPPORT-FOOTREST,LH

5242741

$19.68

20

SUPPORT-FOOTREST,RH

5242742

$32.37

21

Footrest, RH

5242740

Unavailable

21

FOOTREST, LH Substituted by 5245288

5242739

Unavailable

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

23

TRAILING ARM MNT,LH [No Longer Available]

1012913

Unavailable

23

TRAILING ARM MNT,RH [No Longer Available]

1012914

Unavailable

24

PLUG, HOLE(10)

7080416

$5.65

25

PLUG-HOLE

7080398

$4.84

26

BOLT-CARRIAGE(10)

7512275

$3.99

27

SPEED NUT(10)

7670021

$6.99

28

WASHER,NYLON

7555932

$2.39

29

NUT-LOCK(10)

7542122

$1.49
