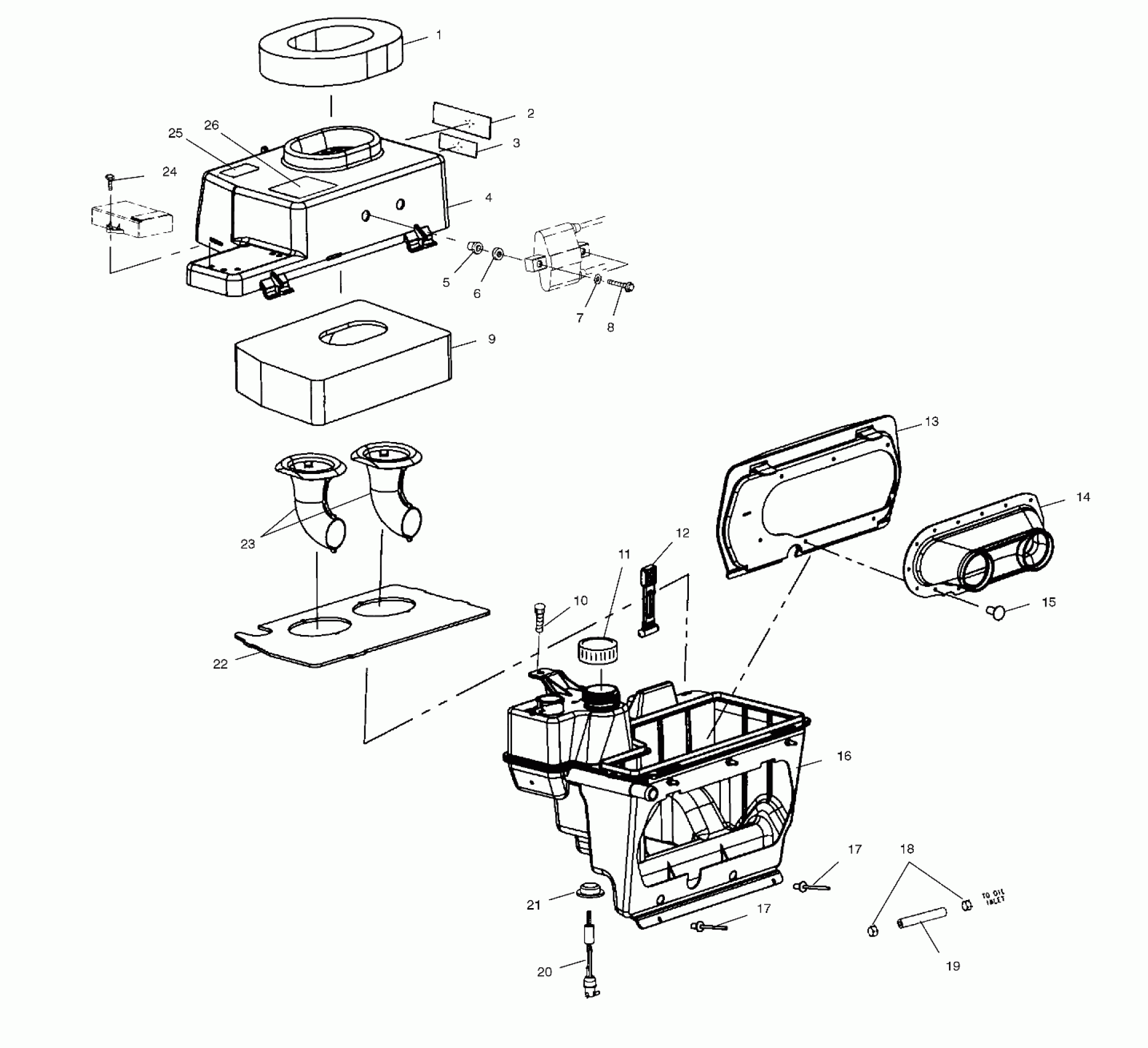

Polaris 440 XCR SP - 099NX4CS AIR BOX - 099NX4CS (4953455345C007) Diagram

#

Description
Price

1

FOAM,AIRBOX,CHIMNEY,EDGE

5811794

Unavailable

2

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

3

DECAL, GREASING [No Longer Available]

7073426

$7.27

4

COVER,AIRBOX

5433046

Unavailable

5

NUT

7547103

$8.79

6

WASHER,NYLON

7555932

$2.39

7

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

8

Screw

7517610

$1.59

9

FOAM,AIRBOX,TOP

5811766

Unavailable

10

BOLT(10)

7512232

$1.49

11

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

12

STRAP-AIRBOX TOP

5433150

$24.27

13

PLATE-CARB ADAPTOR 440,MOD

5433194

Unavailable

14

BOOT,CARB MOUNT,EDGE

5411678

$39.99

15

FASTENER, DART(10)

7080431

Unavailable

16

AIRBOX,OIL/COOLANT,WELD Substituted by 2202035

5433118

Unavailable

17

RIVET(50)

7621472

$1.49

17

RIVET(50)

7621472

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

20

FITTING-OIL SENDER

4010224

Unavailable

21

GROMMET-OIL SENDER Substituted by 7052305

7052247

$4.84

22

AIRBOX,OIL/WATER/PLENUM

5433043

Unavailable

23

VELOCITY,AIRBOX

5433302

Unavailable

24

SCREW(10)

7512095

$4.79

25

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

26

DECAL,CAUTION,AIRBOX

7075351

Unavailable
