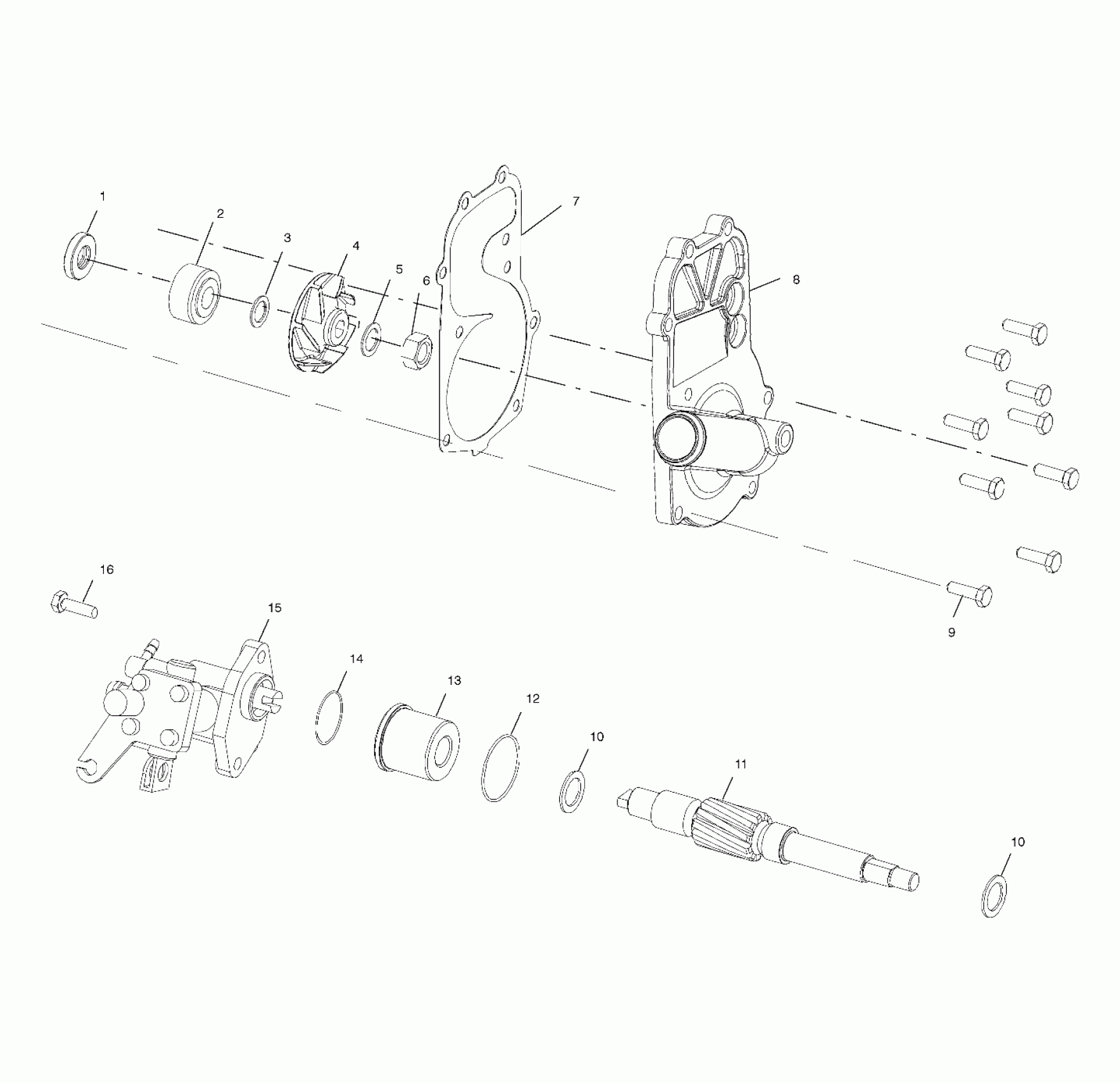

Polaris 440 XCR - 099SX4CS WATER PUMP/OIL PUMP - 099SX4CS (4948444844c009) Diagram

#

Description
Price

1

SEAL,TYPE S,ARS

5411197

$24.27

2

SEAL,WATERPUMP

3610067

$44.51

3

WASHER,FLAT,SS.(10)

7556006

$3.99

4

IMPELLER,WATERPUMP

5432330

$23.99

5

WASHER,FLAT,S.S.(10)

7555874

$2.39

6

NUT,HEX,(10)

7546804

$1.49

7

GASKET,WATERPUMP CVR.

5811601

$20.22

8

COVER,WATERPUMP,SNO.NO-BLEED

5630888

Unavailable

9

SCREW(10)

7516822

$2.39

10

WASHER,THRUST(10)

7555977

$7.19

10

WASHER,THRUST(10)

7555977

$7.19

11

DRIVESHAFT,WATER/OIL PUMP

5131855

Unavailable

12

O-Ring

5411196

$3.22

13

BRNG,PUMP SHAFT,FLANGED

5010391

Unavailable

14

O-Ring

5411293

Unavailable

15

PUMP ASM,OIL,4M136-01,SNO

2540051

Unavailable

16

SCREW(10)

7517277

$3.19
