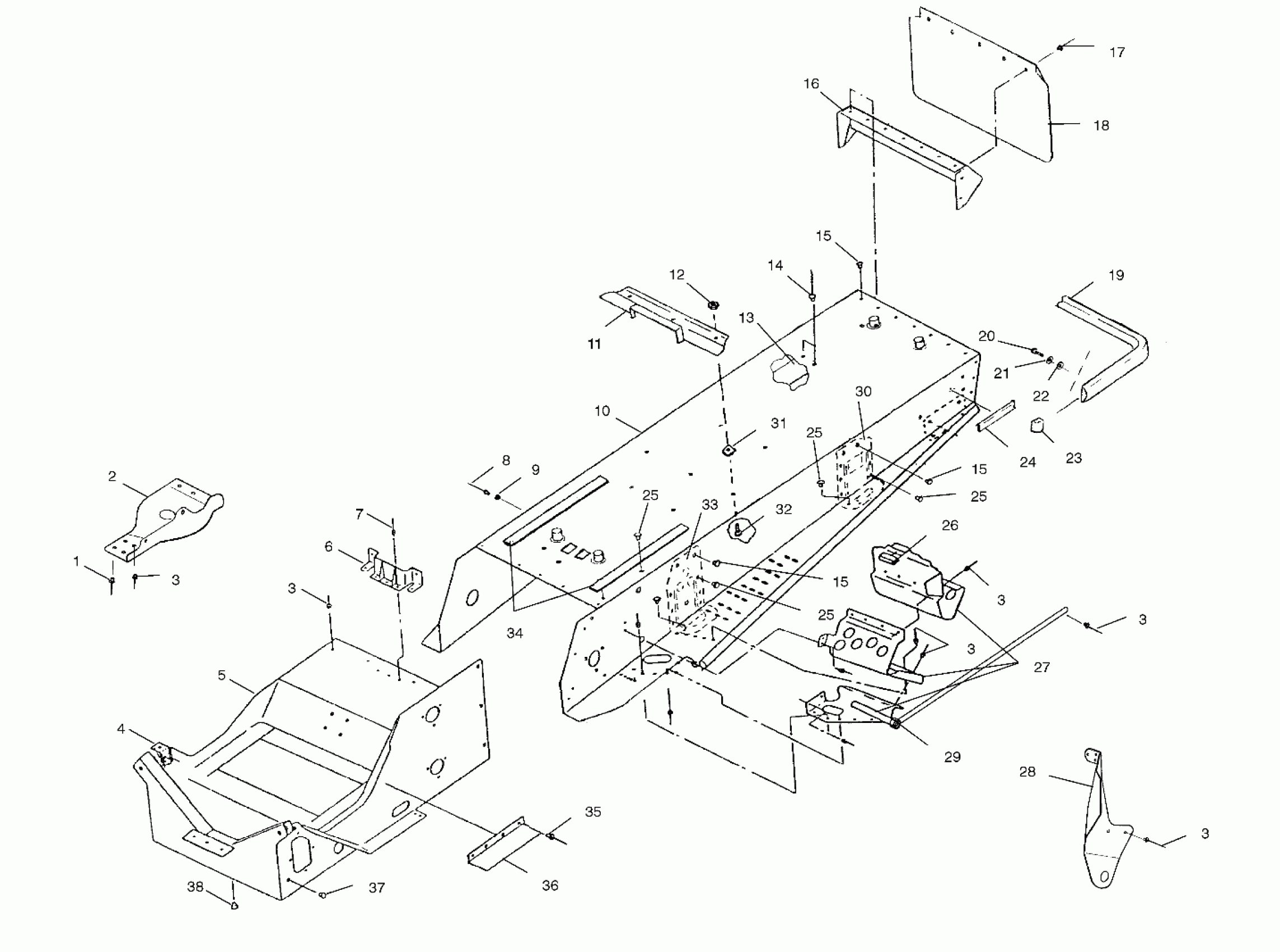

Polaris 440 XCR - 099SX4CS TUNNEL - 099SX4CS (4948444844a005) Diagram

#

Description
Price

1

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

2

GUARD,C/C.SUMP,TUNNEL Substituted by 5243419

5241915

$20.48

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

Bracket, Support, Muffler (See Footnote) (See Exhaust Sys. Pg. C6, Ref. 18)

-------

Unavailable

5

BULKHEAD,CRC,HYB,BLK. Substituted by 1013102-067

1012665-067

Unavailable

6

BRKT,GASTANK,WELD.

1011733-067

$19.73

7

RIVET(50)

7621301

$3.99

8

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

9

SNAP-MALE(10)

7080227

Unavailable

10

TUNNEL ASM,LIQ,X-10 (Incl. 16,30,33)

1012779

Unavailable

11

STRAP,GASTANK,BLK

1011732-067

Unavailable

12

NUT-LOCK(10)

7542122

$1.49

13

Cooler, Wear Strip (See Footnote) (See Cooling System Pg. B4, Ref.10)

-------

Unavailable

14

RIVET,3/16X.402(50)

7621432

$1.49

15

RIVET Substituted by 7661829

7661828

Unavailable

15

RIVET Substituted by 7661829

7661828

Unavailable

15

RIVET Substituted by 7661829

7661828

Unavailable

16

PANEL,TUNNELBACK,121,LW

5241946

Unavailable

17

POP RIVET(50)

7621418

$1.49

18

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

19

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

20

BOLT(10)

7512240

$3.99

21

LOCK WASHER(10)

7552801

$1.59

22

WASHER(10)

7558301

$1.49

23

CAP,BUMPER

5431995-070

Unavailable

24

REFLECTOR ASM,RED

2670133

$5.75

25

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

25

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

25

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

25

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

26

EXTRUSION,CLUTCHGUARD

5521238

$6.46

27

FOOTREST,LH,UNPAINTED

1012787

Unavailable

27

FOOTREST,RH,UNPAINTED

1012788

Unavailable

28

BRACE,LH,F'REST/TR.ARM MT.

5242494-067

$11.90

28

BRACE,RH,F'REST/TR.ARM MT.

5242495-067

Unavailable

29

SUPPORT,LH,TUNNEL,BLK

1012621-067

Unavailable

29

SUPPORT,RH,TUNNEL,BLK

1012622-067

$23.99

30

BRKT,LH,R.SUSP,BLK.

5241954-067

Unavailable

30

BRKT,RH,R.SUSP,BLK.

5241955-067

$22.23

31

SPEED NUT(10)

7670021

$6.99

32

BOLT(10)

7512193

$2.39

33

BRKT,LH,FR.SUSP.MTG,BLK.

5242612-067

Unavailable

33

BRKT,RH,FR.SUSP.MTG,BLK.

5242613-067

Unavailable

34

PAD-GAS TANK

5810063

$4.95

35

RIVET(50)

7621452

$1.49

36

GUARD,ADAPTER GUIDE

5222857

$12.94

37

PLUG, HOLE(10)

7080416

$5.65

38

PLUG-HOLE

7080398

$4.84
