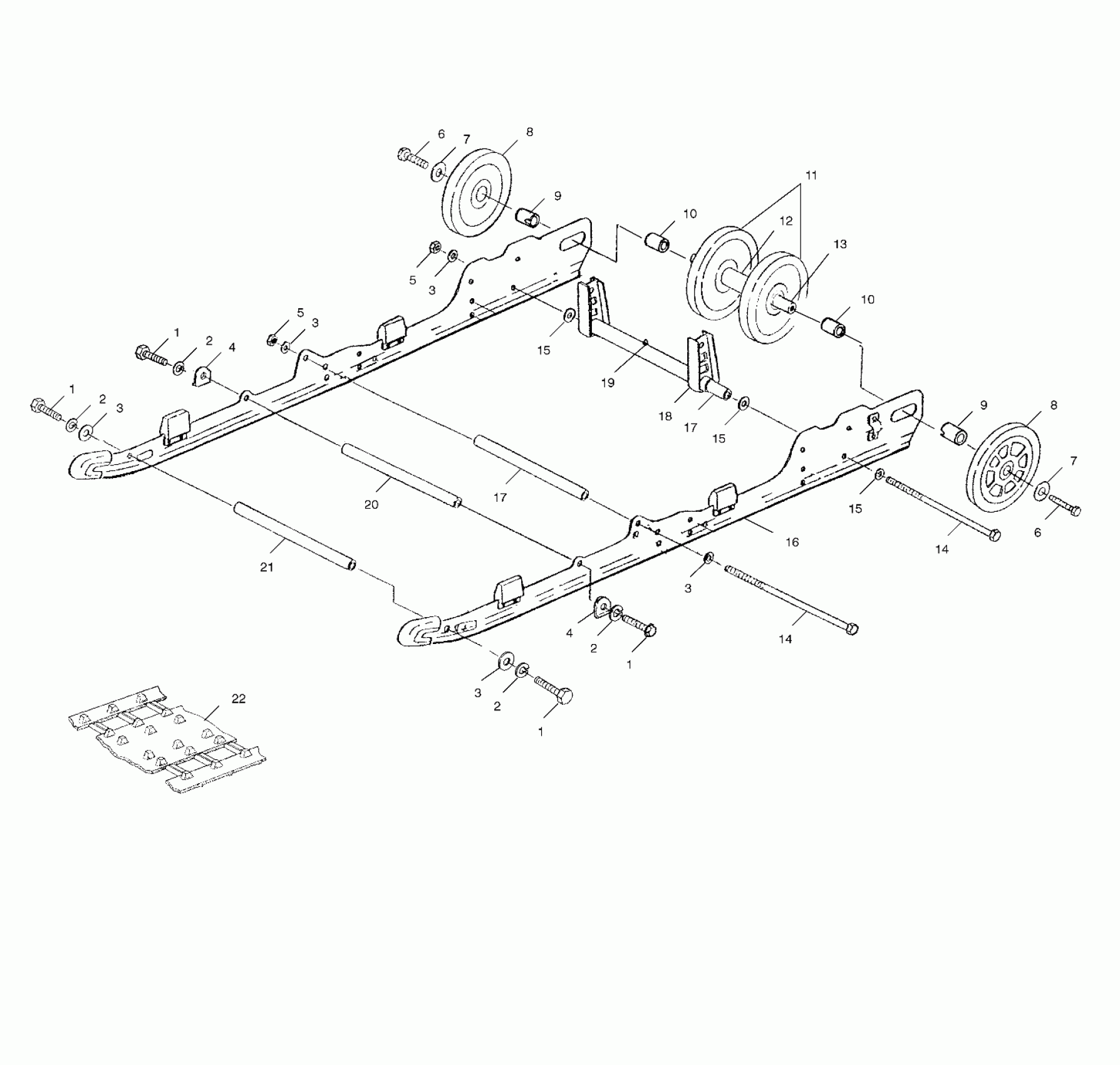

Polaris 440 XCR - 099SX4CS SUSPENSION - 099SX4CS (4948444844b010) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

6

BOLT(10)

7515526

$1.19

6

BOLT(10)

7515526

$1.19

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

8

BEARING,CHAINCASE

3514305

$19.99

8

RET.RING-TRUARC

7718407

$4.79

8

WHEEL ASM,SCRL,VIO.C

1590277-198

Unavailable

8

BEARING,CHAINCASE

3514305

$19.99

8

RET.RING-TRUARC

7718407

$4.79

8

WHEEL ASM,SCRL,VIO.C

1590277-198

Unavailable

9

SPACER-IDLER-OUTER

5332641

Unavailable

9

SPACER-IDLER-OUTER

5332641

Unavailable

10

SPACER INNER IDLER

5010169

Unavailable

10

SPACER INNER IDLER

5010169

Unavailable

11

WHEEL ASM.,W/INS.

1594078

Unavailable

12

SPACER CTR IDLER

5010168

Unavailable

13

SHAFT,IDLER

5020722

Unavailable

14

Screw

7517353

Unavailable

14

Screw

7517353

Unavailable

15

WASHER(10)

7555893

$1.49

15

WASHER(10)

7555893

$1.49

15

WASHER(10)

7555893

$1.49

16

SLIDER,WHITE Substituted by 5521452

5521405

$40.46

17

SHAFT

5333404

$24.27

17

SHAFT

5333404

$24.27

18

ARM,R.PIVOT

1540982-067

$38.05

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

20

SHAFT,PIVOT ARM

5020724

$29.99

21

SHAFT,PIVOT ARM

5020723

$29.99

22

Clip, Slide

5241473

$8.79

22

Clip, Guide

5241474

Unavailable

22

TRACK,121X15,.82,(LIGHTNING)

5411475

Unavailable
