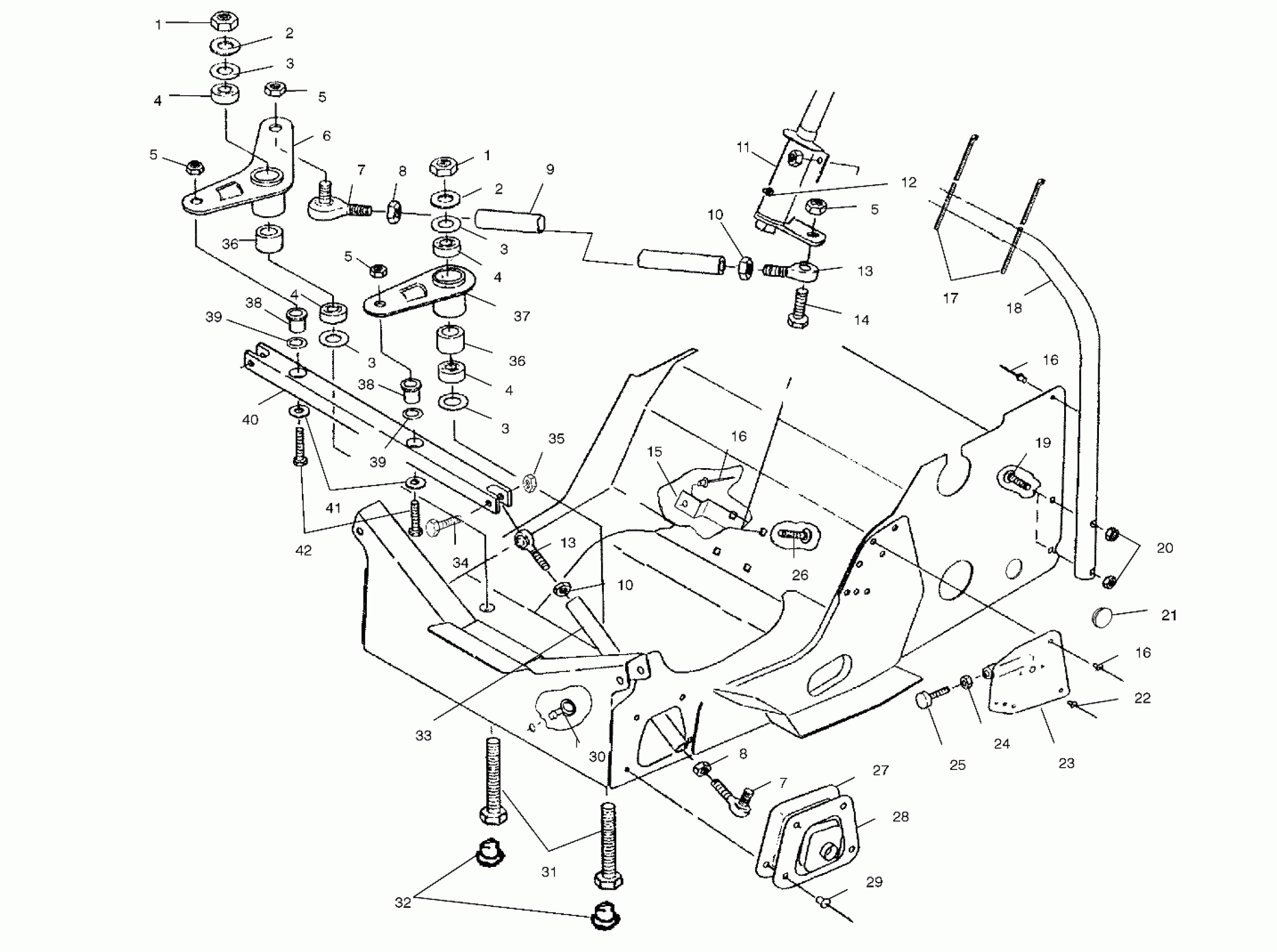

Polaris 440 XCR - 099SX4CS STEERING - 099SX4CS (4948444844b005) Diagram

#

Description
Price

1

NUT,FLEX LOCK(10)

7547029

Unavailable

1

NUT,FLEX LOCK(10)

7547029

Unavailable

2

WASHER(10)

7555721

$1.49

2

WASHER(10)

7555721

$1.49

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

4

BEARING-BALL, 600ILLU

3514320

$15.99

4

BEARING-BALL, 600ILLU

3514320

$15.99

4

BEARING-BALL, 600ILLU

3514320

$15.99

4

BEARING-BALL, 600ILLU

3514320

$15.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

6

ARM ASM,PITMAN (Incl. 4,36)

1820573

$61.99

7

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

7

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

8

NUT HEX(10)

7542401

$2.39

8

NUT HEX(10)

7542401

$2.39

9

ROD,DRAG LINK

5333408

$20.63

10

NUT

7542424

$1.49

10

NUT

7542424

$1.49

11

NUT FLEX-LOC(10)

7542303

$6.39

12

FITTING,LUB/VEN(10)

7080561

$4.79

13

ROD END,LH

7060166

$48.56

13

ROD END,LH

7060166

$48.56

14

BOLT(10)

7512404

$3.99

15

BRKT,BOLT RETAINER

5241997

$1.44

16

RIVET-3/16-.090-.290

7661637

$1.49

16

RIVET-3/16-.090-.290

7661637

$1.49

16

RIVET-3/16-.090-.290

7661637

$1.49

17

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

18

STEERING HOOP,BLK Substituted by 1013153-067

1012795-067

$41.59

19

BOLT-CARRIAGE(10)

7512275

$3.99

20

NUT, LOCK(10)

7542103

$5.59

21

PLUG

5410344

$5.65

22

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

23

TORQUE STOP SN44

1012854

Unavailable

24

NUT(10)

7542404

$1.59

25

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

26

BOLT,(10)

7517428

$2.39

27

BOOT,TIEROD,MOD

5411249

Unavailable

28

PLATE,BOOT,MOD

5211796-067

$31.35

29

POP RIVET(50)

7621323

$1.49

30

CLIP, PLASTIC(10)

4020139

$4.79

31

SCREW,(10)

7517402

$3.59

32

PLUG,HOLE(10)

7080689

$5.75

33

TIEROD, BLK

5020914-067

Unavailable

34

SCREW(10)

7515434

Unavailable

35

NUT LOCK(10)

7542411

$3.19

36

Bushing

5010417

$6.63

36

Bushing

5010417

$6.63

37

ARM ASM,IDLER (Incl. 4,36)

1820577

$74.27

38

TUBE,SPACER

5010384

Unavailable

38

TUBE,SPACER

5010384

Unavailable

39

O-RING

5411220

$6.46

39

O-RING

5411220

$6.46

40

RACK ASM,STEERING

1822467

Unavailable

41

WASHER(10)

7555893

$1.49

42

BOLT(10)

7515415

$1.49
