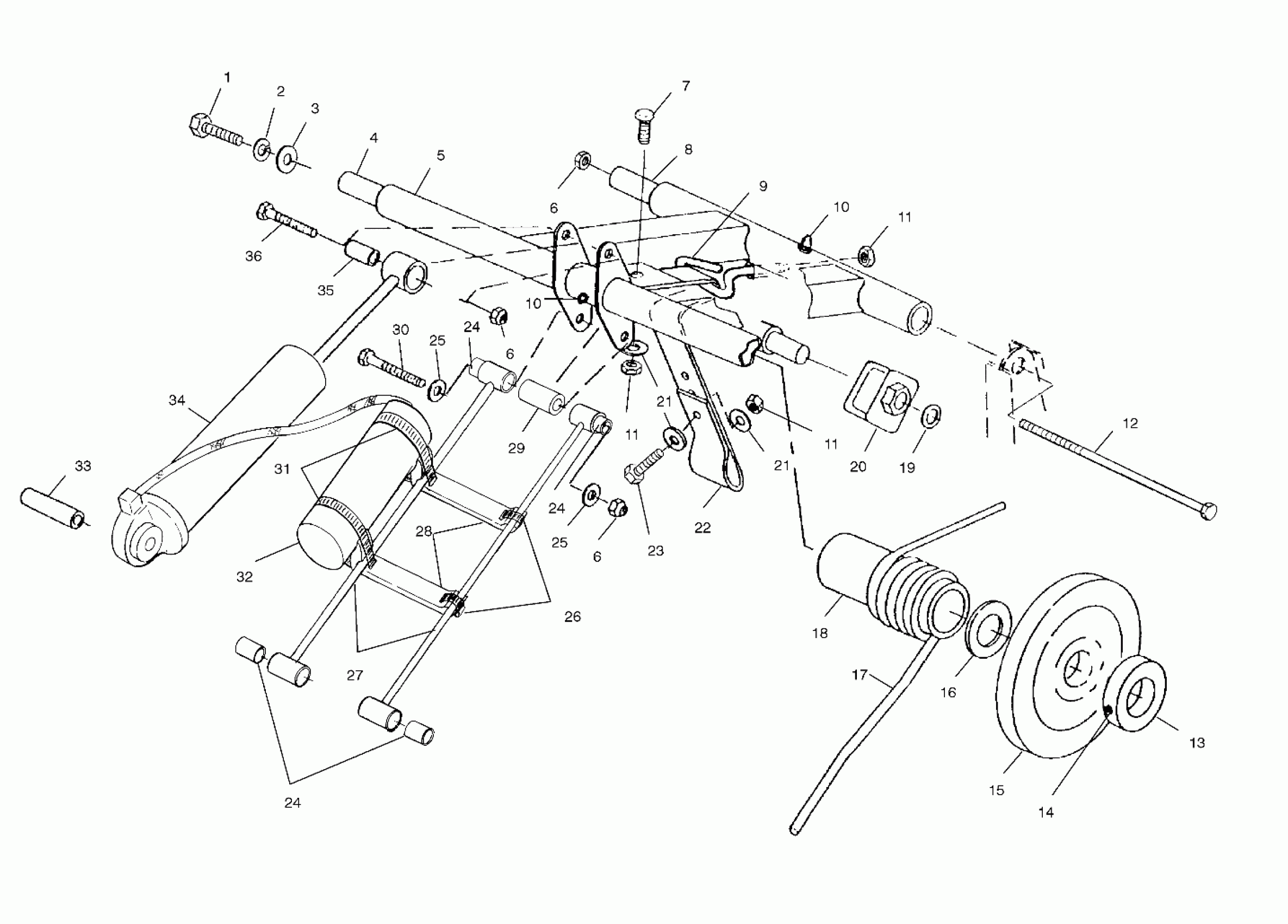

Polaris 440 XCR - 099SX4CS REAR TORQUE ARM - 099SX4CS (4948444844b012) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

SHAFT,R.TORQUE,UPPER

5131910

$89.03

5

ARM,R.TORQUE,BLK.

1541290-067

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

BOLT(10)

7512377

$4.79

8

Shaft

5333536

Unavailable

9

BOLT,EYE

7010050

Unavailable

10

ZERK,FITTING,THREADED(10)

7080433

$1.49

10

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

Screw

7517232

$19.99

13

COLLAR,BRG.LOCK

5131911

$16.47

14

SCREW-SET(10)

7512257

$3.99

15

BEARING,CHAINCASE

3514305

$19.99

15

RET.RING-TRUARC

7718407

$4.79

15

Wheel, Carrier

1543023

Unavailable

16

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

17

SPRING,LH,TORSION,BLK. (.359) Std.

7041629-067

Unavailable

17

SPRING,RH,TORSION,BLK. (.359) Std.

7041630-067

Unavailable

17

SPRING-TORSION,.375/77�,LH,BLK (.375) Opt.

7041631-067

$140.38

17

SPRING-TORSION,.375/77�,RH,BLK (.375) Opt.

7041632-067

$140.38

17

SPRING-TORSION,.347SQ/77�LHBLK (.347) Opt.

7041627-067

$135.54

17

SPRING-TORSION,.347/77�,RH,BLK (.347) Opt.

7041628-067

$135.54

18

SLEEVE,TORS.SPRING

5433007

Unavailable

19

CLIP-PUSH ON

7080394

$2.39

20

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

21

WASHER(10)

7555716

$1.59

21

WASHER(10)

7555716

$1.59

22

STRAP,LIMITER

5411061

Unavailable

23

SCREW(10)

7512310

$2.39

24

BUSHING,PIVOT TUBE

5020561

$1.59

24

BUSHING,PIVOT TUBE

5020561

$1.59

24

BUSHING,PIVOT TUBE

5020561

$1.59

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

26

CLAMP, HOSE, S.S.

7080480

Unavailable

27

ROD,SHOCK

1541015-067

Unavailable

28

MOUNT,RESERVOIR

5131575

Unavailable

29

Spacer

5333559

Unavailable

30

BOLT(10)

7515472

$2.39

31

CLAMP,HOSE,SS,(10)

7080681

$9.59

32

Asm., Reservoir (See Footnote) (See Fox Shock - Rear Track and Reservoir Pg. C3, Ref.30)

-------

Unavailable

33

BUSHING, 1.40

5020657

$15.99

34

Shock, Track Rear (See Footnote) (See Fox Shock - Rear Track and Reservoir Pg. C3 for Details)

-------

Unavailable

35

BUSHING

5010422

$11.99

36

BOLT(10) Substituted by 7515492

7512410

Unavailable
