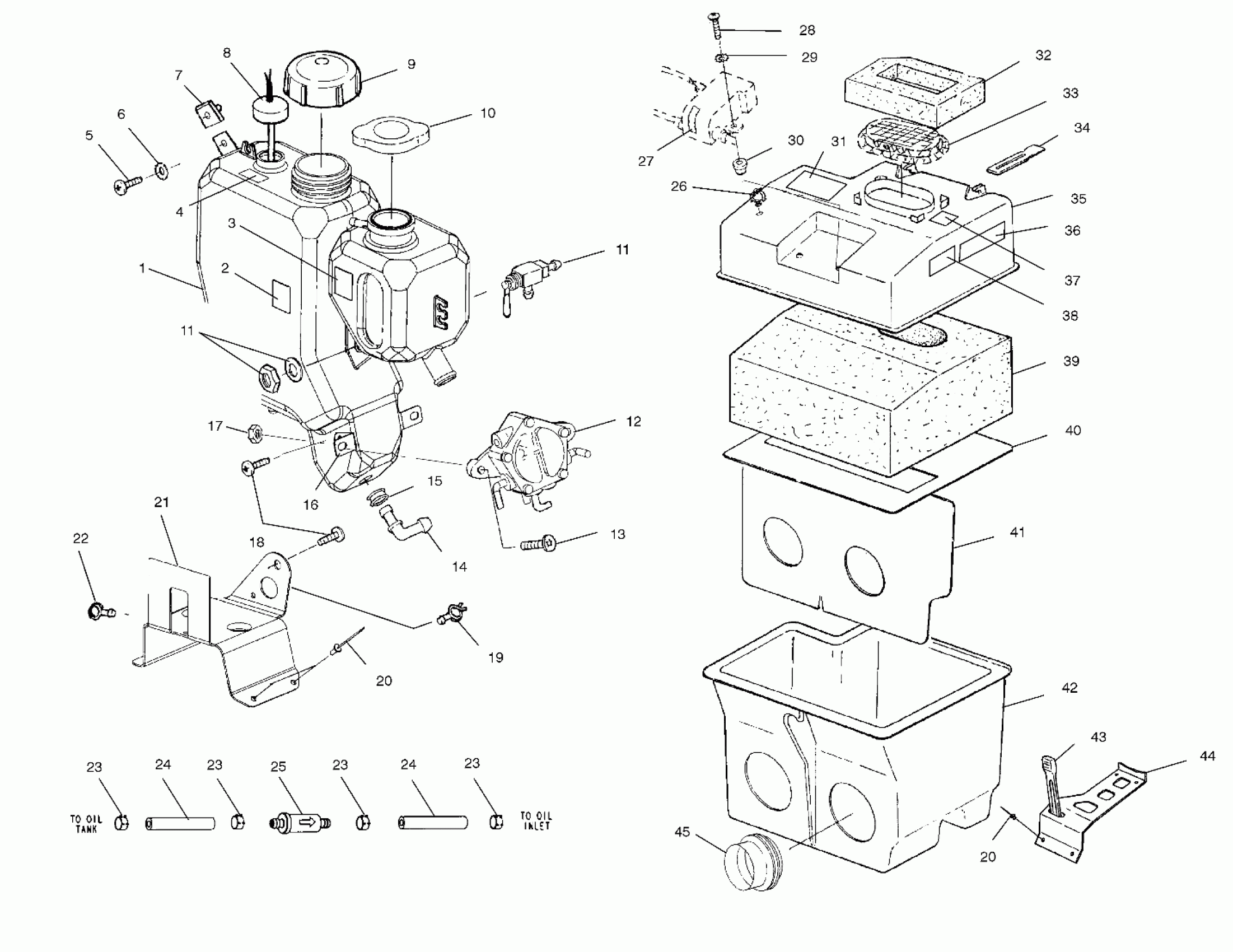

Polaris 440 XCR - 099SX4CS OIL TANK/AIR BOX - 099SX4CS (4948444844c005) Diagram

#

Description
Price

1

TANK,OIL/COOLANT COMBO. Substituted by 2201437

5432749

Unavailable

2

DECAL,FUEL SHUT-OFF

7077442

Unavailable

3

DECAL-SURGE TANK,"FULL COLD"

7078147

Unavailable

4

DECAL,OIL,VES

7077444

Unavailable

5

BOLT(10)

7512276

$4.79

6

WASHER,WROUGHT(10)

7558302

$1.59

7

Nut

7670096

$1.59

8

SENSOR,OIL LEVEL

4110134

$72.84

9

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

10

CAP, PRESSURE,(13 LB)

2511270

$24.27

11

Valve, Fuel (See Footnote) (See Engine Mounting Pg. C4, Ref. 21)

-------

Unavailable

11

Valve, Fuel (See Footnote) (See Engine Mounting Pg. C4, Ref. 21)

-------

Unavailable

12

Pump, Fuel (See Footnote) (See Engine Mounting Pg. C4, Ref. 20)

-------

Unavailable

13

SCREW,(10)

7517455

$8.99

14

FTTNG,90 D.PRESS-ON

7052208

$6.39

15

GROMMET-TANK FITTING(10)

7052028

$6.39

16

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

17

NUT-LOCK(10)

7542122

$1.49

18

SCREW(10)

7517615

$3.19

19

CLIP,TWIST LOCK

7080745

$2.23

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

21

BRKT,OIL/COOL.TANK,ALUM

5242688

Unavailable

22

CLIP, PLASTIC(10)

4020139

$4.79

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

26

CLIP,SILENCER,(10)

7670102

$2.39

27

DECAL,SPARKPLUG REC.

7077026

$2.95

28

SCREW(10)

7512279

$1.49

29

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

30

NUT-WELL(10)

7541923

$5.59

31

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

32

FOAM,AIRBOX,CHIMNEY,HYB.

5811606

Unavailable

33

MESH-WIRE,FORMED

5243219

Unavailable

34

RETAINER-TAB,(10)

5411075

Unavailable

35

TOP,SILEN.INTAKE

5432828

$66.99

36

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

37

DECAL,CAUTION,AIRBOX

7075351

Unavailable

38

DECAL, GREASING [No Longer Available]

7073426

$7.27

39

FOAM,AIRBOX,TOP,INTERNAL

5811564

Unavailable

40

PLATE,SILENCER INTAKE

5850134

Unavailable

41

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

42

SILENCER,INTAKE,DRILLED

5432592

Unavailable

43

STRAP,TIE-DOWN

5411129

$8.89

44

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable

45

BOOT,CARB,34MM

5411295

Unavailable
