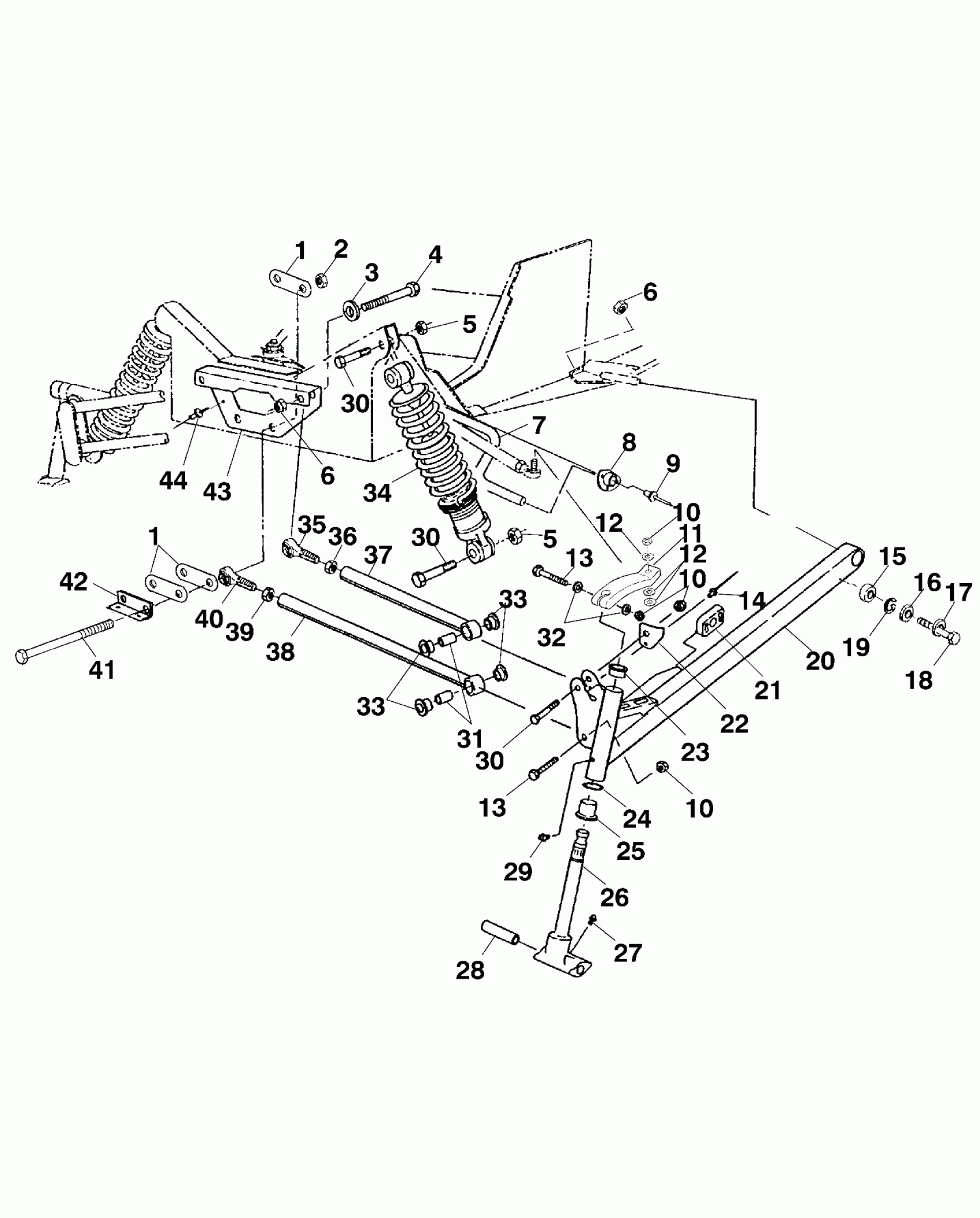

Polaris 440 XCR - 099SX4CS FRONT SUSPENSION - 099SX4CS (4948444844b001) Diagram

#

Description
Price

1

STRAP,SPACER BOTTOM

5211345

$12.99

1

STRAP,SPACER BOTTOM

5211345

$12.99

2

NUT FLEX,(10)

7542703

Unavailable

3

WASHER THRUST(10)

7558702

$1.59

4

BOLT(10)

7512551

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

NUT, LOCK,(10)

7542503

$10.39

6

NUT, LOCK,(10)

7542503

$10.39

7

BAR,TORSION,TUBULAR,5/8,BLK

5242816-067

Unavailable

8

BUSHING,SWAY BAR

5432038

$19.99

9

RIVET,(50)

7621477

$1.19

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

11

ARM,LH,STRG,ALUM.

5131739

$161.89

11

ARM,RH,STRG,ALUM.

5131740

Unavailable

12

WASHER(10)

7555797

$3.99

12

WASHER(10)

7555797

$3.99

13

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

13

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

14

RIVET(50) Substituted by 7661130

7661643

Unavailable

15

BRG,SPHERICAL,7/16 Substituted by 7061042

7061016

Unavailable

16

FOAM TRAILING ARM MOUNT

5811629

Unavailable

17

WASHER(10)

7555801

$3.99

18

BOLT(10)

7512579

Unavailable

19

RING,RETAINING(10)

7710437

$3.19

20

ARM,TRLG,RH Substituted by 1820779 (Incl. 15,19)

1822463

Unavailable

20

ARM,TRLG,LH Substituted by 1820713-067 (Incl. 15,19)

1822462

Unavailable

21

SLIDE,SWAYBAR,5/8

5432561

$24.27

22

STOP,STRG,LH.

5242017-067

$13.89

22

STOP,STRG,RH.

5242018-067

$13.10

23

BUSHING-FLANGE

3573909

$2.39

24

WASHER SPECIAL(10)

7556509

$1.59

25

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

26

SPINDLE,SHAFT,HARD.

6230099-067

Unavailable

27

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

28

BUSHING,PIVOT,(10)

5010158

$19.99

29

ZERK,FITTING,THREADED(10)

7080433

$1.49

30

BOLT(10)

7515415

$1.49

30

BOLT(10)

7515415

$1.49

30

BOLT(10)

7515415

$1.49

31

BUSHING-RADIUS ROD,(10)

5010127

$7.99

32

WSHR-.813X.406X.105-Y

7555832

$2.39

33

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

33

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

34

RETAINER,SPRING,SLOTTED

5020618

$24.99

34

SPRING,COMP,BLK

7041489-067

Unavailable

34

Fox Shock - IFS (See Footnote) (See Fox Shock - IFS Pg. C1 for Details)

-------

Unavailable

35

ROD END,RH(7/16-20)XHD

7061006

$32.95

36

NUT JAM(10)

7542520

$2.39

37

ROD,RAD,UPPER,BLK. Substituted by 1820588-067

1822475-067

Unavailable

38

ROD,RAD,LOWER,BLK Substituted by 1820584-067

1822474-067

Unavailable

39

NUT-JAM(10)

7542711

$2.39

40

ROD END,RH,(1/2-20)XHD

7061007

Unavailable

41

BOLT(10)

7512684

Unavailable

42

BRKT,RAD.ROD,BTM.

5242578

$44.99

43

BRACE,BULKHEAD,FRONT,BLK

1012575-067

$23.99

44

RIVET-3/16-.090-.290

7661637

$1.49
